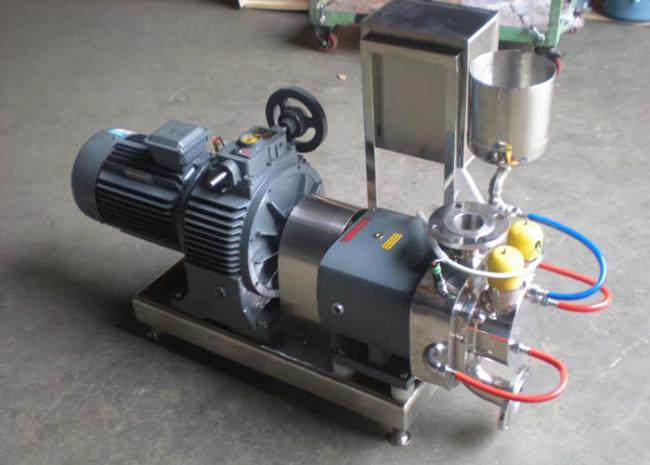

SS304 / SS316 Food Grade Pump 3RP Health Level Cam Double Rotor Pump
Stainless steel rotor food grade pump 3rp health level cam double rotor pump
Application of stainless steel rotor pump
Lobe Pump ( rotor pump, rotary pump) is widely used to transfer various special material, stiff material, mixture with different specific gravity, corrosive material and material with large powder. Such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.
Driving system
step-less variator +motor. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Gear reducer + motor: the driving is easy with constant rotary speed of the rotor,which also leads to nonadjustablity of flow.
Frequency transformed motor + transducer: it realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
| Working Principle: | Double rotors |
| Main applications: | Oil, food, colloid |
| Driver: | Electric motor |
| Power Specs: | 220V,240V,380V,400V,415V,440V 50hz/60hz |
| Max.permissible fluid temperature: | 100°C(212°F) / 200°C(392°F)-water cool type |
| Type of connection: | Quick clamp, Flange, Thread, SMS, Barb, Square port |
| Position of inlet/outlet: | Horizontal or Vertical |
| Casing/Inner parts material: | SS304, SS316L |
| Shaft seal type: | Mechanical seal |
| Maximum viscosity: | 1×106 C.S.T |
| Maximum drive rating: | 30kW(40HP) |
| Maximum caliber: | 125mm(5inch) |
| Maximum discharge-side pressure: | 1.6MPa(16bar) |
| Suction pressure | 0.08Mpa(0.8bar) |
| Flow rate range: | 0.3-72m3/h(1.3-316.8US.GPM) |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Packaging & Shipping
Wooden box ,shipping by sea or air.
Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
