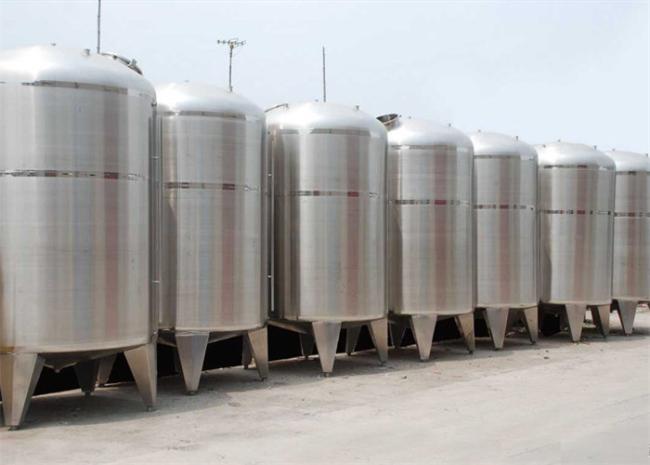

304 316 Stainless Steel Mixing Tanks 100L10000L Capacity Ex Proof Motor
304 316 Stainless Steel Mixing Tanks 100L10000L Capacity Ex Proof Motor
1. Introduction of Stainless Steel Mixing Tank :
1, Available volume: 50-75000L;
2, Construction material: stainless steel 304 / 316L or mild steel Q235
(special materials like wear-resistant and anti-corrosion materials available);
3, Discharge valve: pneumatic or manual; ball valve / butterfly val ve (can be customized);
4, Can be with stand or platform;
5, Ex-proof available;
6, Mixing agitators can be turbine type, propeller type, brooking-makin type, gear type, screw type, anchor type,
frame type, ribbon type etc;;
7, Heating /cooling or thermal insulation jacket;
8, Can be with round / flat top and round / conical bottom;
9, Surface treatment: paint for mild steel, polish / sandblasting / wire drawing for stainless steel;
(special treatment like wear-resistant and anti-corrosion treatment available);
10,Customized features: e.g. light glass, scrapper, level gauge;
2. Technical Parameter :
| Model | 30L | 50L | 100L | 200L | 500L | 1000L | 2000L | 3000L | 5000L | 10000L | 50000L |
| Diameter mm | 300 | 300 | 400 | 500 | 700 | 900 | 1200 | 1300 | 1500 | 1800 | 3100 |
| Height mm | 1600 | 1700 | 2000 | 2300 | 2600 | 3000 | 3800 | 4300 | 4500 | 5300 | 8000 |
| Filling capacity | 65%-80% | ||||||||||
| Inside Pressure Mpa |
-0.1---5 | ||||||||||
| Jacket pressure Mpa | -0.1---5 | ||||||||||
| Cool method | By jacket | By pipe | |||||||||
| Mix speed rpm | 0--300 | ||||||||||
| Motor Power kw |
0.55 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 13 | 55 |
