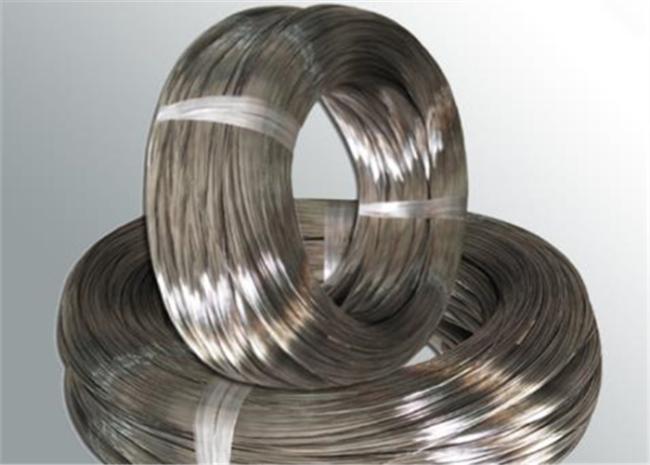

AISI DIN Stainless Steel Coil Wire Corrosion Resistance Matt Surface Bright
SS 304 316 304L 316L stainless steel wire for welding wire
Description:
Material: 304.304L.310S.316.316L.321.430.430A.309S.2205.2507.2520.
Standard :GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface bright,matt ,electrolysis bright, matt, downy, mesh,belt,bright fnished
Specification:
| AISI Material | Chemical Composition | ||||||||
| Compsition | C Max | Si Max | Mn Max | P Max | S Max | Ni | Cr | Mo | Cu |
| 304 | 0.08 | 1 | 2 | 0.035 | 0.03 | 8-10 | 17-19 | - | - |
| 304L | 0.03 | 1 | 2 | 0.04 | 0.03 | 8-10 | 18-20 | - | - |
| 304HC | 0.06 | 1 | 1.2-1.8 | 0.035 | 0.03 | 8-10 | 17-19 | - | 2.0-3.0 |
| 316 | 0.08 | 1 | 2 | 0.04 | 0.03 | 10-14 | 16-18 | 2.0-3.0 | - |
| 316L | 0.03 | 1 | 2 | 0.04 | 0.03 | 10-14 | 16-18 | 2.0-3.0 | - |
| 310S | 0.08 | 2 | 2 | 0.04 | 0.03 | 19-22 | 24-26 | - | - |
| 321 | 0.18 | 2 | 2 | 0.045 | 0.03 | 9-13 | 17-19 | - | |
| 301 | 0.15 | 2 | 2 | 0.04 | 0.03 | >7 | 16-18 | - | - |
| 309S | 0.08 | 1 | 2 | 0.035 | 0.03 | 12-15 | 22-24 | - | - |
Mechanical Properties
| Mechanical Properties of Hydrogen Annealed Wire | ||
| Diameter(mm) | Tensile Strength(MPa) | Elongation(%) |
| 0.05~0.10 | 690~ 1030 | 15 |
| 0.10~0.30 | 640~ 980 | 20 |
| 0.30~0.60 | 590~ 930 | 20 |
| 0.60~1.00 | 540~ ~ 880 | 25 |
| 1. 00~3. 00 | 490~830 | 25 |
| 3.00~6.00 | 490~830 | 30 |
| 6.00~ 14.00 | 490~ 790 | 30 |
| Mechanical Properties of Bright Polished Shiny Wire | |
| Diameter(mm) | Tensile Strength(MPa) |
| 0.05~1.00 | 1180-1520 |
| 1.00~3.00 | 1130~ 1470 |
| 3.00~6.00 | 1080~ 1420 |
| Mechanical Properties of Spring Wire | |
| Diameter(mm) | Tensile Strength(MPa) |
| 0. 10~0.40 | 1960~ 2205 |
| 0.40~0.70 | 1815~ 2060 |
| 0.70~1.00 | 1765~2010 |
| 1. 00~ 1. 40 | 1665~1910 |
| 1.40~2. 00 | 1570~ 1815 |
| 2. 00~2.60 | 1470~1715 |
| 2.60~4.00 | 1375~ 1620 |
| 4.00~6.00 | 1275~1520 |
Stainless steel wire is made of stainless steel as raw materials to produce various specifications and models of filamentous product, cross section generally assumes the circular or flat look, there are also some special products, common good corrosion resistance, high cost performance of stainless steel wire stainless steel wire are 304 and 316.The different section shapes and sizes of various stainless steel wires can be produced by drawing.Pull out the silk, the size is accurate, the surface is clean, and the drawing equipment and the mold is simple, the manufacture is easy.
Ordinary stainless steel wire is divided into austenite, ferrite, bidirectional stainless steel and martensitic stainless steel. The model is mainly divided into 2 series, 3 series, 4 series, 5 series and 6 series stainless steel wire.Common stainless steel wire materials: 302,304, 304L, 316, 316L,321 etc.
Characteristics of stainless steel wire:
Surface light, beautiful and durable, anti-corrosion, acid and alkali resistant, high temperature resistant, not easy to wear, aging, good toughness, high strength characteristics;
Application:
Widely in weaving woven wire mesh, crimped wire mesh, hexagonal wire mesh, conveyor mesh belt, stainless steel wire mesh, stainless steel wire rope, arts and crafts, tableware, barbecue net flowers and various kinds of knitting, twisting, bound to wait for a variety of purposes.
