Mirror Polishing Stainless Steel Round Pipe , Welded 310s 316 SS 304 Pipe
Mirror Polishing Stainless Steel Round Pipe , 310s 316 304 Stainless Steel Pipe
Description:
The 310S stainless steel is austenite chrome-nickel heat-resistant stainless steel, the domestic brand is 0Cr25Ni20, the American brand SA213/TP310S,2520 dual-phase stainless steel, has very good oxidation resistance, corrosion-resistant, because of the high percentage of chromium and nickel, it has much better creep strength, can continue to operate under high temperature, has good high-temperature resistance for the high-temperature furnace tube manufacturing.
310S stainless steel density: 8.0 g/cm3, after solid solution treatment on the mechanical performance: the yield strength of 205 or higher, with 520 or higher tensile strength, elongation, 40 or higher hardness test: HBS 187 or less, HRB 90 or less, HV 200 or less, is suitable for making various furnace with a component, the highest working temperature 1200 ℃, continuous working temperature 1150 ℃.
310S stainless steel pipe is a kind of hollow long round steel, mainly used in petroleum, chemical industry, medical treatment, food, light industry, mechanical instrument and so on.In the bending and torsional strength phase at the same time, the weight is lighter, widely used in the manufacture of machinery parts and engineering structures, the 310 s is cr-ni austenitic stainless steel has good oxidation resistance, corrosion resistance, due to high percentage of chromium and nickel, 310 s has much better creep strength, can continue to work at high temperatures, has good resistance to high temperature.
Chemical Properties
| Composition | 310 | 310S |
| (%) | (%) | |
| C | 0.25 max. | 0.08 max |
| Mn | 2.00 max. | 2.00 max. |
| Si | 1.50 max. | 1.50 max. |
| P | 0.045 max. | 0.045 max. |
| S | 0.030 max. | 0.030 max. |
| CR | 24.00 – 26.00 | 24.00 – 26.00 |
| Mo | - | - |
| Ni | 19.0 – 22.0 | 19.0 – 22.0 |
| N | - | - |
Mechanical Properties in room temperature
|
Grade |
Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Fatique life (N/mm2) |
Brinell (HB) max |
| 310 | 515 | 205 | 40 | 95 | 217 |
| 310S | 515 | 205 | 40 | 95 | 217 |

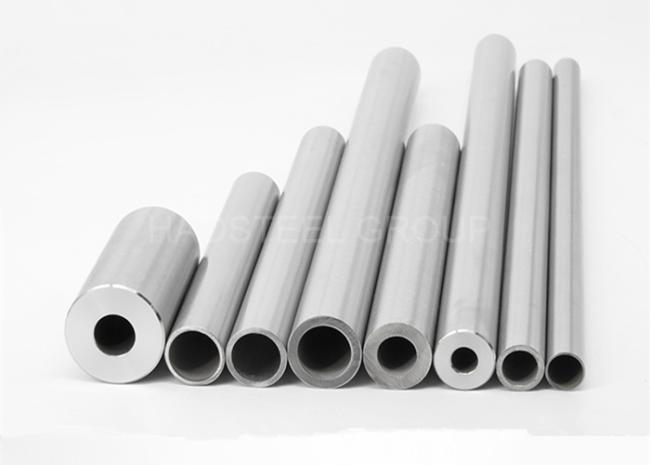

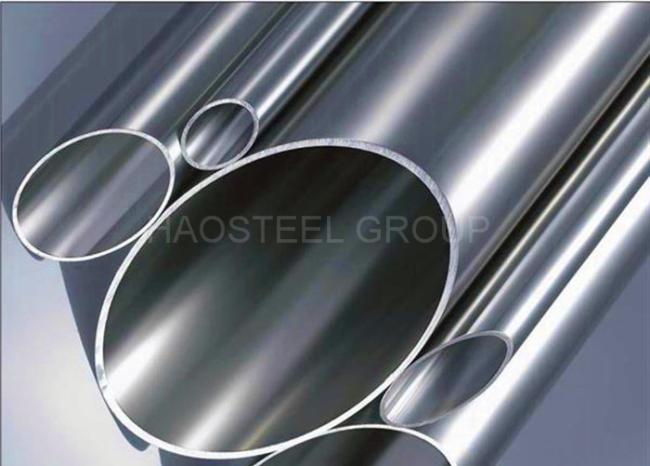

Product show
Product Application
Our factory produces stainless steel tube, surface has ordinary polishing, mirror polishing, drawing, matte.
The physical properties of stainless steel are mainly expressed in the following aspects:
1. Mechanical processing performance is excellent, can be polished mirror, electroplating, drilling, line cutting, laser cutting processing.
2. Good processing performance such as bending.
3. The material quality meets the international standards such as national standard, American standard and Japanese standard.
