37Mn 34Mn2V 30CrMo 35CrMo Seamless Steel Tube / Cold Rolled Carbon Steel Pipe
37Mn 34Mn2V 30CrMo 35CrMo Seamless steel tubes high pressure vessels gas cylinders
Description:
Carbon steel pipe can be divided into seamless steel pipe, straight steel pipe, spiral steel pipe, high frequency welded steel pipe and so on.Carbon steel seamless steel pipe is a kind of long steel.
The pipe has a hollow section and is used in a large number of pipelines for fluid transportation, such as those for oil, natural gas, gas, water and some solid materials.
Generally, the outer diameter of hot-rolled seamless pipe is greater than 32mm, the wall thickness is 2.5-75mm, the outer diameter of cold-rolled seamless pipe can be up to 6mm, the wall thickness can be up to 0.25mm, and the outer diameter of thin-walled pipe can be up to 5mm, the wall thickness is less than 0.25mm, and the precision of cold rolling is higher than that of hot rolling.
General carbon steel pipe: it is made of 16Mn, 5MnV and other low-alloy structural steels, such as 10, 20, 30, 35, 45, 45 etc.Seamless pipes made of mild steel such as 10 and 20 are mainly used for fluid transportation pipes.The seamless pipe made of medium carbon steel such as 45 and 40Cr is used to make mechanical parts, such as mechanical parts of cars and tractors.Carbon steel tubes are generally used for strength and flattening tests.The hot-rolled steel pipe is delivered in the hot-rolled or heat-treated condition;Cold rolling is delivered as heat treatment.
Specification:
Standard:GB 18248, JIS G3429, ASTM A372, ISO 11120
Major steel pipe brands:37Mn, 34Mn2V, 30CrMo, 35CrMo, STH11, STH12, STH21, STH22, etc.
Weight:Steel pipes shall be delivered according to actual weight.
According to the requirements of the buyer, through consultation between the supplier and the supplier, and indicated in the contract, the goods can also be delivered according to the theoretical weight
Mechanical property
| Standard | Grade | Tensile strength (MPa) | yield strength | elongation |
| GB 18248 | 37Mn | ≥750 | ≥630 | ≥16 |
| 34Mn2V | ≥745 | ≥530 | ≥16 | |
| 30CrMo | ≥930 | ≥785 | ≥12 | |
| 35CrMo | ≥980 | ≥835 | ≥12 |
| Standard | Grade | Chemical composition, % | ||||||||
| C | Si | Mn | P,S | Cu | Ni | Mo | Cr | V | ||
| GB18248 | 37Mn | 0.34～0.40 | 0.10～0.30 | 1.35～1.65 | ≤0.030 | ≤0.20 | ≤0.30 | / | ≤0.30 | / |
| 34Mn2V | 0.30～0.37 | 0.17～0.37 | 1.40～1.75 | ≤0.030 | ≤0.20 | ≤0.30 | / | ≤0.30 | 0.07～0.12 | |
| 30CrMo | 0.26～0.34 | 0.17～0.37 | 0.40～0.70 | ≤0.030 | ≤0.20 | ≤0.30 | 0.15～0.25 | 0.80～1.10 | / | |
| 35CrMo | 0.32～0.40 | 0.17～0.37 | 0.40～0.70 | ≤0.030 | ≤0.20 | ≤0.30 | 0.15～0.25 | 0.80～1.10 | / | |
| JIS G3429 | STH11 | ≤0.50 | 0.10～0.35 | ≤1.80 | ≤0.035 | / | / | / | / | / |
| STH12 | 0.30～0.41 | 0.10～0.35 | 1.35～1.70 | ≤0.030 | / | / | / | / | / | |
| STH21 | 0.25～0.35 | 0.15～0.35 | 0.40～0.90 | ≤0.030 | / | ≤0.25 | 0.15～0.30 | 0.80～1.20 | / | |
| STH22 | 0.33～0.38 | 0.15～0.35 | 0.40～0.90 | ≤0.030 | / | ≤0.25 | 0.15～0.30 | 0.80～1.20 | / | |
Similar comparison of domestic and foreign brands
| GB 18248 | JIS G 3429 | ISO 11120 | EN 10297-1 | ASTM A372 | DOT 49CFR§178.37 |
| 37Mn |
STH11 STH12 |
/ | 38Mn6 | Grade C |
Inter-mediate manganese |
| 34Mn2V |
STH11 STH12 |
/ | / | / | / |
| 30CrMo | STH21 | GroupⅡ | 30CrMo4 | Grade E | 4130X |
| 35CrMo | STH22 | GroupⅡ | 34CrMo4 | / | / |
| 34CrMo4 | STH22 | GroupⅡ | 34CrMo4 | / | / |
| 30CrMnSiA | / | / | / | / | / |

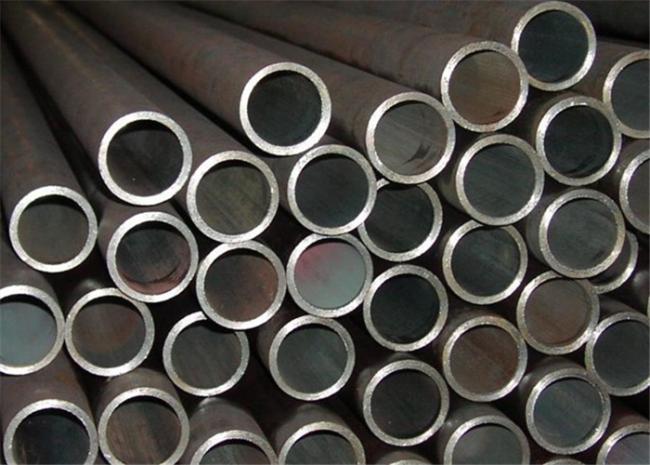

Product Show:
