Nickel Base Alloy Steel Metal Inconel 600 GH600 GH3600 Customized Dimensions
Inconel Inconel600 GH600 GH3600 nickel base superalloy Customzied Dimensions
Product Description
American brand: Inconel/Inconel600
Chinese brand: GH600/GH3600
Overview of Inconel600
Inconel600 is an early developed nickel-chromium-iron based solid solution reinforced alloy with excellent high temperature corrosion resistance and oxidation resistance, excellent cold and hot processing and welding performance, and satisfactory thermal strength and high plasticity below 700℃.The alloy can be strengthened by cold processing, or joined by resistance welding, melting welding or brazing welding. It can supply cold rolled sheet, hot rolled thick plate, strip, wire, rod, round cake, ring blank, ring forging, etc., suitable for making antioxidant parts under 1100℃ under low load.
material brand Inconel600. Inconel600 similar brands Inconel, GH600, GH3600(China).
Chemical Composition
| C | Cr | Ni+Co | Al | Ti | Fe | Nb+Ta | Mn | Si | P | S | Cu |
| ≤0.15 | 14.0～17.0 | ≥72 | ≤0.35 | ≤0.50 | 6.00～10.00 | ≤1.00 | ≤1.00 | ≤0.50 | ≤0.040 | ≤0.015 | ≤0.50 |
Physical and chemical properties of Inconel600
Inconel600 thermal performance melting temperature range 1370 ~ 1430℃
Inconel600 density p =8.43g/cm3 magnetic alloy without magnetism

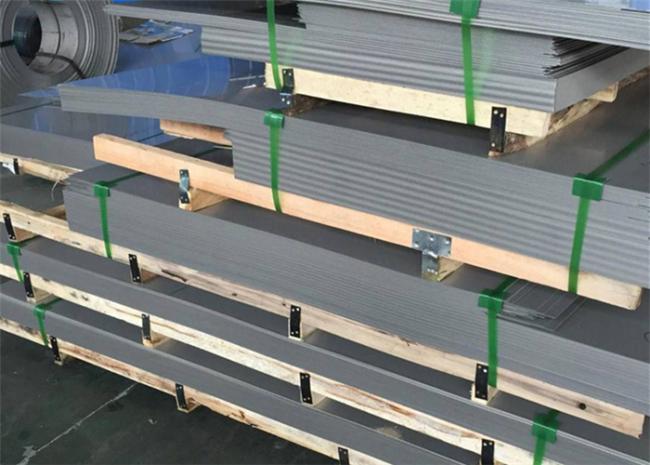

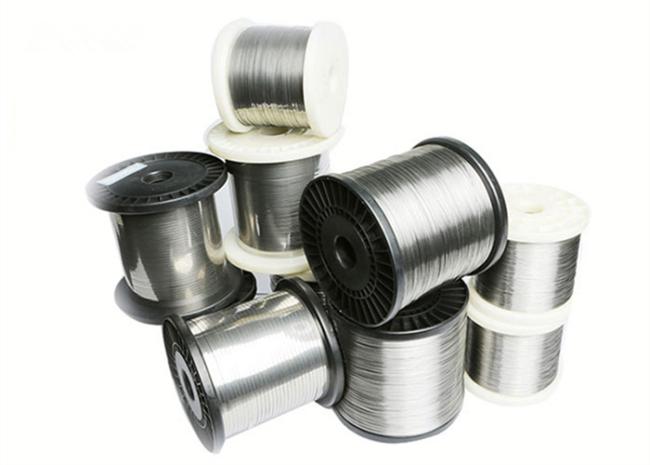

We can supply all kinds of plates, bars, forgings, strip, wire, round cake, ring blank, ring forgings.Bar to forge rolling state, surface polishing or car light supply;Round cake and ring preform are supplied by forging;Ring parts are supplied in solid solution state;Plate after solid solution, alkali pickling, straightening and trimming supply;Cold rolling, solid solution, peeling delivery;The silk material shall be delivered in the state of fine polishing in the form of solid solution pickling tray or straight strip.
Heat conductivity
| θ/℃ | 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| λ/(W/(m·℃)) | 12.85 | 13.94 | 15.15 | 16.62 | 18.71 | 20.72 | 22.40 | 24.49 | 27.00 | 29.51 | 31.60 |
Smelting and casting alloys are smelted using one of the following processes :(1) non-vacuum induction smelting plus electroslag remelting;(2) electric arc furnace melting and electroslag remelting;(3) vacuum melting.Application overview and special requirements this alloy has mature experience in foreign countries, and has been made into aerospace engine parts in China
Product show
