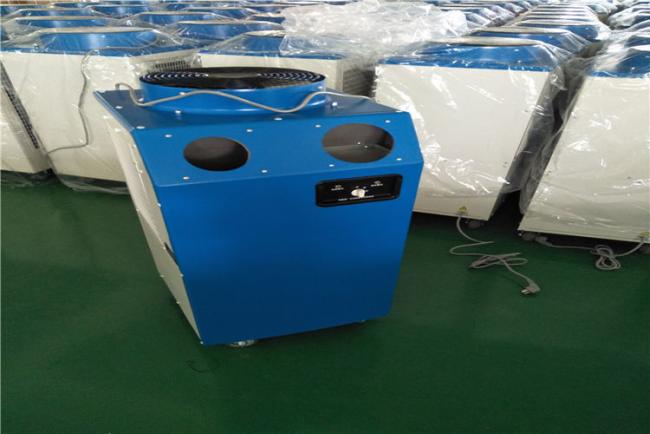

18700btu Cooling Air Cooler Conditioner 5.5Kw Axial Fan Type
18700btu Cooling Portable Air Cooler Conditioner, 5.5 kw portable cooling for renting
Features:
1. Provides 18700 Btu/h of cold air... maximum spot cooling to quickly cool equipment, spaces and people.
2. Manual Controller or Digital controller
4. Auto full condensate bucket shut off and alarm.
5. Condensate Pump Option.
6. Auto Restart.
7. No costly installation necessary. Roll it to anywhere.
8. Provides cooling down to 64°F ambient...
9. Wide operating range from 64°F to 113°F.
10 Built rugged for everyday use and designed for the rental industry.
11. Classic design for a great look in all commercial applications.
12. High quality locking castors for effortless movement.
Techinical parameters
| Voltage | 220V AC/50HZ | |
| Cooling capacity | 3500W/11900BUT | |
| Fan Characteristics | High | Low |
| Condenser Air flow | 480m3/h,282CFM | 420m3/h,247CFM |
| Evaporator Air flow | 1200m3/h,706CFM | |
| Rating Current(FLA) | 6.6A | 6.4A |
| Max Current(Fuse zize) | 7.4A | |
| Consumption power | 1400W | 1360W |
| Max consumption power | 1600W | |
| Compressor | Fully enclosed rotary | |
| Condensate Tank Capacity | 14L | |
| Refrigerant Type | R410A | |
| Refrigerant | 530g | |
| Operating Range | 18OC～45OC | |
| Dimensions | 450mm*510mm*1100mm | |
| Weight | 60kg | |
WX55
Cooling Capacity:18700BTU,60% Relative humidity
Operating Range:(MIN-MAX F°): 64F°-113F°(18C°-45C°)
Dimensions Width(inches):20inches 520mm
Depth(inches):24inches 625mm
Height(inches):43inches 1100mm
Weight(pounds):172pounds 78kg
Electrical Specification
Power Supply(Volts) 220V or can be customized
Current Consumption(AMPS) 8.5
Fuse size(Amps) 10.4
Flug Configuration 5-15
Voltage(MIN-MAX) 210-240
Power Cord Length(Feet) 8
Fan Characteristics
Evaporator Air flow (CFM) High/Low 780/660
Condenser Air flow(CFM) High/Low 2300/1946
Compressor Specification
Compressor Type :Rotary
Refrigerant Type:R410A
Safety Devices
Compressor overcurrent protection Yes
High pressure safety w/Auto reset Yes
Fan Motor Protection Yes
Anti-Freeze Thermostat Yes
LED Thermostat Yes
Fan Mode Switch Yes
Automatic Tank Shut Off Yes
Audible Tank Shut Off Alarm Yes
Condensate Tank Capacity (Gal) 3.1 14L
LED Control Panel with Timer Yes
