China JOINT Brand High quality low price Vertical turret milling machine for sale 3E
Price:
NEGOTIATION
MOQ:
1 SET
Delivery Time:
NEGOTIATION
Brand:
JOINT
Product Description
China High quality turret milling machine 3E
Specifiaction of Turret milling machine
| Model | 3E |
| Table size | 1270*254*90mm (50*10inch) |
| X axis travel | 880mm (35inch) |
| Y axis travel | 395mm(16inch) |
| Z axis travel | 340mm(13inch ) |
| Travel of spindle quill | 127mm |
| Max distance from the spindle nose to table | 400mm |
| Spindle rotation speed | 80-5440/(16Grades)/60HZ;66-4530/(16 Grades)/50HZ |
| Spindle Taper | R8(NT30/NT40) |
| Spindle Rate power | 3HP (2.2KW) |
| Tilt angle Forward and backward | ±45° |
| Tilt angel left and right | ±90° |
| Dimension | 1500*1700*2150mm |
| Net weight | 1280kgs |
Product Features
Low price with good quality
Taiwan parts assembled in China
Spindle tolerance :0.005mm
Suitable for household appliances ,daily necessities mold processing
Standard Accessories
Step speed milling head
Way cover , working light ,tool and toolbox

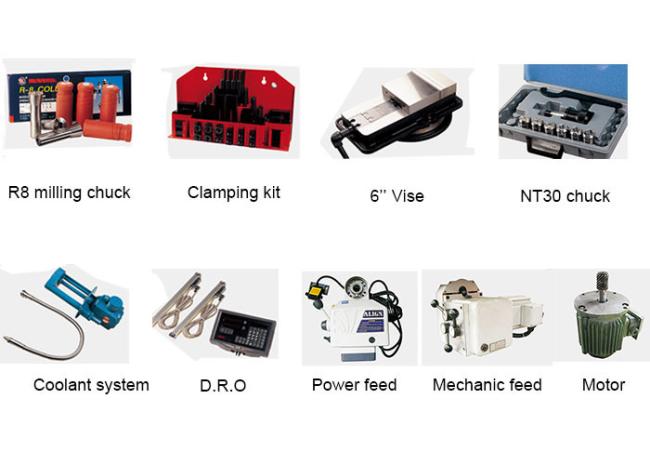

Optional Acessories
Milling chuck +Clamping kit
Coolant system
X/Y Axis power feed
Elevator motor
Two axis DRO /Three axis DRO
Mechanic Feed +6 Vise
Variable speed milling head
Inverter speed milling head
NT30/NT40 Power feed
