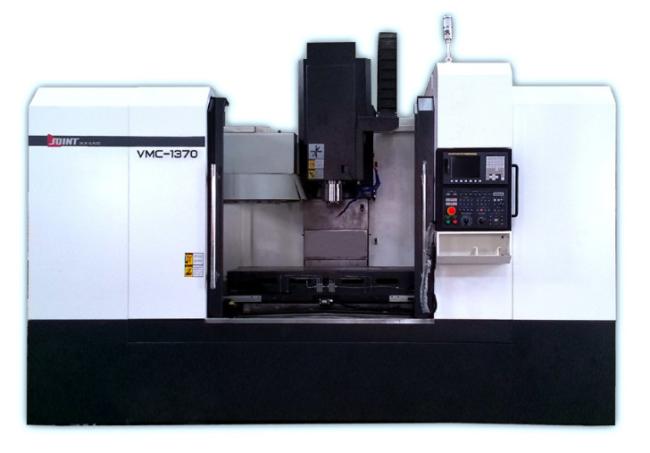

Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision
VMC1370L3 Linear Way Vertical CNC Machine Center BT50 15KW 8000rpm Spindle

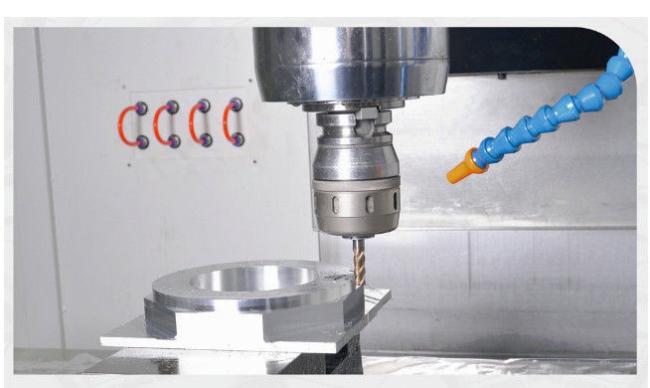

Product Application:
1. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts.
2. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process.
3. It is suitable for many varieties, medium and small batch production.
4. It can finish the processing of complex, high precision parts .
5. It can be matched the four rotary shaft , in order to meet the requirements of special parts.

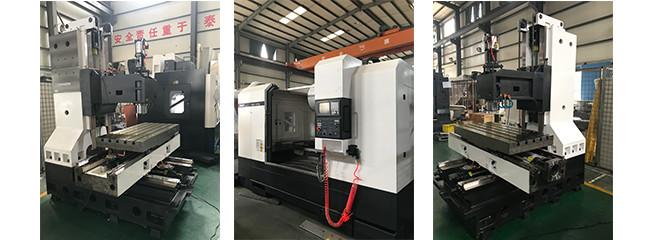

Product features:
1. Imported high speed and high precision spindle.
2. Tool magazine optional
3. High strength resin sand casting.
4. C3 grade ball screw
5. NSK bearing imported from Japan
6. Automatic intermittent lubricate system
7. Fully enclosed cover
8. Fanuc, Simens, Mitsubishi, Syntec CNC control system
| Model | Unit | VMC-1370L3 | ||
| Travel | X axis | mm | 1300 | |
| Y axis | mm | 700 | ||
| Z axis | mm | 750 | ||
| Distance between spindle and table | mm | 170-920 | ||
| Working table | Table size | mm | 1500*700 | |
| Max. Load of table | Kg | 1000 | ||
| T slot | Pcs－mm-mm | 5-22-135 | ||
| Positioning accuracy | X/Y/Z axis | mm | 0.01/0.008/0.008 | |
| Repeated positioning accuracy | X/Y/Z axis | mm | 0.008/0.007/0.007 | |
| Spindle | Spindle rotation speed | Rpm | 8000 | |
| Spindle taper | BT40 | |||
| Diameter | mm | Φ155 | ||
| Rivet model | BT50 45° | |||
| Rapid feed | X/Y/Z axis | m/min | 24/24/18 | |
| Cutting feed | X/Y/Z axis | m/min | 10 | |
| Tool magazine | Umbrella type | Size | Tools | 20 |
| Too changing time (T-T) | Sec | 6 | ||
| Max. diameter/ length/weight of tool | mm | 135/250/15 | ||
| Max tool diameter (no tool adjacent) | mm | 185 | ||
| Arm type | Size | Tools | 24 | |
| Tool changing time (T-T) | sec | 3.5s | ||
| Max. diameter/ /length/weight of tool | mm | 110/250/15 | ||
| Max tool diameter (no tool adjacent) | mm | 200 | ||
| Total capacity of electric | KVA | 35 | ||
| Weight of machine |
Kg |
10300 | ||
| Dimension | mm | 3560*3300*3300 | ||
Standard Accessories:
Fanuc/Mitsubishi Controller system
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
Working light
Tool and tool box
Optional accessories:
Siemens controller or other controller system
Spindle oil coolant
Umbrella type tool magazine
Arm type tool magazine
Screw type auto conveyor
Chain type tool magazine
4 Axis rotary table
Ring spray spindle
