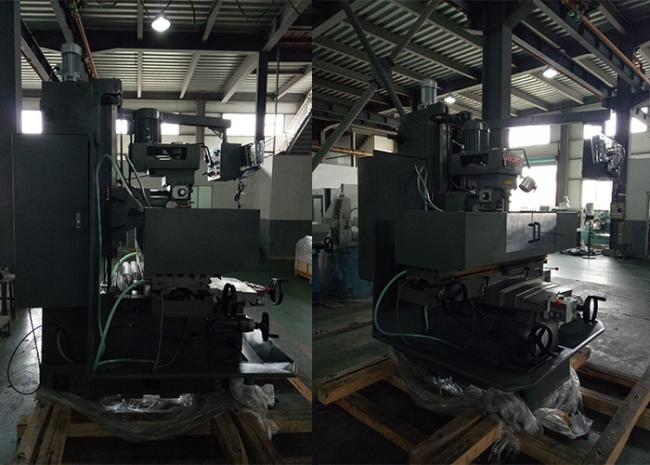

Bed Type Turret Milling Machine , NT40 Spindle Turret Head Milling Machine
5HP Bed Type Milling Machine NT40 Spindle B600 Taiwan Original Milling Head
Product Details:
1. Widely used in heavy and large work pieces (800-1000kgs) processing.
2. NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
3. High strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
4. Use imported spindle. After the quenching and tempering and frequency processing, ensure high quality and high precision.
5. Milling head adopts 5HP motor.
6. Hardened and ground table surface and guideways with precision ground.
Company:
1. We get the ISO:9001 Certificates.
2. Our service is 24 Hours Online Service (MSN,SkypeE, WhatsappTrademanager).
3. Our after-sale service is 12 months quality warranty
4. More than twenty-three years experience of industry products.
5. All models with ISO9001 authority approved.
6. High reputation around the country.
7. We have professional service and technology support.
Specifiaction
| Model | B600 |
| Table size | 1370*405mm |
| X axis travel | 1000mm |
| Y axis travel | 460mm |
| Z axis travel | 640mm |
| Travel of spindle quill | 150mm |
| Max distance from the spindle nose to table | 760mm |
| Spindle rotation speed | 70-3600/(10Grades)/50HZ 58-3000/(10Grades)/50HZ |
| Spindle Taper | NT40 |
| Spindle Rated power | 5HP |
| Tilt angle Forward and backward | 0° |
| Tilt angel left and right | ±90° |
| Dimension | 2000*2230*2150mm |
| Net weight | 2800kgs |
Standard Accessories:
1. Step speed milling head 2. Clamping kit
3. NT40 Milling chuck 4. Way cover
5. Working light 6. Tool and toolbox
7. X, Y axis Mechanic feed 8. Elevator motor
| Optional Accessories |
| Vise |
| Coolant system |
| X/Y Axis power feed |
| Two axis DRO /Three axis DRO |
| Variable speed milling head |
| Inverter speed milling head |
| Power feed |
FAQ
Q: Can we start with small quantity ?What's the MOQ?
A: We can accept orders with any quantity. The MOQ is 1 unit.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.
Q: How many years have your company established?
A: 23 years, our company built in 1995.
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q: Can you provide customized machine or SPM (Special purpose machine)?
A: Yes, we provide smart solutions for our customer, in order to increase efficiency.
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.
Q: What’s the delivery time, and what’s the package?
A: Normally the delivery time is about 10-15 days if the goods are in stock, 25-30 days if the goods are not in stock. All our machinery are packed with sea worthy package.
