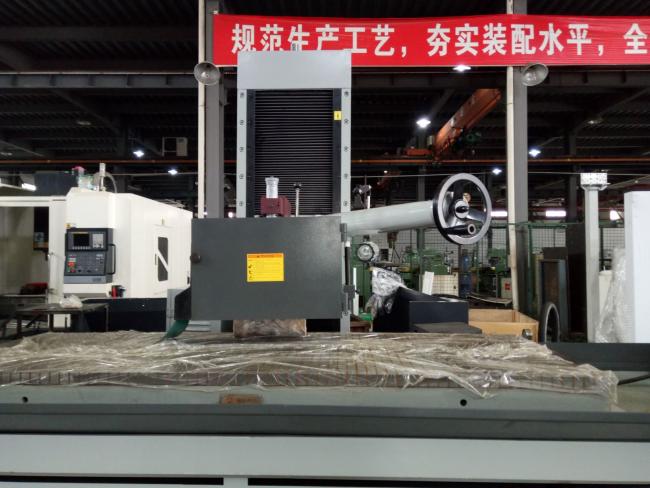

5010AHR Metal Surface Grinding Machine 2350*4500*2400mm Cylinder Head Grinder
5010AHR Metal Surface Grinding Machine 2350*4500*2400mm Cylinder Head Grinder
1. Well-designed control panel with two-way rotate structure, make the operator getting suitable
working position very easy, improve work efficiency.
2. High precision cross and vertical lead screws are made in Taiwan.
3. Independent,large capacity integrated hydraulic tank,standard equipped with air cooling and
pressurizer,isolate heat and vibroseis, to provide excellent power for precision grinding.
4. Super great power spindle unit is most important to the machine.It is really an elaboraton under
well designed,and our ultimate goal is to balance high rigidity and great accureacy.
5. The machine bed and rear slide bed are assembled to one piece,to supply super strong base for
efficient working.
| Model | 6010AHR | ||
| Table size | mm | 600*1000 | |
| Table travel |
Longitude (X) |
mm | 1150 |
|
Crossward (Y) |
mm | 640 | |
| Table side way | mm | Slide way | |
|
Max.distance from spindle center to working table |
mm | 700 | |
| Auto crossward feed | Kg | 0.1-10 | |
| Crossward feed of hand wheel | 1 Rev | 5 | |
| 1 Div | 0.02 | ||
| Auto vertical feed | |||
| Vertical feed of hand wheel | 1 Rev | 180 | |
| 1 Div | 0.4 | ||
| Rotation Speed | rpm |
1450/50HZ |
|
| Grinding Wheel Size | mm | φ400×(20-50)×φ127 | |
| Spindle motor | 15*4 | ||
| Hydraulic motor | 7.5*6 | ||
| Crossward driving motor | 0.2*4 | ||
| Vertical driving motor | 0.5*4 | ||
| Coolant pump motor | 0.12*2 | ||
| Dimension (L*W*H) | mm | 2350*4500*2400 | |
| Net Weight | Kg | 7000 | |
