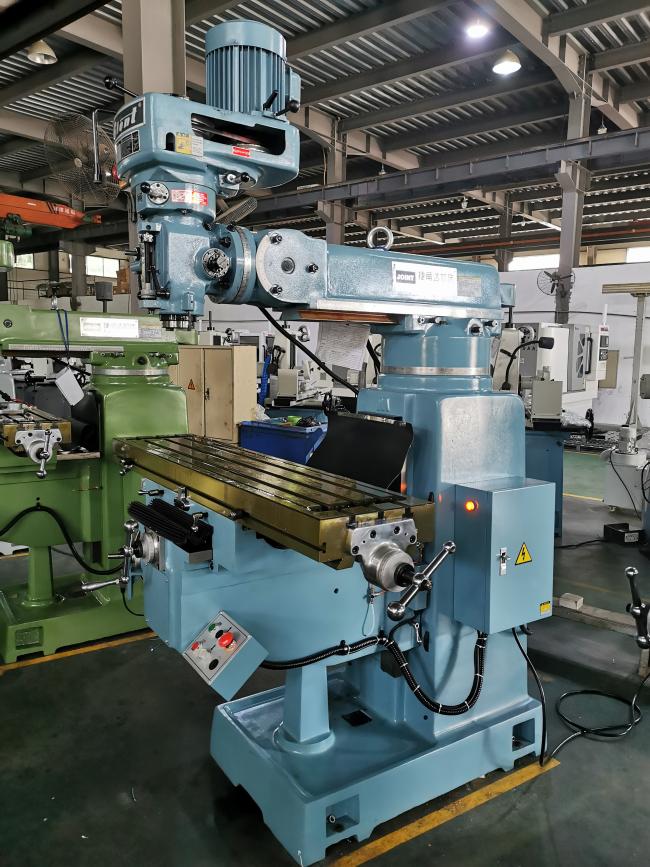

5HP Spindle Manual Turret Milling Machine 4530rpm 5s For Metal Processing
Product Introduction:
This S series type of milling machine is our second level. Adopted Taiwan parts, assembled by ourselves milling head with strict assembling standard. It's price is lower than VA series, original milling head. But it is good!
It is suitable for the manufacture and processing of precision plastic and hardware moulds and parts processing in other strong cutting occasions.
Spindle runout is 0.005mm.
Parameters Sheet:
| Model | 5S | |||
| Table size | mm | 1370*305*85 | ||
| Travel | X axis | mm | 880 | |
| Y axis | mm | 420 | ||
| Z axis | mm | 390 | ||
| Travel of spindle quill | mm | 127 | ||
| Maximum distance from spindle nose to table | mm | 550 | ||
| Spindle | Rotation speed (Step speed milling head) |
50HZ | rpm | 60-4530 |
| 60HZ | rpm | 80-5440 | ||
| Rotation speed (Variable speed milling head) |
50HZ | rpm | 40-3125 | |
| 60HZ | rpm | 50-3750 | ||
| Rotation speed (Inverter speed milling head) |
50HZ | rpm | 0-4200 | |
| 60HZ | rpm | 0-4200 | ||
| Taper | NT40 | |||
| Rated power | HP | 5HP | ||
| Tilt angle | Forward and Backward | 0° (±45° Optional) | ||
| Left and Right | ±90° | |||
| Dimension | mm | 1600*1850*2400 | ||
| Net weight | kg | 1900 | ||
Standard Accessories:
1. Taiwan original step speed milling head
2. Working light
3. Draw bar
4. Maual oil pump
5. Manual operation
6. Guide way cover
7. Tool and tool box
8. Clamping kits
9. Milling chuck (7pcs)
Optional accessories:
1. Water pump
2. M12 clamping kits
3. 6' vise
4. X axisp ower feed or Y axis power feed or Z axis elevating motor
5. X/Y two axis/ X/Y/Z three axis DRO
Power feed R8 milling chuck (7 pcs) Water tray
