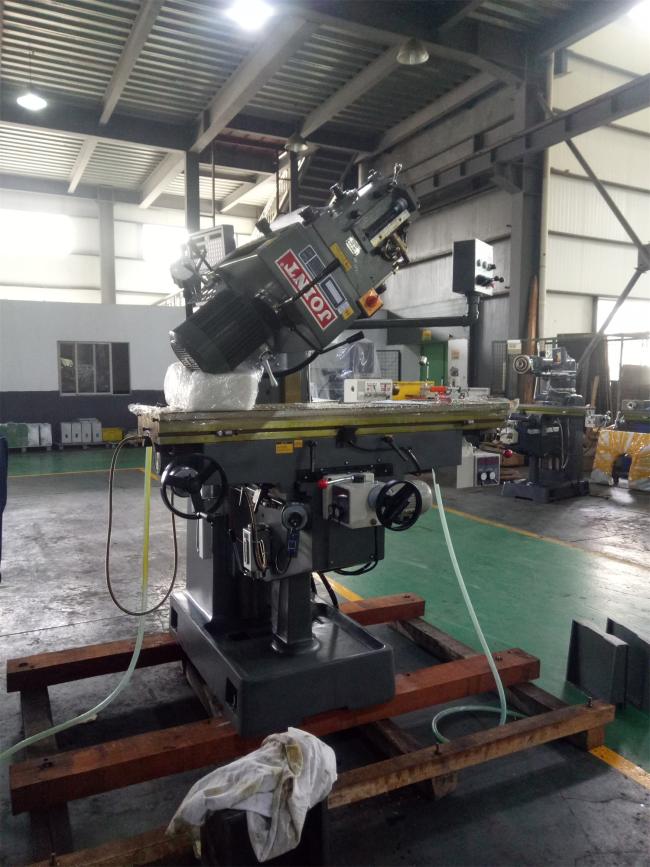

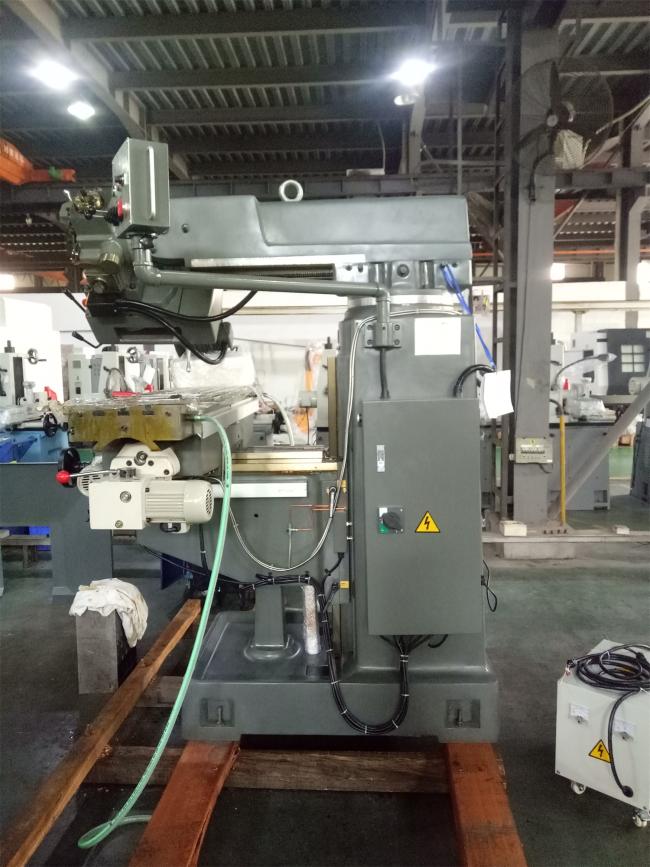

3600rpm Turret Head Milling Machine 5HP Boring With Drawbar
Key Advantages:
1. This series of milling machine is suitable for precision electronic machinery, precision electronic components, mold accessories and other precision parts of the hole, slot, frame.
2. Second time precison scraping assembly process, to ensure the precision grade of the machine
3. High quality Taiwan original milling head, Japan NSK P4 level preicision spindle bearing. Spindle runout: 0.003mm.
4. 300 spindle detection rod section runout is 0.02mm.
Specification:
| Model | 6VA | |||
| Table size | mm | 1370*330*99 | ||
| Travel | X axis | mm | 850 | |
| Y axis | mm | 390 | ||
| Z axis | mm | 450 | ||
| Travel of spindle quill | mm | 150 | ||
| Maximum distance from spindle nose to table | mm | 570 | ||
| Spindle | Rotation speed (Step speed milling head) |
50HZ | rpm | 60-3000 |
| 60HZ | rpm | 70-3600 | ||
| Rotation speed (Variable speed milling head) |
50HZ | rpm | 60-3250 | |
| 60HZ | rpm | 70-3900 | ||
| Rotation speed (Inverter speed milling head) |
50HZ | rpm | 0-4200 | |
| 60HZ | rpm | 0-4200 | ||
| Taper | NT40 | |||
| Rated power | HP | 5HP | ||
| Tilt angle | Forward and Backward | ±45° | ||
| Left and Right | ±90° | |||
| Dimension | mm | 1600*2000*2450 | ||
| Net weight | kg | 2000 | ||
VA series standard accessorie:
1. Taiwan original step milling head
2. Working light
3. Guideway cover
4. M12 clamping kit
5. R8 collet (7 pcs)
6. Drawbar
7. Manual oil pump
8. Accompanied toolbox
Optional accessories:
1. 6'' or 8'' vise
2. Electric power feed (2 axis and 3 axis)
3. Mechnical power feed (2 axis and 3 axis)
4. Water pump+water tray
5. Dro(2 axis or 3 axis)
