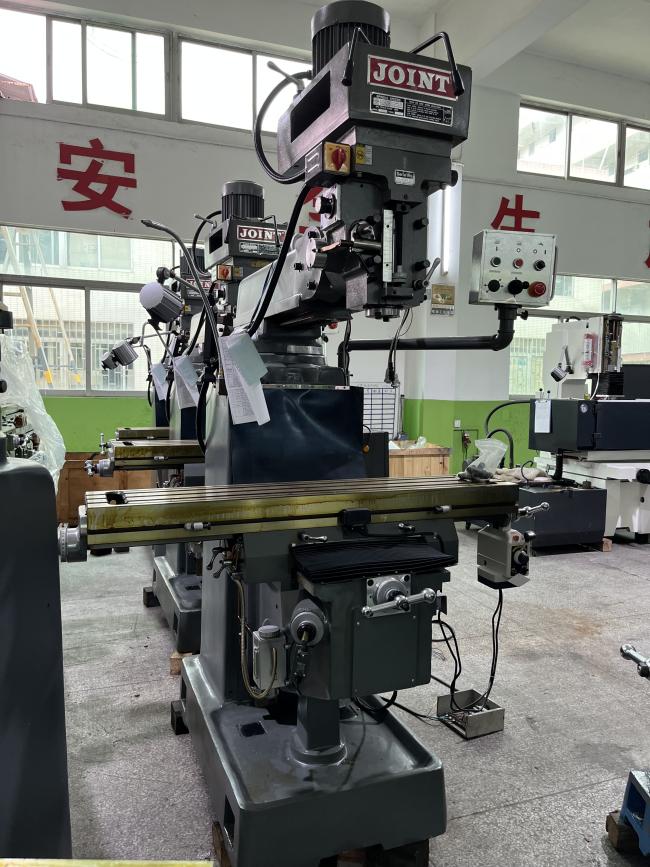

5VA Vertical Turret Milling Machine NT40 Spindle 5HP Metal Conventional
NT40 Spindle 5HP Metal Conventional 5VA Vertical Turret Milling Machine
VA series standard accessorie:
1. Taiwan original step milling head
2. Working light
3. Guideway cover
4. M12 clamping kit
5. R8 collet (7 pcs)
6. Draw bar
7. Manual oil pump
8. Accompanied toolbox
Optional accessories:
1. 6'' or 8'' vise
2. Electric power feed (2 axis and 3 axis)
3. Mechnical power feed (2 axis and 3 axis)
4. Water pump+water tray
5. Dro(2 axis or 3 axis)
High quality castings, precision processing to ensure excellent precision and stability:
1. This series milling machine spindle tolerance can reach 2μ, 0.002mm.
2. The fuselage will be scrapped twice before assembling in order to reach our inner strict standard. So it is very strong.
3. This series milling head is Taiwan original milling head and its bearing is Japan NSK P4 precision spindle bearing.
4. This series is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.
Specification:
| Model | 5VA | |||
| Table size | mm | 1270*254*90 | ||
| Travel | X axis | mm | 680 | |
| Y axis | mm | 415 | ||
| Z axis | mm | 420 | ||
| Travel of spindle quill | mm | 150 | ||
| Maximum distance from spindle nose to table | mm | 620 | ||
| Spindle | Rotation speed (Step speed milling head) |
50HZ | rpm | 60-3000 (10 grade) |
| 60HZ | rpm | 70-3600 (10 grade) | ||
| Rotation speed (Variable speed milling head) |
50HZ | rpm | 60-3250 | |
| 60HZ | rpm | 70-3900 | ||
| Rotation speed (Inverter speed milling head) |
50HZ | rpm | 0-4200 | |
| 60HZ | rpm | 0-4200 | ||
| Taper | NT40 | |||
| Rated power | HP | 5HP | ||
| Tilt angle | Forward and Backward | 0° (±45° optional) | ||
| Left and Right | ±90° | |||
| Dimension | mm | 1500*1700*2450 | ||
| Net weight | kg | 2000 | ||
Package:
