100ml Cream Cosmetic Filling Machine Lotion Bottle Filling Machine
Skincare Body Lotion Linear Cold Filler Shampoo Cosmetic Filling Machine (JYF-4) is our latest design, it is used for either hot filling or cold filling cosmetic products.
Applications of Lotion Bottle Filling Equipment Cream Cosmetic Filling Machine
- hot filling for high viscosity products, like lipstick in pan, lip balm, shea butters, foundation, etc;
- cold filling for great fluids, such as lotion, shampoo, and other oily products.
Key Features of Lotion Bottle Filling Equipment Cream Cosmetic Filling Machine

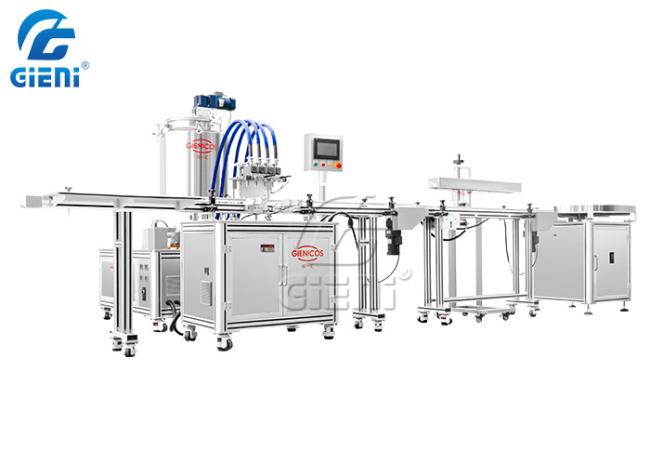

This is a modular filling line that consists of 4 parts, a filling machine, conveyor, re-heating machine, and collection table. Each of them can use independently. The production capacity of this machine is 15 - 45 pcs per minute according to different filling volumes.
| 1. Filling Machine | |
| Filling Nozzle | 4 nozzles, bottom filling, and top filling, nozzle distance adjustable |
| Filling Tank Volume | 50L |
| Filling Tank Material | 3 layers tank with heating/stirring/vacuum sucking functions, outer layer: SUS304, inner layer: sus316L, comply with GMP standard |
| Filling Tank Temperature Control | material temperature detection, oil temperature detection, filling nozzle temperature detection |
| Filling Type | suitable for both cold and hot filling, filling volume up to 100ml |
| Filling Valve | new design, FAST DISASSEMBLING TYPE, you can select different filling valve to fulfill your different filling volume, with fast changeover |
| Filling Tube | new design adopts heating coiled tube instead of oil heating one, more safety and sanitary |
| 2. Conveyor | |
| conveyor belt | adopts Teflon PVC, which has good performance on resisting high temperature |
| conveyor connection | with patent design, with motivation transfer/ live roller bridge type |
| Motor | JSCC speed motor, conveyor speed adjustable |

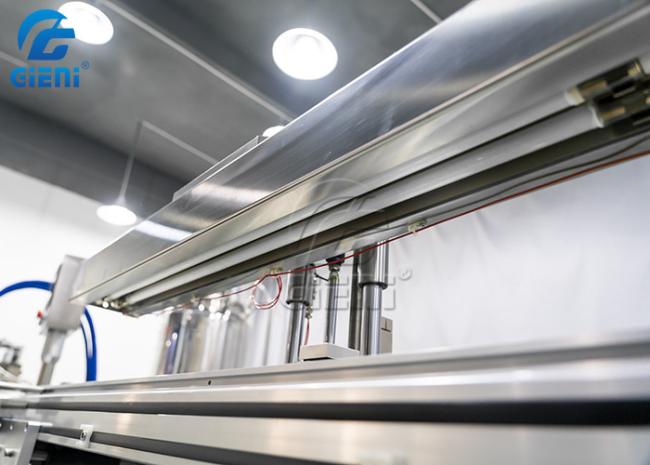

| 3. Reheating Machine | |
| a. adopts quartz heating lamps with cover as our surface re-heating system | |
| b. the re-heating system can be lifted up and down, which driven by a cylinder |

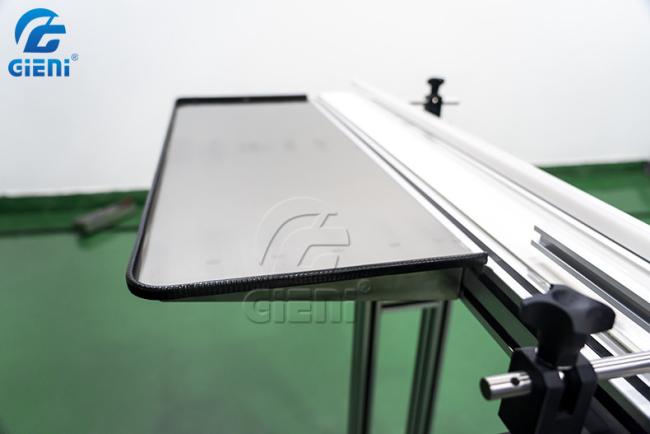

| 4. Collection Table |
Main Elements of Lotion Bottle Filling Equipment Cream Cosmetic Filling Machine
- Mitsubishi Electric PLC control system with HMI touch screen;
- JSCC speed motor to adjust conveyor speed
