SUS316L 2400pcs/H Water Circulation Cosmetic Tube Filling Machine
1800-2400pcs/hour SUS316L Automatic Tube Filling and Sealing Machine with Water Circulation
description
Application for Automatic Tube filling and sealing machine:
This machine can automatically do the below job:
Auto tube load,eyemark detect,filling,tube heat,tube sealing,end cut,date coding andfinished product convey out.
Tube loading adopts pneumatic, reliable and precise.
Rotary type tube center control and positioning by choosing sensor detect.
Material contacts adopt SUS316L, clean, safe and meet GMP standard.
Safety-door device, machine stops when open the door. No tube no filling, overload protection.
Technical Parameter for Automatic Tube filling and sealing machine:
Filling Range: 5-250ml
Filling Precision:≤±1%
Production capacity:1800-2400pcs/hour
Tube Dia:∮10-50mm
Tube Length:60-210mm
Power:5KW
Dimension:1900×850×1900mm
Packing Size: 2000*1220*1915mm
Weight:850kg
Process for Automatic Tube filling and sealing machine:
Main Configuration for Automatic Tube filling and sealing machine:
| Item | Name | Brand |
| 1 | PLC | Delta |
| 2 | Touch Screen | Weinveiw |
| 3 | Converter | Delta |
| 4 | Step Motor | SIhai |
| 5 | Eyemark detect sensor | Panasonic |
| 6 | Air Switch | CHNT |
| 7 | Code | Omron |
| 8 | Pneumatic Elements | SMC |

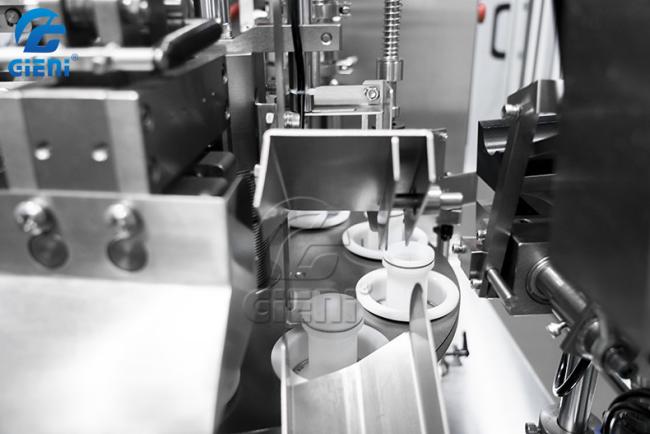

Rotary Design

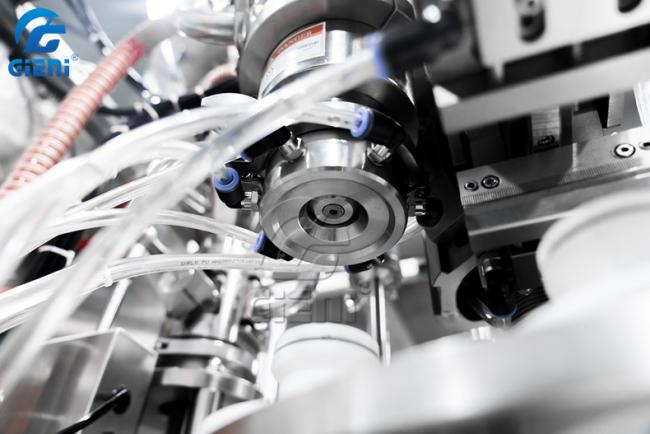

Hot Air Heating

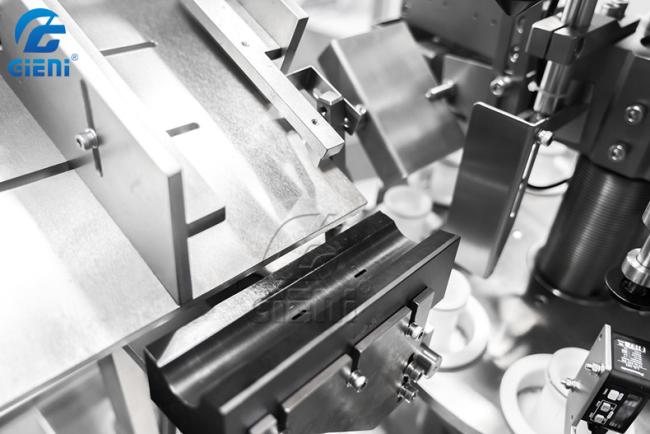

End Product Push Out
