10KWh 15KWh 20KWh 51.2V 100Ah 200Ah 300Ah Stacking AC Power System LifePO4 Lithium Batteries for Household Energy Storage
Price:
R$11,715.46-13,396.37
MOQ:
1
Delivery Time:
Negotiable
Brand:
GBS
Product Description

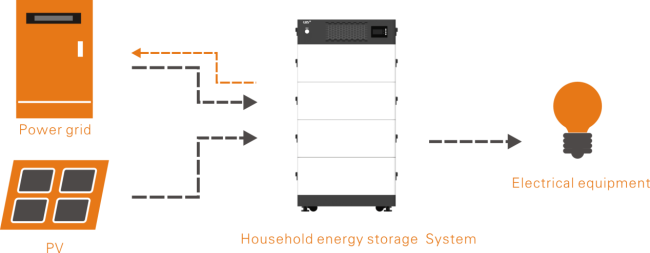

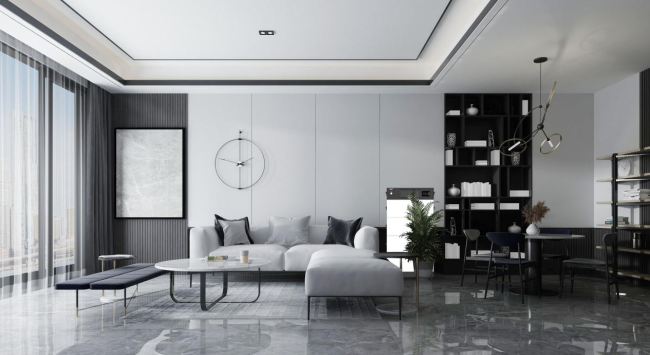

This system mainly meets the energy needs of household users, and aims to provide customers with intelligent and convenient integrated household energy storage solutions that perfectly integrate energy storage battery systems, photovoltaic power generation systems, and municipal electricity. Suitable for urban and rural areas with high electricity bills, unstable power grid operation, frequent power outages, and household electricity and energy security in areas without grid coverage.

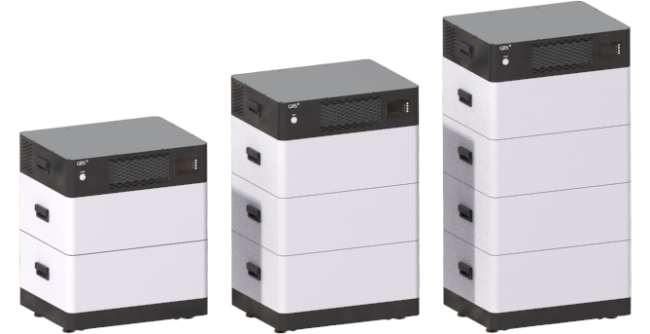

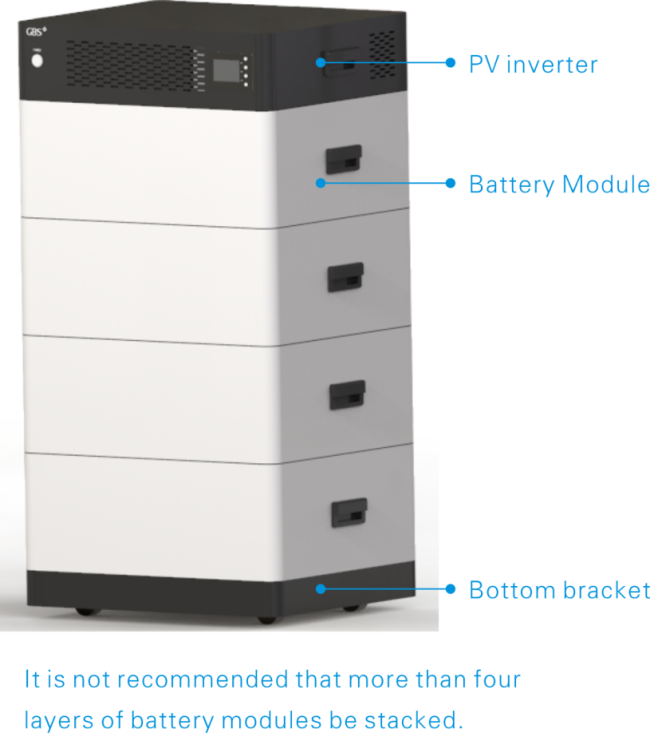

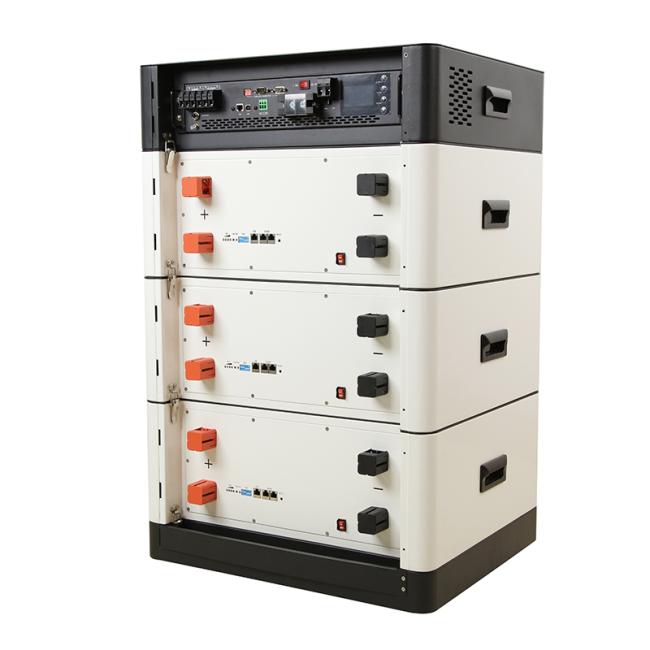

The system is composed of a photovoltaic inverter and multiple battery modules stacked together, and the number of battery modules can be selected according to the user's power demand. In addition, parallel capacity expansion can also be implemented between systems (three sets of parallel capacity expansion can be achieved) to meet the greater power demand of users.
Specification
Storage energy | 5.12KWhxN |
Battery voltage and capacity | 51.2V/(100xN)Ah |
Output power | 5KW |
Output voltage | 230Vac士5% |
Output efficiency | 90% |
AC output voltage | 230Vac |
Maximum PV OCV | 145VDC |
MPPT working voltage | 60~130VDC |
Maximum PV charging current | 80A |
Maximum AC charging current | 60A |
Working tempt | charge: 0C~ 55°C; discharge: -10°C~55C |
Storage tempt | -15~60C |
Relative humidity | 5%~95% |
Battery module voltage and capacity | 51.2V100Ah |
Battery module weight | 55Kg |
Battery module size | 600x 480x 230mm |
Inverter weight | 20Kg |
Inverter size | 600x480x 150mm |
Bottom bracket weight | 10Kg |
Bottom bracket size | 600x 480x 109mm |
Company Profile
ZHEJIANG GBS ENERGY CO.,LTD.

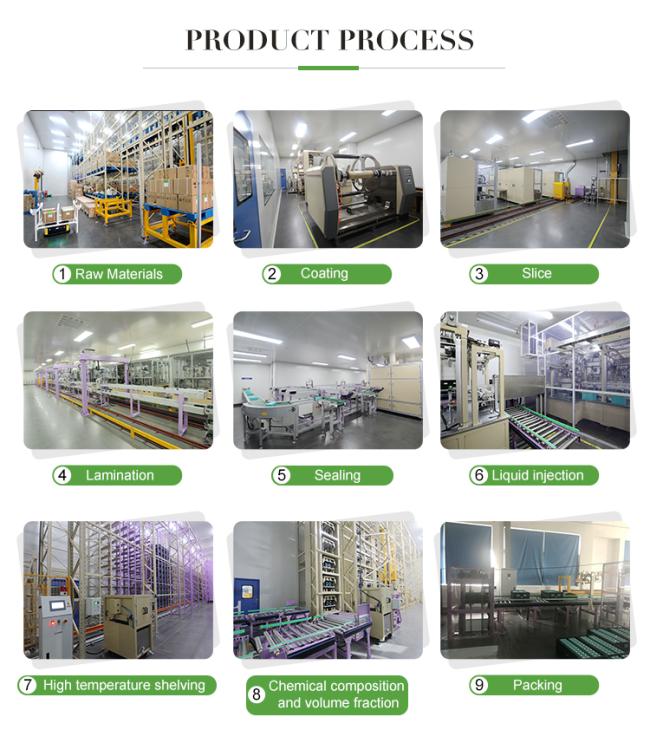

Zhejiang GBS is a national high-tech enterprise dedicated to the R&D and manufacturing of lithium iron phosphate battery and lithium battery integration system. The company was established in July 2007, has a digital demonstration factory in Zhejiang province, and currently has two production bases with an annual production capacity of 2 GWh.

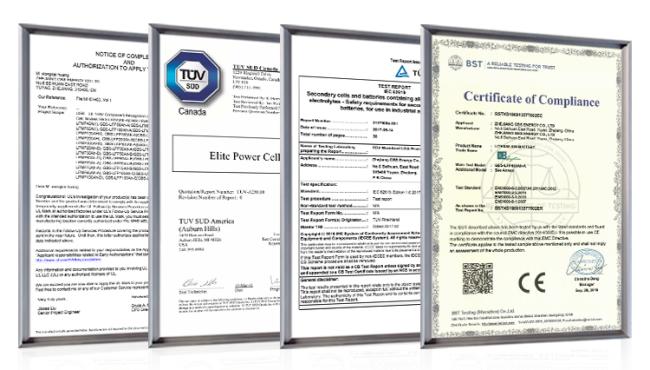

The company’s long-term purpose is “innovation to improve quality, quality awakens the concept”, and the pursuit of “ideas to improve the environment, and the environment benefits mankind”, comprehensively promote the construction of the corporate culture of the “Goose Team”, and establish a “lithium battery research and development center” and “academician workstation “Professional development of lithium battery system products, and has obtained the authorization of more than 70 patents for inventions, utility models, appearances, etc., obtained UL, TUV, CE, IEC and other international certifications, and entered the “Automotive Power Battery Industry Specification Conditions” The enterprise catalogue has passed the explosion-proof safety certification of mining products, the TLC certification of telecommunication products and the certification of CCS marine products, becoming one of the first lithium battery manufacturers in China to have qualification certificates in the fields of electric vehicles, mining, telecommunication, and marine applications.
