LiFePO4 Lifepo4 Rechargeable 48V100Ah for telecommunication Backup Battery
Intelligent telecommunication backup power with LiFePO4 battery 48V100Ah lithium ion battery GBS-LFP100Ah
Features of LiFePO4 battery
High energy density: the battery delivers double to triple energy compared with lead acid battery of the same volume and mass.
Long cycle life: cycle life is five times that of lead acid battery
Adaptability to a wide range of temperature: the battery can work at temperature between -20℃ and +65℃.
High C-rate: support high charge/discharge rate to meet the requirement for high-current discharge in a short time and quick charging.
Environmentally friendly and free from heavy metal.
Functions of BMS
Over charging protection
Over discharging protection
Over current protection
Over temperature protection
Short circuit protection
Balancing
Mult-communication
| Item | Description | |
| Basic parameter | Model | 15S |
| Anode | LiFePO4 | |
| Nominal voltage | 48Vdc | |
| Equlization charge voltage | 54.0Vdc | |
| Floating charge voltage | 51.0Vdc | |
| Cutoff discharge voltage | 40.5Vdc | |
| Max charge/discharge current | 100A / 100A ,@25ºC | |
| Installation method | Rack mounted | |
| Weight | 43kg | |
| Size (W*D*H) | 442mm*430mm*133mm | |
| Self discharge @25ºC | ＜5% in 90-day storage | |
| Comm. way | RS485,RS232 | |
| Function | Over tempt, over current, short circuit, over discharge etc. | |
| Anti-theft function(Optional) | BMS software anti-theft function, Gyroscope anti-theft | |
| Working humidity | Charge: 0ºC ~ 65ºC；Discharge: -20ºC ~ 65ºC | |
| Relative humidity | 5% ~ 95% | |
| Altitude | 0 ~ 4000m | |

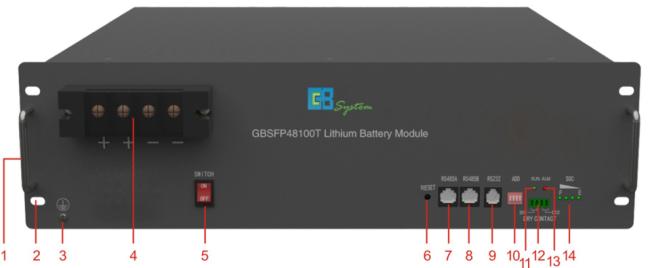

1- Handle
2- Hanger
3- Ground
4- Line bank
5- System Switch
6- Reset switch
7- RS485A
8- RS485B
9- RS232
10- Address switch
11- Working light
12- Dry
13- Alarming light
14- Power light
