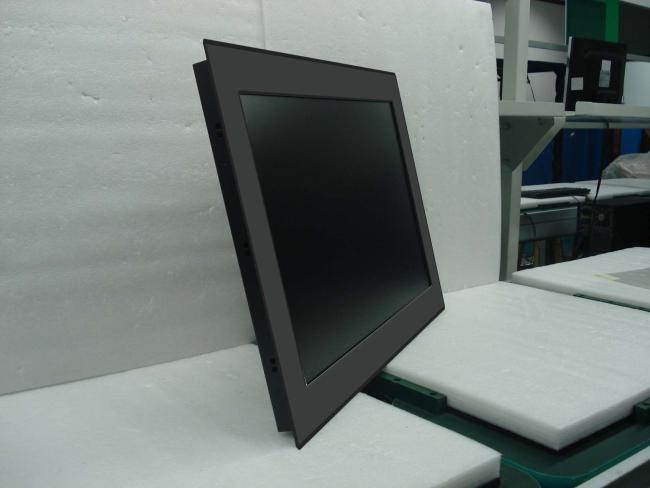

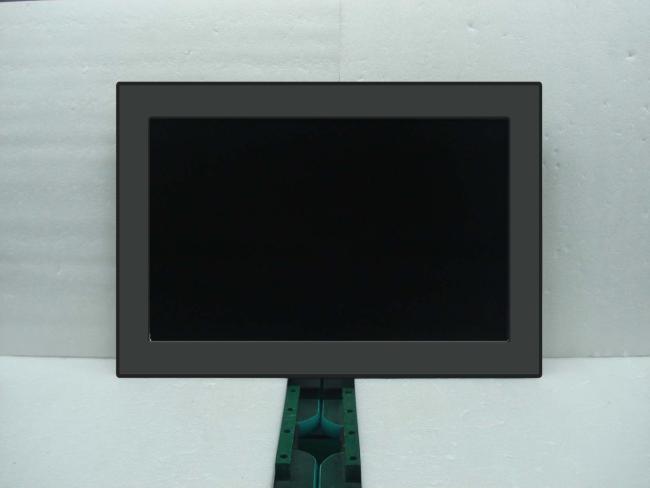

Touch Screen Industrial Monitor 24 Inch LCD 1920x1080 For CNC Machine
touch screen industrial monitor 24 inch LCD 1920x1080 for CNC machine
ITD 24” touch screen industrial monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.
FEATURES of touch screen industrial monitor
•High contrast color TFT LCD display supports resolution up to 1920 x 1080
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Robust design with aluminum NEMA 4/ IP65 front panel
•All steel construction designed for harsh and industrial environments
•VESA Mounting, Panel/Embedded Mounting Supported
•CE, FCC, RoHS Compliance
APPLICATIONS of touch screen industrial monitor 24 inch LCD
•Kiosks
•Industrial Automation/Factory Automation/Building Automation/Banking Automation
•Robots
•Delivery Cabinets
•IoT
BASIC PARAMETERS of touch screen industrial monitor
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 23.8” 16:9 | |
| Active Area/Pixel Pitch | 525.22mm(W)×297.22mm(H)/0.2715mm | |
| Native Resolution/Colors | 1920 x 1080 /16.7M | |
| Brightness/Contrast | 250nits/1000:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 89/89/89/89 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input Signals | VGA,DVI,HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Bellow 40W |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 24”panel mount monitor with IR touch/ITD24PMT201 | |
| 24”panel mount monitor with SAW touch/ITD24PMT301 | ||
| 24”panel mount monitor with PCAP touch/ITD24PMT501 | ||
| 24”panel mount monitor with tempered glass/ITD24PMG101 | ||
