Outdoor Waterproof Lcd Screen High Brightness Monitor 7" With Speakers
waterproof lcd screen high brightness monitor 7" with speakers for outdoor

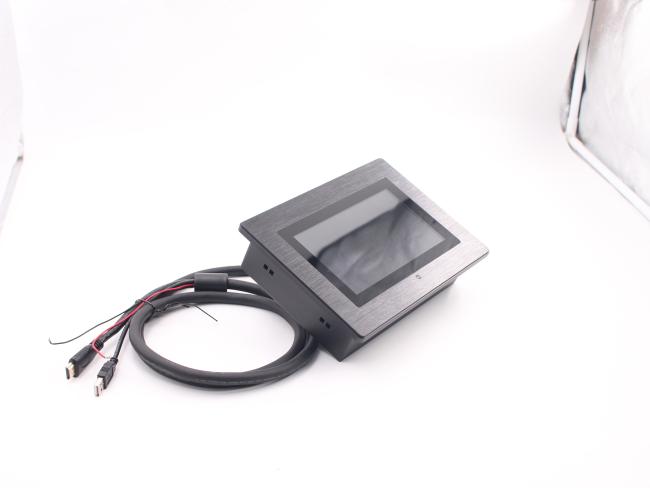

ITD 7” waterproof lcd screen high brightness monitor full IP65/IP66 high bright LCD display series features industrial-duty fully sealed NEMA 4/IP65 stainless steel/aluminum chassis, for specially use in hygienic and harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
FEATURES of waterproof lcd screen high brightness monitor
▪ Rugged stainless-steel/aluminum alloy enclosure
▪ IP65/IP66 sealed, with anti-corrosive rubber providing 360-degree protection
▪ Full IP65/IP66 I/O connectors protect from any particles, water, and corrosive agents
▪ Modularize mechanical design provides flexible product configuration and easy maintenance
▪ CE, FCC, RoHS Compliance
OPTIONALS of waterproof lcd screen high brightness monitor
• PCAP touch, resistive touch, AR/AG protective glass •Optical bonding
• DC 9-36V Input
• Stainless steel housing
• Full IP67
SPECIFICATION of waterproof lcd screen high brightness monitor
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 7” 16: 9 | |
| Active Area/Pixel Pitch | 154.214(H) x 85.92(V)/0.1506 x 0.1432mm | |
| Native Resolution/Colors | 1024 x 600 /262K/16.7M | |
| Brightness/Contrast | 1000nits/800:1 | |
| Response Time | 10/15ms | |
| Viewing Angle (Typical) | 75/75/70/75 | |
| Light Source | LED with 50000hours’lifetime | |

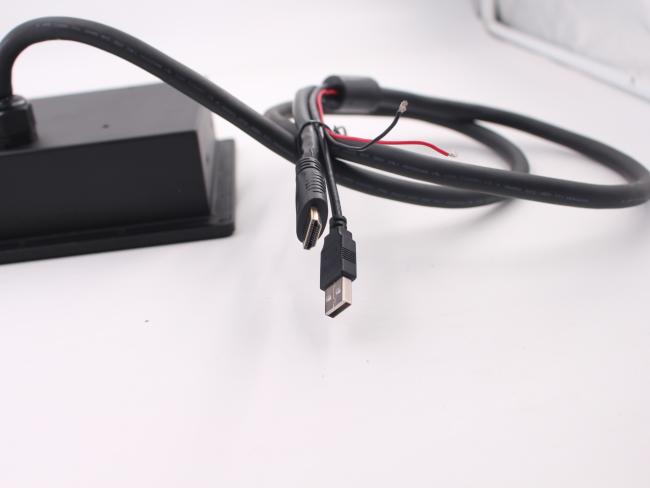

| Input Signal | HDMI (Waterproof Connector) | |
| Power Input | DC 12V input (Waterproof Connector) | |
| Touch Panel | PCAP Touch Panel Waterproof USB Connector | |
| Power Consumption | 10W | |
| Operating Temperature | -10~60℃ (-20~70℃ optional) | |
| Storage Temperature | -20~60℃ | |
| Order Information | 7” 1000nits Full IP66 aluminum monitor with tempered glass/ITD07CMG1HBIPA2 | |
| 7” 1000nits Full IP66 aluminum monitor with resistive touch/ITD07CMT1HBIPA2 | ||
| 7” 1000nits Full IP66 stainless monitor with resistive touch/ITD07CMT1HBIPS2 | ||
| 7” 1000nits Full IP66 stainless monitor with PCAP touch/ITD07CMT5HBIPS2 | ||
