TFT LCD 10.1" 1280x800 Resistive Touch Monitor CE FCC RoHS Compliance
TFT LCD 10.1" 1280x800 Resistive Touch Monitor CE FCC RoHS Compliance

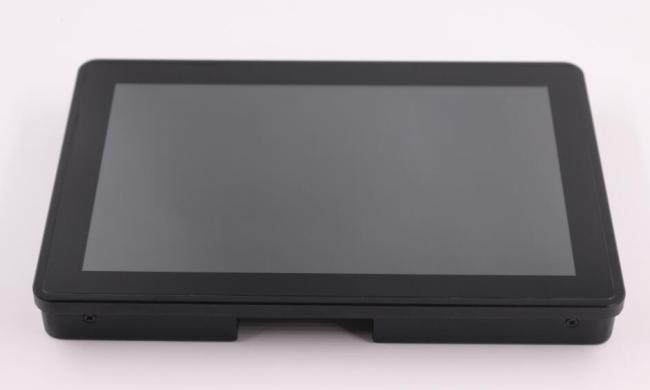

ITD 10.1inch Chassis Monitor With Resistive Touch Industrial USB Touch Monitor
ITD 10.1” ITD101CMN10U rugged chassis USB powered touch monitor is designed to help you streamline your tasks and create a more efficient and enjoyable end-user experience. Its capacitive and non-touch options have HDMI compatibility right out of the box, which is designed to be highly resilient and durable, lasting for years of consistently efficient performance to benefit industrial/commercial or business system-related needs.
FEATURES
•High contrast color TFT LCD display supports resolution up to 1280 x 800
•Supports DDC 1/2B for Plug & Play compatibility
•Utilizes Displaylink for power, touch and video over single USB connection

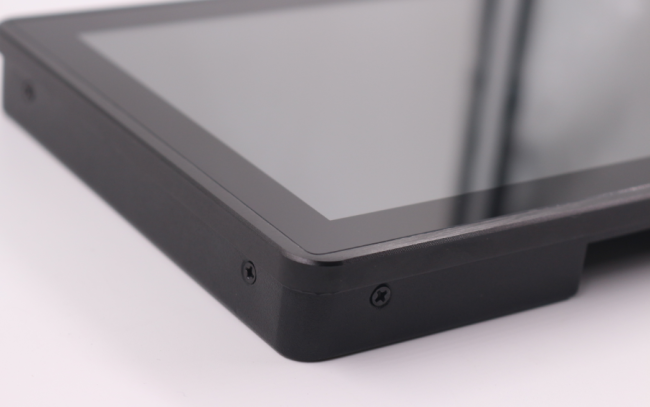

•All steel construction fit to harsh and industrial environments
•Ultra-low power consumption, high reliability and durability
•CE, FCC, RoHS Compliance
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
|---|---|---|
| Aspect Ratio/Size | 10.1” 16:10 | |
| Active Area/Pixel Pitch | 216.96(H) x 135.6(V)/0.1695mm | |
| Native Resolution/Colors | 1280 x 800 /16.7M | |
| Brightness/Contrast | 350nits/800:1 | |
| Response Time | 30ms | |
| Viewing Angle(Typical) | 85/85/85/85 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input Signals | USB 2.0 (USB 3.0 Optional) | |
| Convenient Features | Backlight Adjustment, Plug & Play | |
| Power | USB 2.0 (USB 3.0 Optional) | |
| Touch Panel | Projected Capacitive Touch Panel | |
| Touch Interface | USB 2.0 (USB 3.0 Optional) | |
| Power Consumption | Operation/Power Saving | Below 6W |
| Operating Condition | Temperature/Humidity | -10~60℃, 10%~90% (Non Condensing) |
| Storage Condition | Temperature/Humidity | -20~70℃, 10%~90% (Non Condensing) |
