Waterproof Dustproof 10.1 Inch Monitor Pure Flat Surface Aluminum Alloy Front Bezel And Back Casing
pure flat surface aluminum alloy front bezel and back casing waterproof dustproof 10.1inch monitor aluminum casing
ITD rugged full IP65/IP66 touch display features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis and PCAP touch screen fitted for specially use in harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. This makes it ideal for use in food and beverage processing, chemical processing, and other industrial applications.
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 10.1” 16:10 | |
| Active Area/Pixel Pitch | 216.96(W) × 135.6(H)/0.1695 × 0.1695mm | |
| Native Resolution/Colors | 1280 × 800 /16.7M | |
| Brightness/Contrast | 350nits/800:1 | |
| Response Time/ Viewing Angle | 25ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| Input Signal | HDMI (Waterproof Connector) | |
| Power Input | DC 12V input (Waterproof Connector) | |
| Touch Panel | PCAP Touch Panel Waterproof USB Connector | |
| Power Consumption | 6W | |
| Operating Temperature | -10~60℃ (-20~70℃ optional) | |
| Storage Temperature | -20~70℃ | |
| Operating Humidity | 10~90% (Non-Condensing) | |
| Order Information | 10.1” IP65/IP66 Stainless Monitor No Touch with Tempered Glass/ITD101CMG1IPS1 | |
| 10.1” IP65/IP66 Stainless Monitor with Resistive Touch/ITD101CMT1IPS1 | ||
| 10.1” IP65/IP66 Stainless Monitor with PCAP Touch/ITD101CMT5IPS1 | ||
| 10.1” IP65/IP66 Alu-Alloy Monitor No Touch with Tempered Glass/ITD101CMG1IPA1 | ||
| 10.1” IP65/IP66 Alu-Alloy Monitor with Resistive Touch/ITD101CMT1IPA1 | ||
| 10.1” IP65/IP66 Alu-Alloy Monitor with PCAP Touch/ITD101CMT5IPA1 | ||

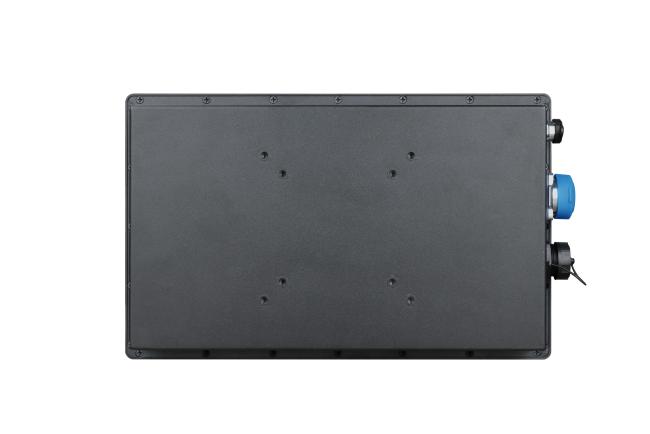

Product Image:
Support and Services:
We provide technical support and service for our waterproof monitor. Our technical support team is available 24/7 to help you with installation, troubleshooting, and other inquiries.
We also offer extended warranty plans to cover up to 5 years of repair and replacement. Our dedicated team of engineers and technicians are ready to provide support and help you get the most from your IP65 Panel PC.
