21.5”Fully IP66 & IP67 Rated Stainless Steel Waterproof Panel PC Industrial All-in-One
The ITD Full IP65/IP66/IP67 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and other industrial application. This waterproof panel PCs series has a wide range of sizes option, with complete stainless-steel chassis/aluminum alloy and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most harsh environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 21.5” 16:9 | |
| Active Area/ Pixel Pitch | 476.64(W) × 268.11(H)/0.24825× 0.24825mm | |
| Native Resolution/ Colors | 1920 × 1080 /16.7M | |
| Brightness/ Contrast | 350cd/㎡(500~1500cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 14ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900/J4125/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB/8GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage |
8GB; 16GB/32GB/64GB/128G Optional
|
1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |

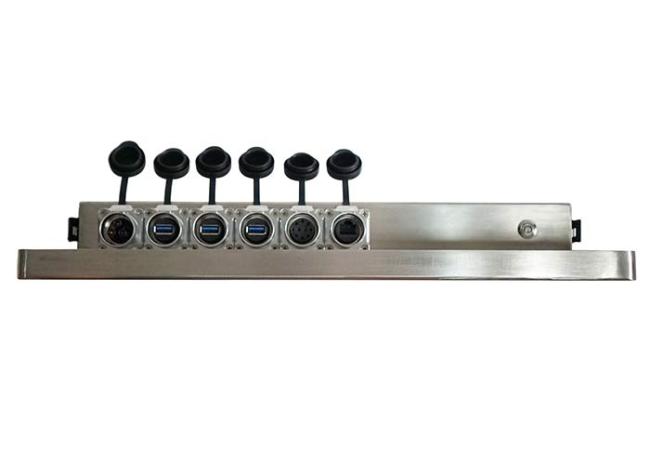

| Default Waterproof I/O |
2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS |
Android 7.1/8/10/11,etc. Linux Ubuntu(optional) |
Windows 7/10, Linux Windows 11(available for J4125/J6412) |
Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 25-45W | |
| Environmental Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Order Information | 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android Panel PC with Resistive Touch: ITD21PPCT1IPxEx | |
| 21.5” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android Panel PC with PCAP Touch: ITD21PPCT5IPxEx | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Resistive Touch: ITD21PPCT1IP*J1 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD21PPCT5IPxJ1 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J4125 Panel PC with Resistive Touch: ITD21PPCT1IPxJ4 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J4125 Panel PC with PCAP Touch: ITD21PPCT5IPxJ4 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J6412 Panel PC with Resistive Touch: ITD21PPCT1IPxJ6 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J6412 Panel PC with PCAP Touch: ITD21PPCT5IPxJ6 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD21PPCT1IPxI3 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD21PPCT5IPxI3 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD21PPCT1IPxI5 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD21PPCT5IPxI5 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i7 Panel PC with Resistive Touch: ITD21PPCT1IPxI7 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i7 Panel PC with PCAP Touch: ITD21PPCT5IPxI7 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Panel PC with Tempered Glass No Touch: ITD21PPCG1IPxxx | ||
| 21.5” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Panel PC with Touch: ITD21PPCTxHBIPxxx | ||
FEATURES
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and fully sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC, fanless design and true flat surface with easy-to-clean
•ARM based board built-in or Windows-based PC integrated
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption

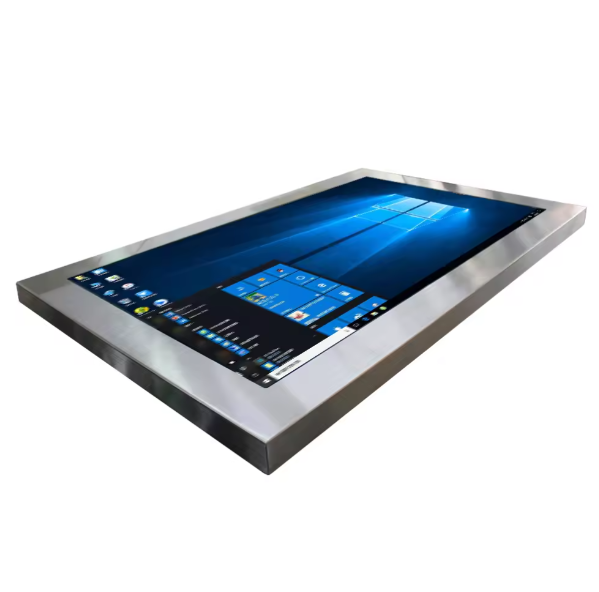

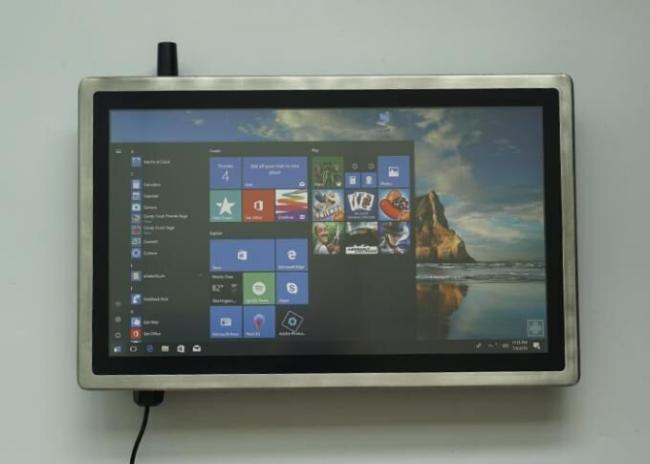

Product Image
Support and Services:
We provide technical support and service for our IP65 Panel PC. Our technical support team is available 24/7 to help you with installation, troubleshooting, and other inquiries.
We also offer extended warranty plans to cover up to 5 years of repair and replacement. Our dedicated team of engineers and technicians are ready to provide support and help you get the most from your IP65 Panel PC.
