10.1'', 11.6'', 13.3'', 15.6'', 17.3'',21.5'', 24'', 27'', 32'' Embedded Rugged Industrial LCD Monitor HD Full IP65/66 waterproof Fanless PCAP Touch display
10.1'', 11.6'', 13.3'', 15.6'', 17.3'',21.5'', 24'', 27'', 32'' Embedded Rugged Industrial LCD Monitor HD Full IP65/66 waterproof Fanless PCAP Touch display
ITD rugged full IP65/IP66 touch display features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis and PCAP touch screen fitted for specially use in harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. This makes it ideal for use in food and beverage processing, pharmaceuticals, chemical processing, and other industrial applications.
FEATURES
▪Rugged stainless-steel/aluminum alloy enclosure, true flat surface with easy-to-clean
•IP65/IP66 fully sealed, with anti-corrosive rubber providing 360-degree protection

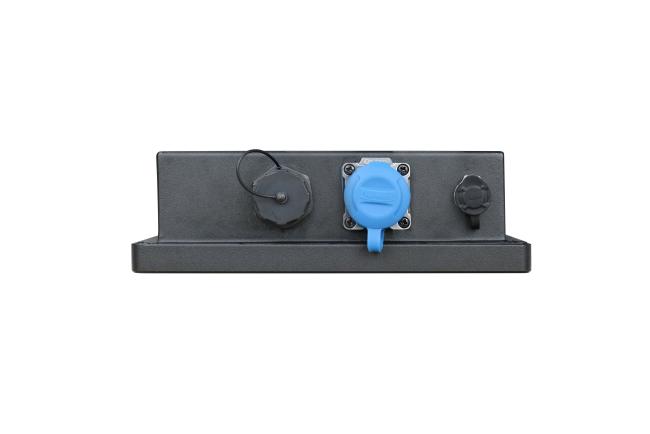

•Full waterproof I/O connectors protect from any particles, water, and corrosive agents
•Equipped with robust PCAP touch vandal proof and anti-scratch.
•CE, FCC, RoHS Compliance
OPTIONS
•Resistive Touch, AR/AG/AF Protective Glass
•High Brightness, Auto-dimming, Optical Bonding
•DC 9-36V Input, AC100-240V Input
•IP67,316L Stainless Steel Chassis, Aluminum Chassis
SPECIFICATION
| Panel | Cell Type/Glass Surface | Color TFT LCD |
| Aspect Ratio/Size | 11.6''/16:9 | |
| Active Area/Pixel Pitch | 256.32(W) × 144.18(H)/0.153× 0.1335mm | |
| Native Resolution/Colors | 1280 × 800 /16.7M | |
| Response TBrightness/Contrast | 300nits/800:1 | |
| Viewing Angle(Typical) | 25ms/89/89/89/89 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input / Output | Input Signal | HDMI (Waterproof Connector) |
| Power Input | DC 12V input (Waterproof Connector) | |
| Touch Panel | PCAP Touch Panel Waterproof USB Connector | |
| Power Consumption | ||
| 6W | ||
| Operating Temperature | -10℃~60℃ (20~70℃ Optional) | |
| Storage Temperature | -20℃~70℃ | |
| Relative Humidity | 10%~90% (non condensing) | |
