ITD 23.6''Round Touchscreen LCD AIO Display High Brightness 1920×1080 Industrial Grade for outdoor application, such as outdoor totem, outdoor kiosk, factory automation, military, transportation.
INTRODUCTION
The ITD 23.6" Round Touchscreen Monitor is a state-of-the-art, innovative display solution designed to offer a unique and engaging experience. Featuring a sleek circular form factor, this monitor is equipped with high-resolution, PCAP touchscreen technology that delivers smooth, precise touch response and vibrant visuals. Ideal for interactive applications such as gaming, retail, and digital signage, this monitor blends style and functionality, creating an immersive environment for users. Built with durability in mind, the 23.6" Round Touchscreen Monitor is perfect for high-traffic spaces and can be seamlessly integrated into various settings, including kids' corners, kiosks, and custom furniture.
FEATURES
Unique Round Design – A modern and eye-catching circular display that enhances visual appeal and engagement.
High-Resolution Display – Delivers crisp, vibrant visuals for an immersive user experience.
Projected Capacitive (PCAP) Touch Technology – Provides smooth, multi-touch functionality with high precision.
Durable & Reliable – Built with industrial-grade components for long-lasting performance in high-traffic environments.

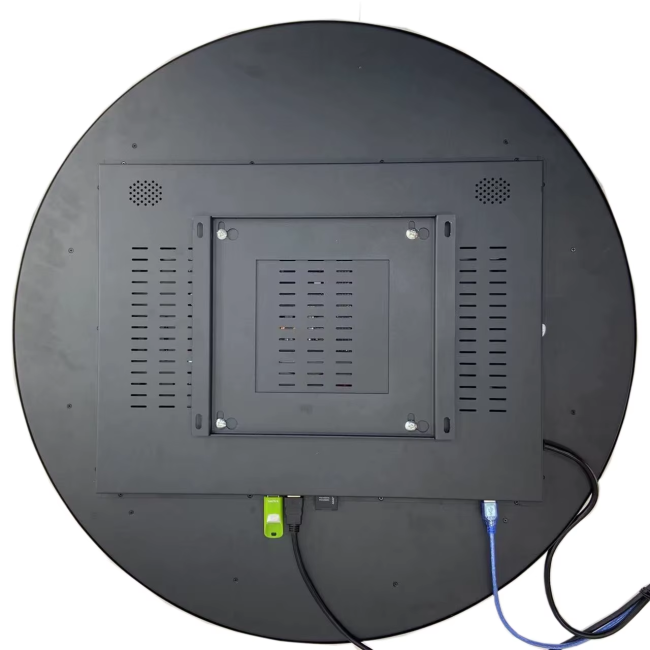

Versatile Installation Options – Supports VESA mount, or customized integration for various applications.
Wide Viewing Angles – Ensures clear and consistent image quality from different perspectives.
Multiple Connectivity Options – Equipped with VGA/DVI/HDMI, USB, and other standard interfaces for easy system integration. Anti-Scratch and Impact-Resistant Glass – Designed for durability and safety in public and interactive environments.
Robust Housing – Durable all-steel construction, designed for harsh and industrial environments.
Customizable Solutions Available – Tailor specifications such as brightness, touch interface, and housing to meet specific project needs.
CE, FCC, RoHS Compliance
Optional:
AR/AG/AF Tempered Glass, Optical Bonding
High Brightness, Auto-Dimming
AV, Display Port, RS232 Remote Control DC 12V Input
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT-LCD |
| Size/ Aspect Ratio | 23.6” | |
| Active Area/ Pixel Pitch | 599.424(W)×599.424(H) mm/0.4683 × 0.4683mm | |
| Native Resolution/ Colors | 1280×1280/16.7M | |
| Brightness/ Contrast | 700cd/㎡(1500 cd/㎡ optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 14ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’ Lifetime | |
| Input Signals | VGA/DVI/HDMI | |
| Convenient Features | Backlight Adjustment, Plug & Play, OSD Multi-Languages | |
| Power | Internal Power Supply, AC100~240V input | |
| Power Consumption | Operation/Power Saving | |
| Operating Condition | -20~60℃; 10%~80%(No-Condensation) | |
| Storage Condition | -20~70℃; 10%~80%(No-Condensation) | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
