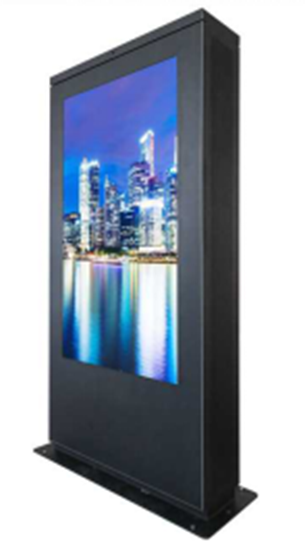

55'' Outdoor LCD Display IP65-Rated Water Proof Full Outdoor Display 4000 Nits Slim Robust Design
Price:
TBA
MOQ:
1PCS
Delivery Time:
5-15 Business Days
Brand:
ITD/OEM
Product Description
Features:
· Industrial design, waterproof galvanized steel housing with outdoor anti-rust painting. Adapted modular design for easy installation and maintenance.
· High brightness and anti-reflection laminated tempered glass(6.8mm) ensure excellent visibility under direct sunlight.
· 178°H/178°V ultra-wide viewing angle for better overall viewing performance.
· Auto-dimming with light sensor as per ambient light condition.
· With a high TNI panel(105℃) to prevent the display from blackening in direct sun light .
Technical Specification
Display
| Model | ITD55CMFIPLG1Ex |
| Screen Size | 55'' |
| Aspect Ratio | 16:9 |
| Resolution | 1920×1080 |
| Display Colors | 16.7M |
| Luminance | 2000nits, up to 4000nits |
| Viewing Angle(H×V) | 178°/178° |
| Display Mode | Portrait |
| Response Time | ≤ 8ms |
Connectivity
| Input | HDMI INx1(optional), TF card×1, RJ45×1, USB2.0×2, |
| Output | HDMI Out |
| Wi-Fi | Yes |
| 4G/5G | Optional |
| Touch Panel | Optional |
Power & Environmental Conditions
| Power Supply | AC110 or 220V , 50/60Hz |
| Consumption(max) | 400W |
| Operating Temperature | -20°C ~ 45°C (Ambient temp.) |
| Operating Humidity | 5%~90% |
| Protection Level | IP55 |
Mechanical Specification
| Waterproof Speakers | 2x10W |
| Switch Power Supply | Industrial Grade Power Supply |
| Lightning Protector | Three-level Lightning Protection |
| Leakage Protector | Protection Current 30mA |
Internal Player(optional)
| Processor | Rockchip RK3288, Quad core CPU up to 1.8GHz (RK3399/RK3568/RK3688, x86 based player optional) |
| RAM | 2GB |
| Storage | 16GB |
| Operating System | Android 9 or newer |
| Decoding Capacity | 4K or 2K@1080P |
Thermal Management
| Cooling | Intelligent Fan Cooling System High-Precision Filter, Filtering 99.9% Dust |
| Overheating protection | Yes |
