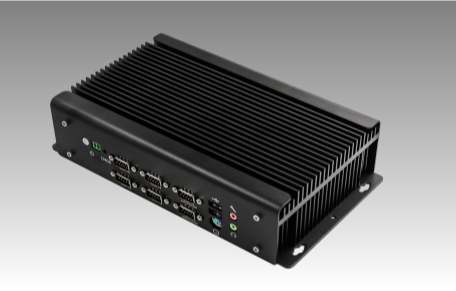

All-Aluminum Fanless Box PC LED Touch Monitor Industrial Box PC Embedded Box Computers
INTRODUCTION:
All-Aluminum Industrial Fanless Box PC, Supporting Soldered Onboard Intel i5/i78/9/10th Ger H Series CPU
FEATURES
■ Intel Core i5/i7 8/9/10th Ger H Series CPU
■ DDR4 SODIMM x2,Up to 32GB
■ 6 x RS-232 COM(2 x RS485/RS442)
■ 2 x Intel i225V LAN
■ Watchdog, one-key restore, diskless startup Fanless Operation
Specification
| system | ||
| Processor | Intel Core i5/i7 8/9/10th Ger H Series CPU | |
| System memory | DDR4 SODIMM x2, Up to 32GB | |
| Ethernet | 2 x 2.5GbE RJ45 Intel i225V | |
| I/O Port |
4 x USB3.0, 2 x USB2.0 6 x DB9 COM(2 x RS485/RS422) 3 x HDMI 1 x PS2(Keyboard & Mouse two in one) 14 x GPIO(7x input, 7x output) 1 x Power Button, 1 x Reset Button,1 x Clear CMOS Button 1 x 3pin wire, DC 9-36V input 1 x audio,1 x Min-in 1 x AT/ATX 2 x Antenna interface for WIFI/3G/4G |
|
| Storge Disk Driver |
1x MSATA 1x M.2 NVME 2280 1x HDD/SSD |
|
| Expansion Slot |
Mini-PCIe x 1 half size for WIFI Mini-PCIe x 1 full size with SIM Card for 3G/4G, WIFI, Bluetooth |
|
| OS support | Windows® 10,WES 10,LINUX | |
| Others | ▪Watchdog, one-key restore, diskless startup | |
| Power | ||
| DC input | DC input | |
| Mechanical | ||
| Construction | Aluminum | |
| Mounting | Desktop/ wall mounted | |
| Dimension | 240 x 150 x 65 mm | |
| Net Weight | 2 Kg |
