TFT 21.5” Open Frame High Brightness In One Touch Panel PC With CE FCC RoHS Compliance
ITD HMI Comfort Open Frame Panel PC is a fully integrated, high-performance industrial computing solution, designed to meet the demands of various applications. It
features a choice of either an ARM-based or x86-based PC system, ensuring compatibility with diverse industrial requirements. The system is seamlessly integrated with
an optional touchscreen and an industrial-grade, high-brightness LCD flat panel, delivering exceptional visibility even in challenging environments. Built with a sleek,
open-frame chassis, this panel PC series offers unmatched design flexibility. Its compact yet robust construction allows for seamless integration into various enclosures,
making it ideal for industrial automation, kiosks, self-service terminals, and other embedded applications. The open-frame design not only enhances aesthetic appeal
but also ensures easy installation and maintenance, providing customers with a reliable, long-lasting solution tailored to their needs.
FEATURES
• High-Performance Computing: Available with ARM-based or x86-based processors, ensuring compatibility with various industrial applications.
• Industrial-Grade LCD Display: High-brightness flat panel for superior visibility in both indoor and outdoor environments.
• Optional Touchscreen: Supports PCAP or resistive touch for precise and responsive operation.
• Open Platform for IoT & M2M Applications: Enables seamless integration into HMI/SCADA systems and other industrial automation solutions.
• Bezel-Less Open Frame Design: Provides a modern and flexible solution for embedded installations.
• Rugged Steel Construction: Built to withstand harsh industrial conditions, ensuring durability and reliability.
• Long Product Life Cycle: Designed for extended availability to support long-term project rollouts and servicing.
• Easy Installation & Multiple Mounting Options: Supports 75/100 mm VESA mount and side brackets for flexible integration.
• Energy-Efficient & Optional Fanless Operation: Reduces power consumption while ensuring silent, reliable performance.
• Regulatory Compliance: CE, FCC, and RoHS certified for global industrial standards.
OPTIONALS
| • Anti-Glare / Anti-Reflective Tempered Glass | • Optical Bonding |
| • PCAP Touch Screen ,Resistive Touch Screen, IR Touch Screen, AR/AG/AF/Anti-UV Coating | • WIFI, 4G/5G, Bluetooth, GPS |
| • Speakers, Auto-Dimming Light Sensor | • DC 24V, DC9-36V, AC100-240V |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 21.5” 16:9 | |
| Active Area/ Pixel Pitch | 476.64(H×248.25(V)mm/0.24825×0.24825mm | |
| Native Resolution/ Colors | 1920×1080/16.7M | |
| Brightness/ Contrast | 1000cd/㎡(1500cd/㎡ optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz(RK3399/RK3568/3576/RK3588 optional) | 2GB; 4GB/8GB Optional | Intel® Core i3/i5/i7(4th~13th Generation optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB, DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD, DDR4 SODIMM×1(Intel J4125/J6412) | 1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |

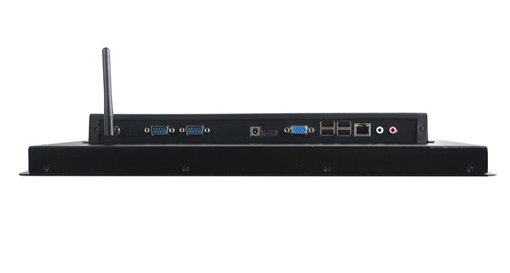

| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB |
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB |
2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS | Android 7.1/8/10/11/12/13/14, etc. Linux Ubuntu(optional) |
Windows 7/10, Linux Windows 11(available for J4125/J6412) |
Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 30~60W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% |
