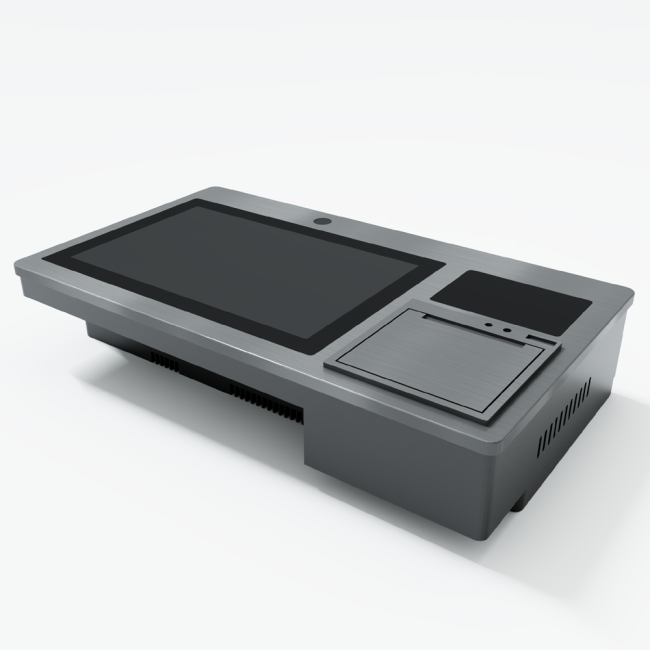

10.1" touch kiosk NFC RFID card reader IP65 pure flat surface aluminum front bezel bulit-in camera and thermal printer face recognition
10.1" touch kiosk NFC RFID card reader IP65 pure flat surface aluminum front bezel bulit-in camera and thermal printer face recognition
FEATURES
•Designed with a seamless, flat front panel to prevent dust and debris buildup at the edges and corners, ensuring easy maintenance and long-term reliability.
•Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
•Enhance functionality with an integrated NFC reader for secure access control and data transfer, and a USB camera for image capture and video conferencing. •The touch screen is highly responsive to even the lightest touch, providing a smooth and intuitive user experience.
•With NEMA 4, IP52, IP54, and IP65 ratings for the front panel, the device is built to withstand challenging conditions, making it suitable for use in harsh environments.
▪ Featuring an aluminum front bezel and steel chassis, this PC is engineered to endure tough industrial settings.
▪CE, FCC, and RoHS compliant, meeting essential safety and environmental standards.
|
Panel |
Cell Type/Glass Surface |
TFT |
|
Size/Aspect Ratio |
10.1”/16:10 |
|
|
Active Area/Pixel Pitch |
216.96(H) ×135.6(V)mm/0.1695× 0.1695mm |
|
|
Native Resolution/Colors |
1280×800/16.7M |
|
|
Brightness/Contrast Ratio |
350cd/㎡/800:1 |
|
|
Response Time/Viewing Angles |
16ms/85/85/85/85 |
|
|
Light Source |
LED Backlight with 50000Hours’Lifetime |
CONFIGURATION
|
System |
CPU |
Intel® Celeron J1900 2.0 Processor |
|
BIOS |
AMI |
|
|
Chipset |
Intel Bay Trail |
|
|
Graphic Chipset |
Intel HD Graphics(By CPU) |
|
|
Memory |
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
|
|
Storage |
1×mSATA, 1×SATA |
|
|
Input / Output |
Serial Ports |
1×COM |
|
USB Ports |
2× USB 2.0 |
|
|
VGA Port |
1× VGA Output |
|
|
HDMI Port |
1×HDMI Output |
|
|
Audio Card |
Realtek ALC662 Line-Out/ /MIC IN |
|
|
LAN |
1×Realtek RTL8111 Gigabit LAN (Dual LAN optional) |
|
|
Power |
Power Input |
DC 12V |
|
Power Output |
DC 12V Output (DC+ DC- GND) |
|
|
Operation/Power Saving |
20W |
|
|
OS Support |
Win7/Win Embedded/Win 10/Win IoT/Win 11/Linux |
|
|
Environmental Considerations |
Operating Temperature |
-10~60℃(-20~70℃ optional) |
|
Storage Temperature |
-20~70℃ |
|
|
Relative Humidity |
10%~90%(non-condensing) |
|
|
Order Information |
10.1” Panel PC with PCAP Touch+NFC Reader /ITD101PPCT5XJ1-NFC |
|
|
10.1” Panel PC with Resistive Touch+NFC Reader /ITD101PPCT1XJ1-NFC |
||
OPTIONALS
•AR/AG/AF Tempered Glass, Optical Bonding •DC9~36V input, AC100~240V input, PoE
•WiFi, Bluetooth, 4G Module, GPS •Printer, Fingerprint, MIC Built-in, VESA Bracket
