15.6" zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6" zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel for POS/Kiosk/automation

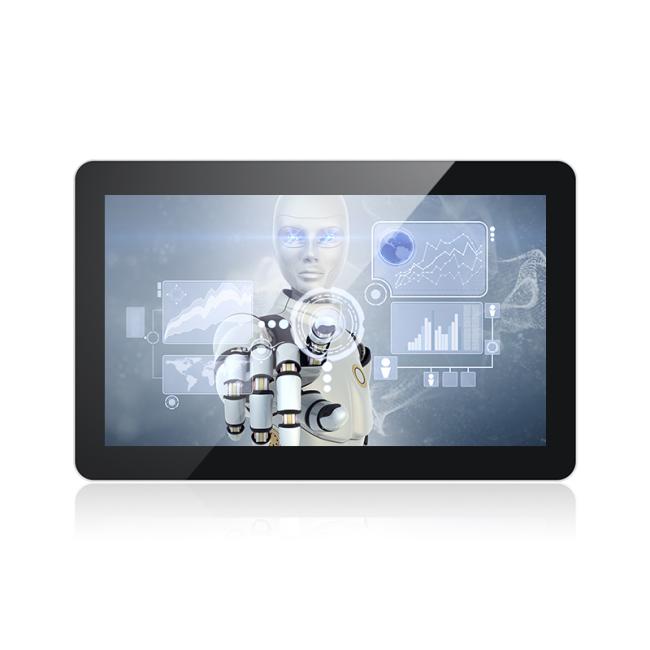

ITD 15.6” Open Frame PCAP Touch Monitor is a fully-integrated, ready-to-use solution designed for industrial and commercial applications. Featuring Projected Capacitive multi-touch technology in a high-quality LCD panel, it offers a true flat front surface with an open frame design, making it ideal for integration into kiosks, machines, or custom enclosures.
BENEFITES
- All steel/aluminum construction provides rugged frame for public use environments
- Ten independent touch points, plug and play
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- Responds to a light touch in activating response
- Easy-to-clean surface without bezels
- Long lasting product cycle for continuity thru all phases of project
Specifications:
|
Panel |
Cell Type/Glass Surface |
TFT |
|
Size/ Aspect Ratio |
15.6” 16:9 |
|
|
Active Area/Pixel Pitch |

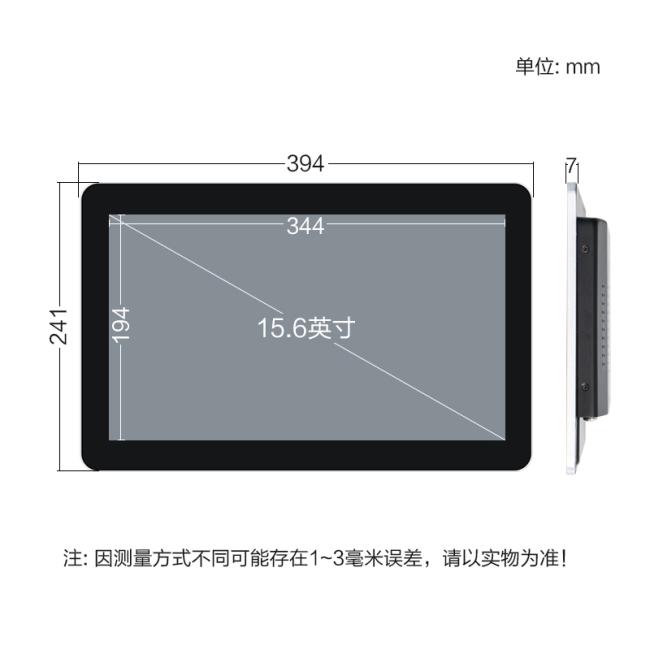

344.16(W)×193.59(H)mm/0.17925×0.17925mm |
|
|
Native Resolution/Colors |
1920×1080/262K |
|
|
Brightness/Contrast |
400cd/㎡/800:1 |
|
|
Response Time/ Viewing Angle |
30ms/85/85/85/85 |
|
|
Light Source |
LED Backlight with 30000Hours’Lifetime |
|
|
Input Signals |
VGA, DVI, HDMI |
|
|
Touch Panel |
Projected Capacitive Touch Panel, USB Port |
|
|
Power Source |
External Power Supply with Universal/Auto-Sensing, DC12V Input |
|
|
Power Consumption |
Operation/Power Saving |
Below 10W |
|
Environmental Condition |
Operating Temperature Range |
0~50℃ |
|
Storage Temperature Range: |
-20~60℃ |
|
|
Operating/Storage Humidity: |
10%~90%(Non-Condensing) |
|
|
Vibration |
50 ~ 500 Hz, 1.5G, 0.15mm peak to peak(optional) |
|
|
Shock |
10G/Peak (11ms) (optional) |
|
|
Key Control |
Power on/off with LED, Menu, Select, Adjustment (Right/Left) |
|
|
Order Information |
15.6” Open Frame Monitor with Tempered Glass No Touch /ITD156OFG1K2 |
|
|
15.6” Open Frame PCAP Touch Monitor/ITD156OFT5K2 |
||
Images:
