32" ultra-thin IP65 rating waterproof full outdoor all weatherproof lcd display, brightness 1000~3000nits
32" IP65 rating waterproof full outdoor all weatherproof lcd display,brightness 1000~3000nits
ITD’s 32” Ultra-Thin Landscape Wall-Mount Outdoor Display is a compact yet powerful solution designed for demanding outdoor applications where space, visibility, and reliability are key. With a slim, modern design and full IP65-rated waterproof and dustproof protection, it is ideal for fixed installations in outdoor retail signage, transportation systems, building entrances, and smart city infrastructures. This 32-inch display features optical bonding for enhanced screen clarity and touch accuracy, as well as ultra-high brightness up to 3000 nits, ensuring excellent readability even under direct sunlight. It supports automatic brightness adjustment, operation with waterproof fans and wide temperature endurance, making it maintenance-free and perfectly suited for 24/7 outdoor use. The display also supports touch screen, and polarized sunglasses compatibility, delivering a seamless and user-friendly viewing experience in any lighting condition.
Specs
IP65 Full Outdoor Wall-Mounting LCD Display |
||
| Model Name | ITD32CMODIPWxx | |
| IP Rating | IP65 | |
Single Media Player/Monitor Option |
||
| Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS |
1 ×HDMI Input 2 ×USB 2.0, 1×TF Card Slot |
|
PC Systems Options |
||
| ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional) | X86 Based | X86 Based |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel? Celeron J1900/J4125/J6412 | CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional) |
| Chipset: Rockchip | Chipset: Intel? SOC | Chipset: Intel? SOC |
| Memory: 2G, max. 8G | Memory: 4GB(Max. 16GB) | Memory: 4GB(Max. 64GB) |
| Storage: 16G, max. 256G | Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412) | Storage: 1×MSATA, 1×SATA, 1×M.2 |
| 1×HDMI Output | 1×HDMI Output(optional) | 1×HDMI Output(optional) |
| 1×USB 2.0 | 2×USB | 2×USB |
| 1×mini-SD slot(optional) | 2×COM(RS232/422/485) (optional) | 2×COM(RS232/422/485) (optional) |
| 1×LAN | 1×LAN | 1×LAN |
| 1×Audio Out(optional) | 1×Audio Out, 1×MIC In(optional) | 1×Audio Out, 1×MIC In(optional) |
| Expansion: USB, COM port | Expansion: USB, COM | Expansion: USB, COM |
| Android, Linux Supported | Win 7/10/11/Embedded/IoT, Linux Supported | Win 7/10/11/Embedded/IoT, Linux Supported |
LCD Panel |
||
| Screen Diagonal (Inch) | 32” | |
| Display Active Screen Size (mm) | 698.4(W)×392.85(H) | |
| Pixel Pitch(mm) | 0.36375×0.36375 | |
| Aspect Ratio | 16:9 | |
| Physical Resolution | 1920×1080 | |
| Response Time | 14ms | |
| Colors | 16.7M | |
| Brightness (cd/m2) | 1500 cd/m2(2000~3000cd/m2 optional) | |
| Contrast Ratio | 1000:1 | |
| View Angels | 89/89/89/89 | |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | |
Touch Panel Available for Network Version |
||
| Touch Options | PCAP Touch | |
| Touch Drivers | Plug and Play | |
Operation |
||
| Operating Temperature Range | -30~50°C | |
| Humidity Range (RH) | 10-90% | |
| 24/7/365 Use | Supported | |
Structure |
||
| Housing Material | Galvanized Steel Sheet with Outdoor Anti-rust Painting | |
| Surface Coating | Anti-Reflective/Anti-UV Coating | |
| Mounting | Wall Mounting | |
Power /Speakers |
||
| Power Indicator | Green LED | |
| Power Input | Internal Power Supply, AC 100V~240V | |
| Power Consumption Speakers |
85W 2×8W |
|
Order Information |
||
| 32”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with HDMI input | ITD32CMODIPWxx01 | |
| 32”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Android Player | ITD32CMODIPWxxEx | |
| 32”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Win Player | ITD32CMODIPWxxJx | |

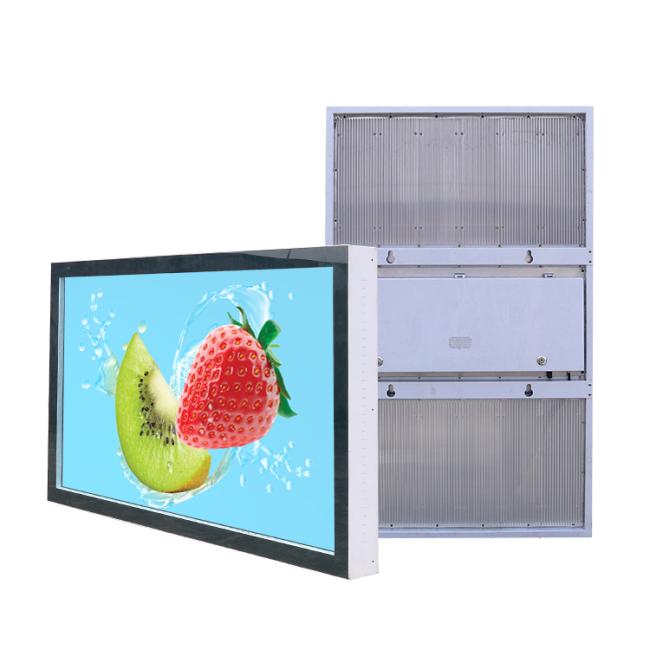

Product Image
