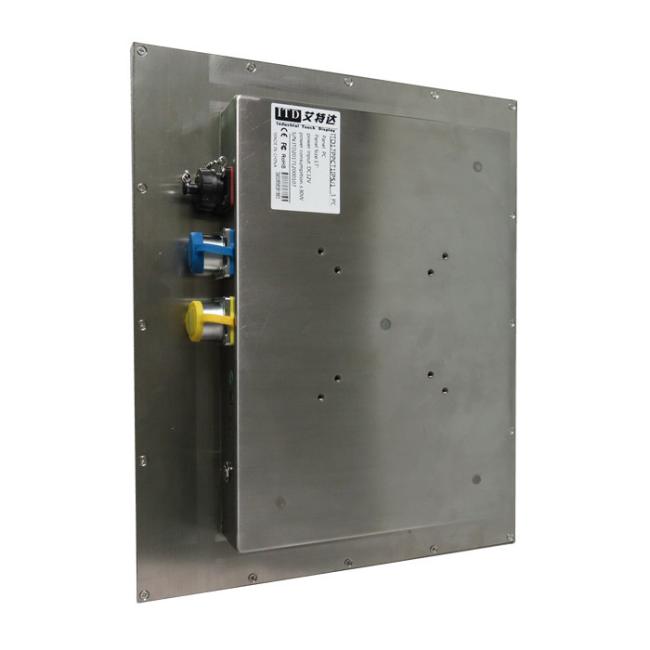

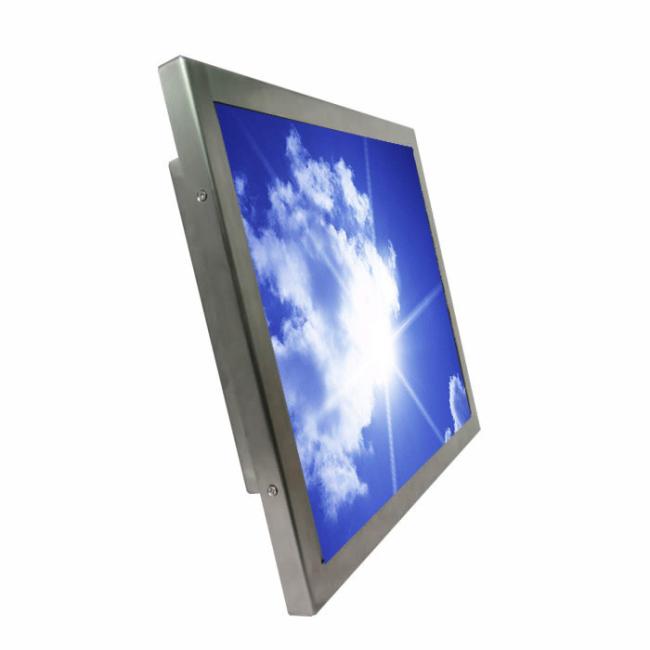

15 inch1500nits outdoor all weatherproof stainless steel full IP66/IP67 HDMI touchscreen LCD monitor displays
15 inch1500nits outdoor all weatherproof stainless steel full IP66/IP67 HDMI touchscreen LCD monitor displays
ITD’s rugged sunlight readable full IP66 LCD displays are an ultra-rugged solution for harsh and demanding applications where corrosion resistance and protection from environmental conditions is a must. Designed for extreme environments and integrated with the latest optical technology for supreme sunlight readability, this series provides reliable, high bright display with exceptional clarity, wide viewing angles, and extensive operational temperatures.
FEATURES
-Sunlight and Daylight Readable
-Touch Screen (PCAP, IR, Resistive optional)
-DC Vehicle/Marine Power Supply Support
-Waterproof All Weather Operation
- VGA and/or HDMI Inputs
-Brightness Control, Light Sensor (optional, 0-100%)
-Composite Inputs Optional(Camera)
Applications for Rugged Touchscreen LCD Monitors
-Food processing plant automation control
-Kitchen application
-Chemical plant or laboratory
-Liquor Factory
-Clinical area / pharmaceutical / medical
-Operating and monitoring in Oil, Gas & Energy industry
-Industrial automation control in slaughtering house
-Railway/Transportation
|
Full IP65/IP66 High Brightness Touchscreen Monitor
|
|||
| Model Name | ITD15CMG1IPHBA1 | ||
| IP Rating | Full IP65/IP66(IP67 optional) | ||
|
LCD Panel
|
|||
| Screen Diagonal (Inch/cm) | 15” | ||
| Display Active Screen Size (mm) | 304.128(H) ×228.096(V) | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 1024×768 | ||
| Maximum Resolution Supported | 1920×1080 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 1000 cd/m² | ||
| Contrast Ratio | 700:1 | ||
| View Angels | 85/85/80/80 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||
|
Touch Panel
|
|||
| Touch Options | Resistive, PCAP | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Input / Output
|
|||
| Video Input | 1 × VGA | ||
| N/A | |||
| 1 × HDMI(Optional) | |||
| Audio | N/A | ||
| Touch Connector | 1 × USB(Optional) | ||
| Power Connector | 1 × DC2.0 | ||
|
Operation
|
|||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power
|
|||
| Power Indicator | N/A | ||
| Power Input | DC 12V | ||
| Power Consumption | 30W | ||
|
Order Information
|
|||
| 15”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing | ITD15CMT1IPHBA1 | ||
| 15”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing | ITD15CMT5IPHBA1 | ||
| 15”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing | ITD15CMT1IPHBS1 | ||
| 15”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing | ITD15CMT5IPHBS1 | ||
| 15”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing | ITD15CMG1IPHBA1 | ||
| 15”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing | ITD15CMG1IPHBS1 | ||
