17" Industrial Panel Mount Monitor With Resistive Pcap IR SAW Touchscreen
panel mount 17" lcd monitor high brightness lcd display with resistive pcap IR SAW touchscreen
Specifications:
|
Panel Mount High Brightness LCD Monitor
|
|
| Model Name | ITD17PMN1HB02 |
| IP Rating | IP65 Front Panel |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 17” |
| Display Active Screen Size (mm) | 337.92 (H) ×270.34(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1280×1024 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 1000 cd/m² |
| Contrast Ratio | 800:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 33W |
|
Order Information
|
|
| 17”1000nits Panel Mount LCD Monitor with Resistive Touch | ITD17PMT1HB02 |
| 17”1000nits Panel Mount LCD Monitor with IR Touch | ITD17PMT2HB02 |
| 17”1000nits Panel Mount LCD Monitor with SAW Touch | ITD17PMT3HB02 |
| 17”1000nits Panel Mount LCD Monitor with PCAP Touch | ITD17PMT5HB02 |
| 17”1000nits Panel Mount LCD Monitor with Tempered Glass | ITD17PMG1HB02 |
| 17”1500nits Panel Mount LCD Monitor with Resistive Touch | ITD17PMT1HB01 |
| 17”1500nits Panel Mount LCD Monitor with IR Touch | ITD17PMT2HB01 |
| 17”1500nits Panel Mount LCD Monitor with SAW Touch | ITD17PMT3HB01 |
| 17”1500nits Panel Mount LCD Monitor with PCAP Touch | ITD17PMT5HB01 |
| 17”1500nits Panel Mount LCD Monitor with Tempered Glass | ITD17PMG1HB01 |
ITD’s high bright sunlight readable LCD monitor displays with LED Enhanced displays have a dimming ratio of 200:1, meaning that the luminance can be adjusted from 100% down to 0.5%. Dimming capabilities are beneficial because lowering the backlight luminance will result in a lengthening of the backlight life. It also lowers the power consumption and the related thermal management issues.
FEATURES
- 17" Very Bright Active Matrix Sunlight Readable TFT Display, 1000 nits (cd/m2)
- Optical Bonding for Better Readability in Sunlight Optional
- High-Luminance Solid-State LED-enhanced Backlighting
- Rugged Black Powder-Coated Steel Chassis
- A multitude of Video Inputs: VGA, DVI-I Pin, HDMI
- High Contrast Ratio & Definition, Outstanding Vivid Color & Image Quality

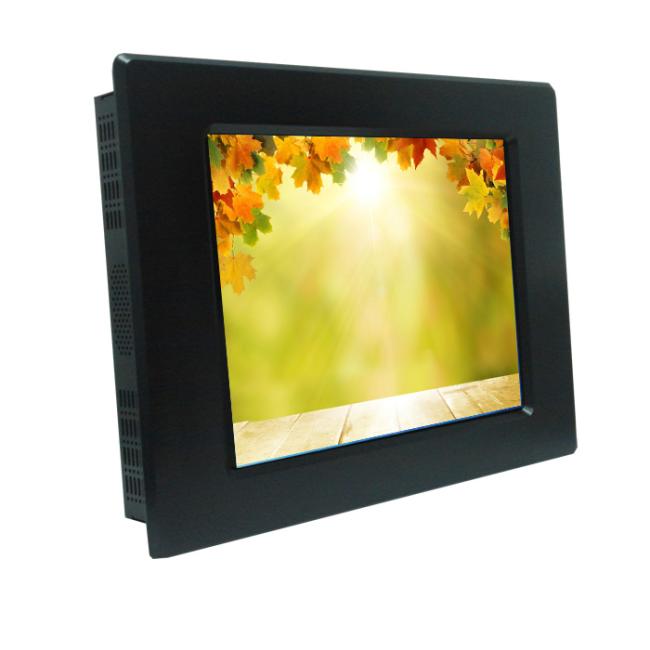

Product Display:
