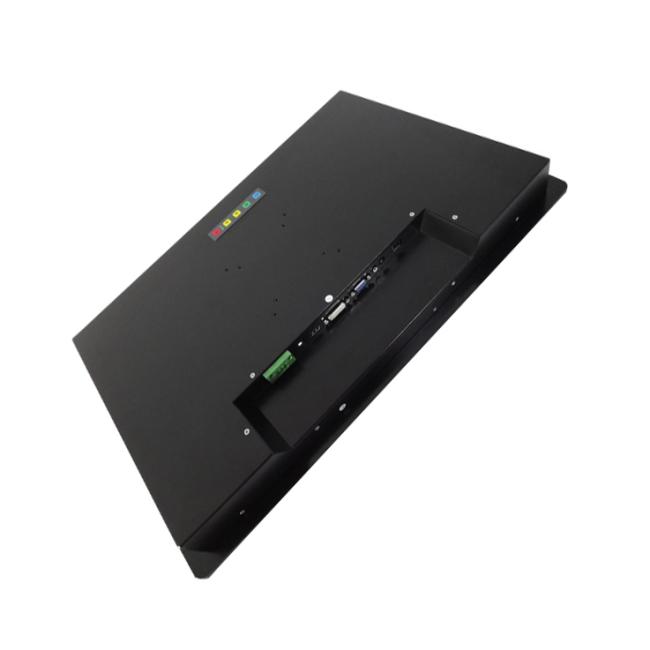

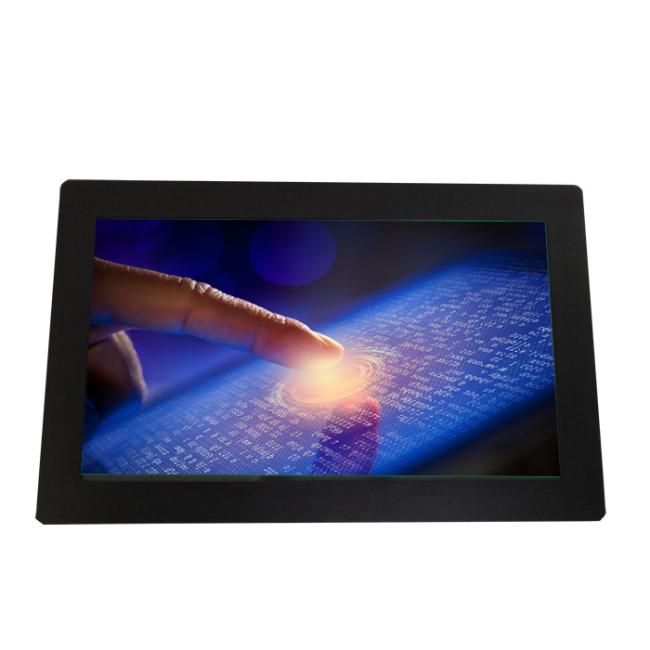

Rugged Industrial Panel Mount Monitor High Definition With IR / PCAP / Resistive Touch
21.5 inch rugged industrial panel mount LCD monitor display with IR touch ,PCAP touch, Resistive touch optional
ITD industrial grade displays are ideally suited for environments where dust, dirt, moisture, splashing water, hose directed spray, and various other caustic contaminants like oil, chemicals, etc. are commonplace.These panel mount NEMA 4 LCD monitors can be configured with a number of add-on optional features like Touch Screen, Optical Bonding, Extended Operational Temperature Capabilities, and many more.
BENEFITES
-Superior picture quality, stunning display
-Rugged Panel Mount Design
-NEMA 4X rated for wash-down applications
-High temperature, shock and vibration specs
-Tempered Glass or Touch Screen Window
-High Reliability with field MTBFs greater than 50,000 hours
-1.5-year warranty!
|
Panel Mount LCD Monitor
|
|
| Model Name | ITD21PMN101 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch) | 21.5” |
| Display Active Screen Size (cm) | 476.64(H)×268.11(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 26.25W |
|
Order Information
|
|
| 21.5”Panel Mount LCD Monitor with Resistive Touch | ITD21PMT101 |
| 21.5”Panel Mount LCD Monitor with IR Touch | ITD21PMT201 |
| 21.5”Panel Mount LCD Monitor with SAW Touch | ITD21PMT301 |
| 21.5”Panel Mount LCD Monitor with PCAP Touch | ITD21PMT501 |
| 21.5”Panel Mount LCD Monitor with Tempered Glass | ITD21PMG101 |
APPLICATION
