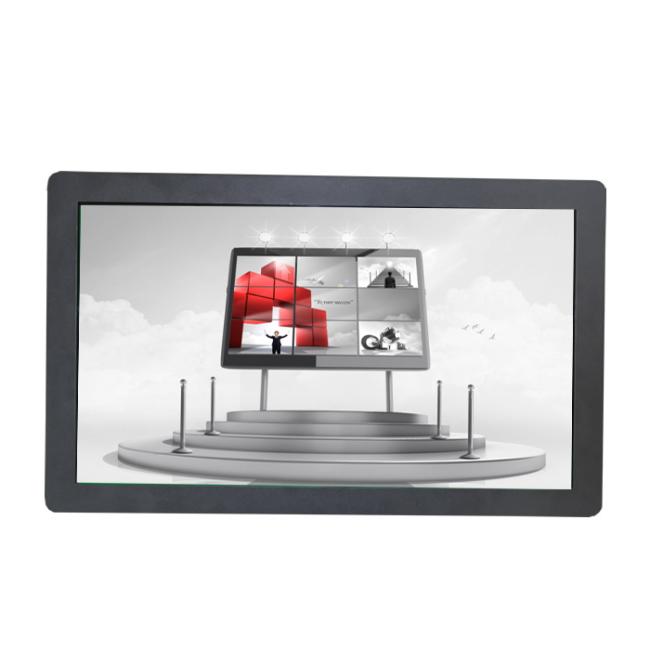

1920*1080 Industrial Touch Panel , Industrial Grade Touch Screen Monitor 27 Inch
27 inch industrial chassis LCD touch monitor displays with VGA,DVI, HDMI input, IP65 toughened glass front
ITD Industrial chassis LCD Monitors are designed for those industrial and process control environments that require a stand-alone wall mounted display that does not need a complete seal from oil, dust, and other contaminants. These cost-effective LCD monitors support fast and slow-scan horizontal frequencies and are available with optional resistive, IR, SAW or capacitive touch screens.
BENEFITES
- Optional touchscreens like resistive, IR, SAW, PCAP

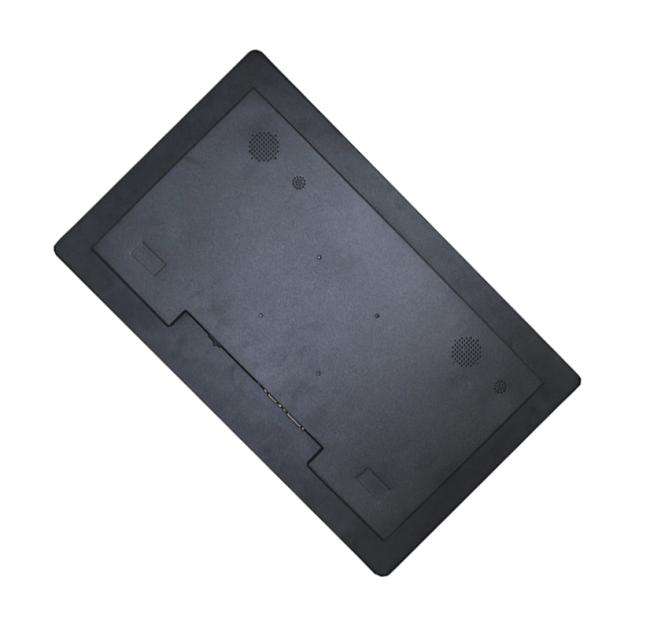

- Easy-to-install cabinet and open frame rear-mount display
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
|
Chassis LCD Monitor
|
|
| Model Name | ITD27CMN1M1 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch) | 27” |
| Display Active Screen Size (cm) | 597.888(H)×336.312(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 1000:1 |
| View Angels | 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
|
Touch Panel
|
|
| Touch Options | IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | AC 110V-240V |
| Power Consumption | 42.5W |
|
Order Information
|
|
| 27”Chassis LCD Monitor with IR Touch | ITD27CMT201 |
| 27”Chassis LCD Monitor with SAW Touch | ITD27CMT301 |
| 27”Chassis LCD Monitor with PCAP Touch | ITD27CMT501 |
| 27”Chassis LCD Monitor with Tempered Glass | ITD27CMG101 |
APPLICATION
