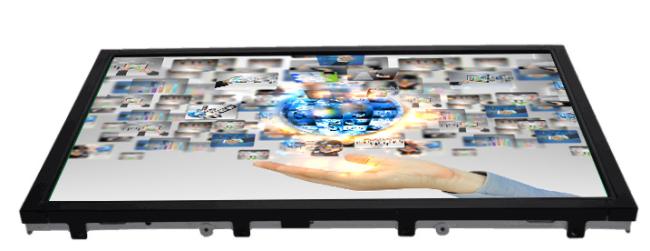

18.5 inch industrial rear mount SAW touchscreen LCD Monintor with VGA,DVI,HDMI input for industrial control
18.5 inch industrial rear mount SAW touchscreen LCD Monintor Display with VGA,DVI,HDMI input for industrial control
ITD industrial rear mount touch monitors provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial rear mount touch monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder applications. It’s an excellent and much higher cost-effective solution as an alternative of ELO touch monitors.
BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Robust surface acoustic wave touch screen integrated
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and chassis VESA-mount display
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
|
Rear Mount PCAP Touchscreen Monitor
|
|
| Model Name | ITD18OFT3E1 |
| IP Rating | IP65 Front Panel |
|
LCD Panel
|
|
| Screen Diagonal (Inch) | 18.5” |
| Display Active Screen Size (cm) | 409.8(H)×230.4(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1366×768 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
|
Touch Panel
|
|
| Touch Technology | Surface Acoustic Wave Touch |
| Touch Drivers | Windows, Linux, Android |
| Touch Life | 50,000,000times/click |
| Surface Hardness | 7H |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 17.5W |
|
Optional
|
|
| Side Mounting Brackets | |
APPLICATION
