10.4'' Industrial Touch Screen Monitor Panel Mount With IP65 Front , Anti - Vandalism
10.4 inch industrial panel mount ture flat PCAP multi touch screen monitor display with IP65 front , anti-vandalism
ITD industrial panel mount LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Industrial panel mount LCD monitors are ideal for system integrators, kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.
BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- True flat surface, easy to clean
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
|
Flat Bezel Panel Mount LCD Monitor
|
|
| Model Name | ITD10PMN1X1 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch) | 10.4” |
| Display Active Screen Size (cm) | 210.4(H)×157.8(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 800×600 or 1024×768 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| View Angels | 80/80/70/70 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, PCAP |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|

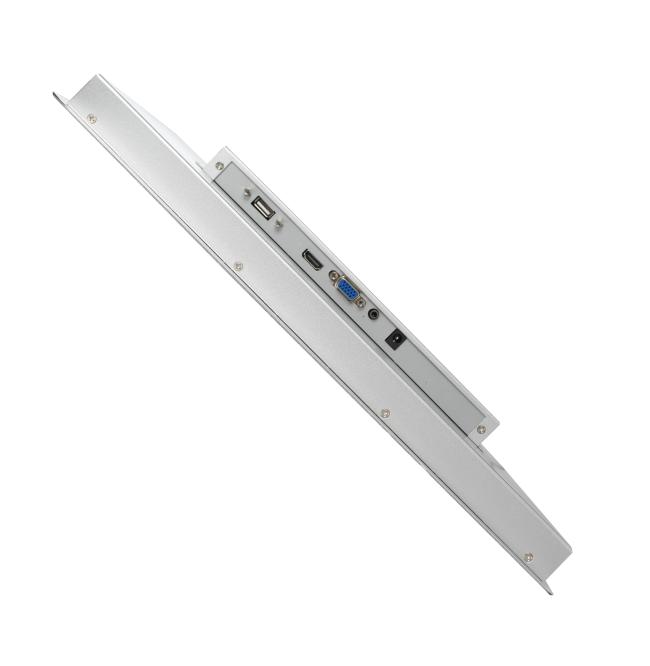

Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 17.5W |
|
Order Information
|
|
| 10.4”Panel Mount LCD Monitor with Resistive Touch | ITD10PMT1X1 |
| 10.4”Panel Mount LCD Monitor with PCAP Touch | ITD10PMT5X1 |
| 10.4”Panel Mount LCD Monitor with Tempered Glass | ITD10PMG1X1 |
APPLICATION
