24 Inch Industrial Rugged LCD Monitor IP67 Waterproof 400nits Brightness
24 inch industrial Rugged stainless steel full IP66/IP67 waterproof touchscreen LCD monitor displays for industry
ITD Full IP66 rugged LCD monitors come with stainless steel or aluminum housing. Its complete protection is primarily achieved thanks to the resistant housing: the stable aluminum profiles covering the industrial monitor keep mechanical influences, dirt, dust and moisture at bay. The same protection is provided for the mains adapter and for the connections, which are located entirely within the monitor housing. The cables can be fed in from either above or below the monitor through leak-tight grommets.
|
Full IP65/IP66 Touchscreen Monitor
|
|
| Model Name | ITD24CMG1IP*1 |
| IP Rating | Full IP65/IP66(IP67 optional) |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 24” |
| Display Active Screen Size (mm) | 531.36(H) ×298.89(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, PCAP |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| N/A | |
| 1 × HDMI(Optional) | |
| Audio | N/A |
| Touch Connector | 1 × USB(Optional) |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | N/A |
| Power Input | DC 12V |
| Power Consumption | 40W |
|
Order Information
|
|
| 24”Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing | ITD24CMT1IPA1 |
| 24”Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing | ITD24CMT5IPA1 |
| 24”Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing | ITD24CMT1IPS1 |
| 24”Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing | ITD24CMT5IPS1 |
| 24”Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing | ITD24CMG1IPA1 |
| 24”Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing | ITD24CMG1IPS1 |
FEATURES
- Sunlight and Daylight Readable
- Touch Screen (PCAP, IR, Resistive optional)
- DC Vehicle/Marine Power Supply Support
- Waterproof All Weather Operation
- VGA and/or HDMI Inputs
- Brightness Control, Light Sensor (optional, 0-100%)
- Composite Inputs Optional(Camera)
APPLICATION

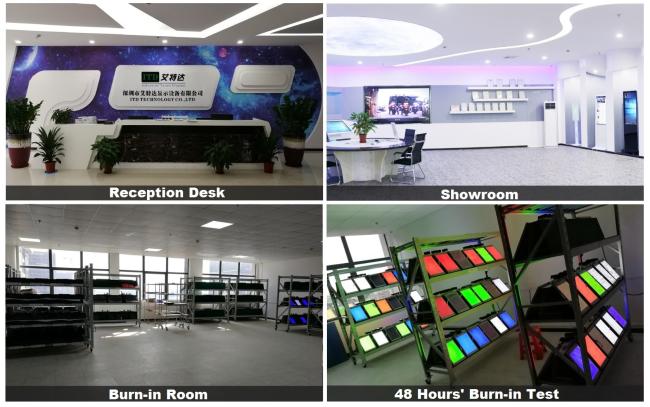

OUR FACTORY
