Flush Mount Pcap Industrial Touch Screen Monitor True Flat Vandal Proof 10-21.5"
Price:
TBA
MOQ:
1PCS
Delivery Time:
5-15 Business Days
Brand:
ITD/OEM
Product Description
flush mount pcap touch monitor true flat Vandal Proof 10-21.5" lcd screen
| Model | ITD101OFT5Y1 | ITD10OFT5Y1 | ITD12OFT5Y1 | ||
| Size | 10.1” | 10.4” | 12.1” | ||
| Active Area | 216.96(H)x 135.6(V) | 211.2(W)*158.4(H) | 246.0(H) x 184.5(V) | ||
| Pixel Pitch | 0.1695mm | 0.264mm | 0.3075mm | ||
| Contrast Ratio | 800:1 | 500:1 | 500:1 | ||
| Resolution | 1280 x 800 | 800 x 600 or 1024 x 768 | 800 x 600 or 1024 x 768 | ||
| Brightness | 350nits | 300nits | 300nits | ||
| Viewing Angles | 85/85/85/85 | 70/70/60/70 | 70/70/60/60 | ||
| Response Times | 10ms | 35ms | 35ms | ||
| Colors | 16.7M | 262K | 262K | ||
| Backlight | LED | LED | LED | ||
| Model | ITD15OFT5Y1 | ITD156OFT5Y1 | ITD17OFT5Y1 | ||
| Size | 15” | 15.6” | 17” | ||
| Active Area | 304.12(H)x 228.09(V) | 344.232(H)x193.536(V) | 337.92(H) x 270.33(V) | ||
| Pixel Pitch | 0.297mm | 0.252mn | 0.264mm | ||
| Contrast Ratio | 700:1 | 500:1 | 1000:1 | ||
| Resolution | 1024 x 768 | 1366 x 768 or 1920 x 1080 | 1280 x 1024 | ||
| Brightness | 250nits | 300nits | 250nits | ||
| Viewing Angles | 80/80/60/70 | 80/80/80/80 | 85/85/80/80 | ||
| Response Time | 35ms | 6ms | 5ms | ||
| Colors | 16.2M | 16.2M | 16.7M | ||
| Backlight | LED | LED | LED | ||
| Model | ITD18OFT5Y1 | ITD19OFT5Y1 | ITD21OFT5Y1 | ||
| Size | 18.5” | 19” | 21.5” | ||
| Active Area | 409.8(H) x 230.4(V) | 376.32(H) x 301.06(V) | 476.64(H)x248.25(V) | ||
| Pixel Pitch | 0.300mm | 0.294mm | 0.248mm | ||
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | ||
| Resolution | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | ||
| Brightness | 250nits | 250nits | 250nits | ||
| Viewing Angles | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 or 89/89/89/89 | ||
| Response Time | 3.6ms | 5ms | 5ms | ||
| Colors | 16.7M | 16.7M | 16.7M | ||
| Backlight | LED | LED | LED | ||
| SPECIFICATION | |||||
| Inputs | VGA, DVI, HDMI | ||||
| Convenient Features | Backlight Adjustment, Plug & Play, OSD Multi-Languages | ||||
| Power Source | External Power Supply with Universal/Auto-Sensing, DC 12V | ||||
| Power Consumption | Operation/Power Saving | TBA | |||
| Touch Panel | Projected Capacitive Touch Panel with 10 Multi Touch Points | ||||
| USB/RS232 port | |||||
| 7H Surface Hardness, Vandal Proof | |||||
| Plug and Play in Windows XP/7/8/10; Linux, Mac, Android with driver | |||||
| Key Control | Power on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left) | ||||
| Operating Temperature | -1 0℃-60℃ | ||||
| Storage Temperature | -20℃-70℃ | ||||
| Relatively Operating Humidity | 10% - 90% | ||||
| Accessories | Power Supply, VGA/DVI/HDMI cable, USB Cable, Mounting Brackets(optional) | ||||

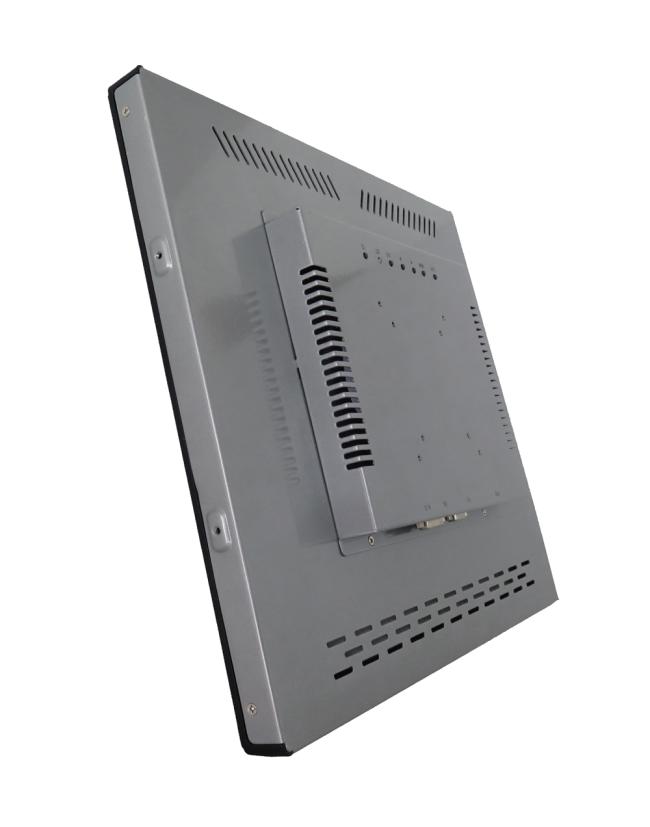

Product Image of industrial touch screen monitor:
