11.6" Pcap Industrie PC Touchscreen Ip65 X86 Based Anti - Vibration 400 Nits

Price Negotiable

Price: TBA

MOQ: 1PCS

Delivery Time: 15-20 Business Days

Brand: ITD/OEM

Product Description

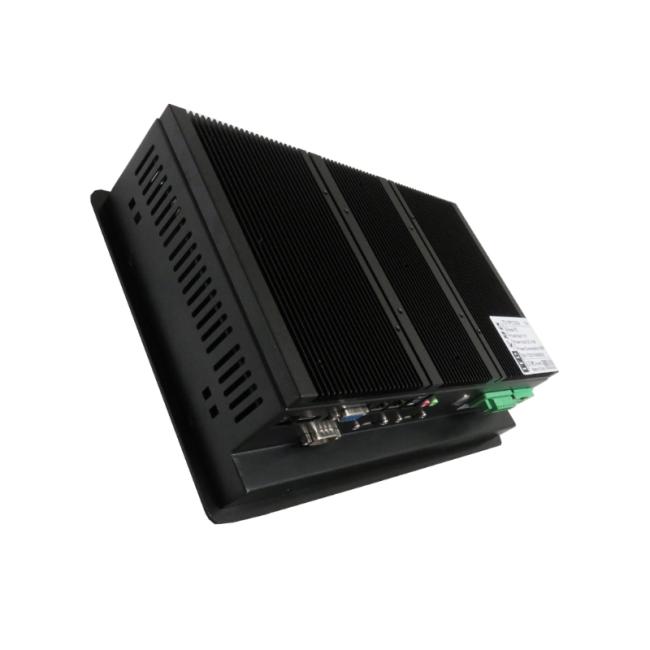

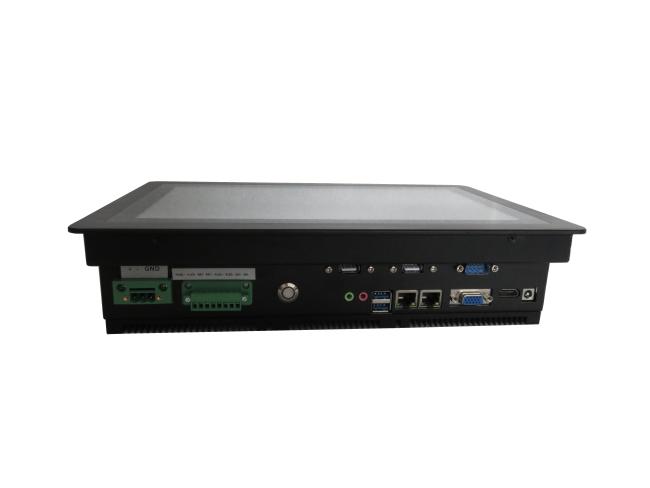

11.6" pcap touch screen industrial pc panel mounted IP65 front X86 based Anti-Vibration Anti-Shock

SPECIFICATIONS

System	CPU	Intel® Core i3/i5/i7 Processor
	BIOS	AMI
	Chipset	Intel® SoC Integrated
	Memory	2 x DDR4 SO-DIMM slots up to 16GB 2133MHz
	Storage	64G SSD up to 512GB
	Graphic Chipset	Intel® HD Graphics
Input / Output	Serial Ports	1 x COM (RS422 optional)
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDMI Port	1 x HDMI Port
	Audio Card	Realtek ALG662 Line-Out/MIC IN
	LAN	2 x 10/100/1000Mbps Ethernet
	WIFI	Built-in, 802.11a/b/g/h (optional)
Panel	Cell Type/Glass Surface	TFT LCD
	Aspect Ratio/Size	11.6”
	Active Area/Pixel Pitch	256.125(H) x 144(V)/ 0.1875mm
	Native Resolution/Colors	1366x768/262K
	Brightness/Contrast	400nits/800:1
	Response Time	25ms
	Viewing Angle(Typical)	85/85/85/85
	Light Source	LED Backlight with 50000Hours’Lifetime
Touch Screen	Type	Projected Capacitive Touch Screen
Touch Screen	Response Time	≤5ms
Power	Input Voltage	DC 8-36V
Power	Operation/Power Saving	30W
Environment Considerations	Operating Temperature	-10~60℃
	Relative Humidity	30%~90% (non condensing)
	Anti-Vibration	5Hz-500Hz / 1Grms/3 Axis
	Anti-Shock	15G, 15ms duration
	Anti-Shock	15G, 15ms duration
Order Information	11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCT5XI3A
	11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCG1XI3A
	11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCT5XI5A
	11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCG1XI5A
	11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCT5XI7A
	11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCG1XI7A
