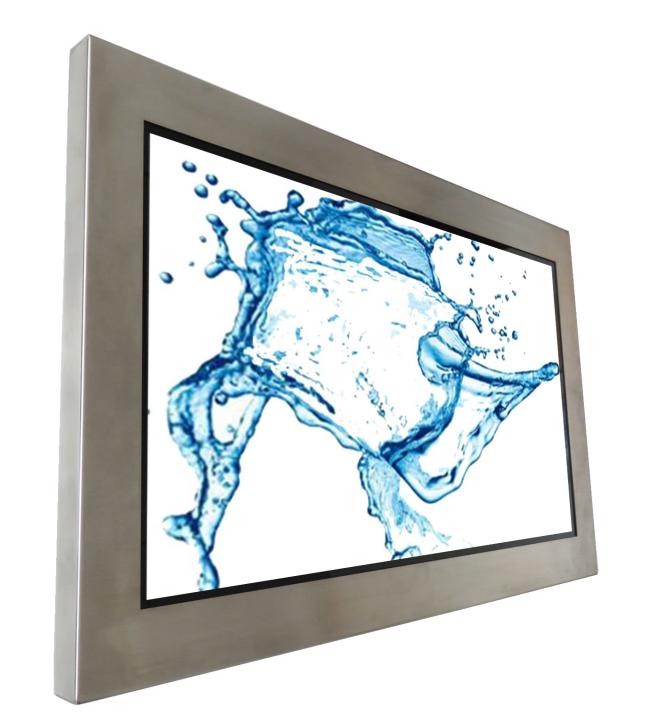

IP65 Rugged Panel PC 65 Inch Rugged 316 Stainless Steel HDMI Input For Food Industry
IP65 Panel PC 65inch rugged 316 stainless steel fully waterproof HDMI input for food industry
The ITD Full IP65/IP66 panel PCs series is an Intel® Core™ i3/i5/i7 Processor based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This waterproof PCs series has a wide range of sizes option, with complete stainless steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
FEATURES

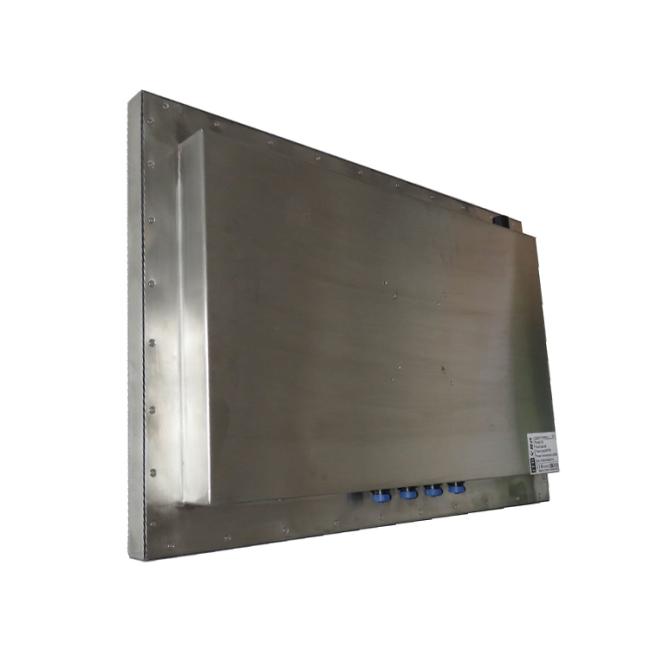

▪ Brushed stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
▪ Full IP66 and sealed with anti-corrosive rubber to providing 360 degree protection
▪ Rugged Stainless steel enclosure design with high EMC and IP65/IP66 NEMA 4/4X protection
▪ Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Provides improved power efficiency and reduced consumption
▪ CE, FCC, RoHS Compliance
OPTIONALS
•SDD 64GB,128GB up to 526GB
•HDD 500GB up to 1TB
•High brightness, sunlight readable
•Resistive touch screen, PCAP touch screen
•Customization for other inches
•Aluminum alloy housing, Steel housing
•Full IP67
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 65” 16:9 | |
| Active Area | 1428.48(H)x803.52(V)mm | |
| Pixel Pitch | 0.744(H)x0.744(W)mm | |
| Native Resolution | 1920 x 1080 | |
| Brightness | 400nits | |
| Colors | 16.7M/1.07B | |
| Brightness | 400nits | |
| Contrast Ratio | 1400:1 | |
| Response Time | 5.5ms | |
| Viewing Angle (Typical) | 89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’ Lifetime | |
| System | CPU | Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor |
| BIOS | AMI | |
| Chipset | Intel® Baytrail SOC CPU Integrated | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 64GB SSD or 500GB HDD | |
| I/O | Serial Ports | 1 x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x AC input (Waterproof Connector and Cable) | |
| LAN | 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| General | Power Input | Internal Power Supply AC 100-240V |
| Power Switch | Optional | |
| Mounting | 800 x 400mm VESA Mount | |
| Operation/Power Saving | 230W | |
| Operating Temperature | 0~50℃ | |
| Storage Temperature | -10~60℃ | |
| OS Support | Windows 7/ Windows XP/ Windows 8/Window 10// Linux | |
| Order Information | 65” Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD65PPCG1IPSJ1 | |
| 65” Stainless Steel Full IP65/IP66 Panel PC J1900 with IR Touch: ITD65PPCT2IPSJ1 | ||
| 65” Stainless Steel Full IP65/IP66 Panel PC J1900 with Touch Foil: ITD65PPCT7IPSJ1 | ||
| 65” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD65PPCG1IPAJ1 | ||
| 65” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with IR Touch: ITD65PPCT2IPAJ1 | ||
| 65” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD65PPCT5IPAJ1 | ||
| 65” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Touch Foil: ITD65PPCT5IPAJ1 | ||
| 65” Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD65PPCG1IPXJ1 | ||
| 65” Steel Full IP65/IP66 Panel PC J1900 with IR Touch: ITD65PPCT2IPXJ1 | ||
| 65” Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD65PPCT5IPXJ1 | ||
| 65” Steel Full IP65/IP66 Panel PC J1900 with Touch Foil: ITD65PPCT7IPXJ1 | ||
