High Brightness Marine Flush Mounted Rugged Panel PC Anti Shock Vibration
High Brightness Marine flush mounted panel PC with rugged aluminum alloy housing anti shock vibration
The ITD industrial touch screen flush mounted panel PC coming with high brightness industrial TFT panels series is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® i3/i5/i7 Processor with Projected Capacitive Touch (PCT or PCAP) Technology in an industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel. The Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The multi-touch flush mounted panel PC can be used in industrial processing machines, control systems, automation systems, and especially marine application.
| Model | ITD10PPCT5HBMI* | ITD12PPCT5HBMI* | ITD15PPCT5HBMI* | ITD17PPCT5HBMI* | ITD19PPCT5HBMI* | ITD21PPCT5HBMI* | ITD24PPCT5HBMI* |
| Size | 10.4” | 12.1” | 15” | 17” | 19" | 21.5" | 24" |
| Active Area(mm) | 211.2 x158.4 | 246.0x184.5 | 304.12x228.09 | 337.92x270.33 | 376.32x301.06 | 476.64x268.11 | 531.36x298.89 |
| Contrast Ratio | 500:1 | 500:1 | 700:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Resolution | 800 x 600 | 800 x 600 | 1024 x 768 | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 |
| Brightness | 300nits | 300nits | 250nits | 250nits | 250nits | 250nits | 300nits |
| Viewing Angles | 70/70/60/70 | 70/70/60/60 | 80/80/60/70 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 or 89/89/89/89 | 85/85/80/80 or 89/89/89/89 |
| Backlight | LED | LED | LED | LED | LED | LED | LED |
SPECIFICATION
| System | CPU | Intel® I3/I5/I7 Processor |
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM | |
| Chipset | Intel HD Graphics | |
| Memory | 1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 64GB SSD or 500GB HDD, max. 512GB SSD or 1TB HDD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA | |
| HDMI Port | 1 x HDMI Port | |
| Power Port | 9~36V DC Input | |
| Audio Card | Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN | |
| Environment Considerations | WIFI | Built-in, 802.11a/b/g/h (optional) |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Interface | USB or COM, default to USB | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8, Linux, Mac, Android | |
| Operation/Power Saving | TBA | |
| Operating Temperature | -10~60℃ | |
| Storage Temperature | -20~70℃ | |
| Operating Humidity | 5%~95% (non condensing) | |
| Anti-Vibration | 5Hz-500Hz / 1Grms/3 Axis | |
| Anti-Shock | 15G, 11ms duration | |
| Mechanical Mounting | Panel/Flush Mounting with IP65, VESA Brackets Mounting | |
| OS Support | Windows7/8/10, Linux | |
| Order Information | Marine Panel PC Intel i3 1000nits with Resistive Touch/ITD**PPCT1HBMI3 | |
| Marine Panel PC Intel i3 1000nits with PCAP Touch/ITD**PPCT5HBMI3 | ||
| Marine Panel PC Intel i3 1000nits with Tempered Glass/ITD**PPCG1HBMI3 | ||
| Marine Panel PC Intel i5 1000nits with Resistive Touch/ITD**PPCT1HBMI5 | ||
| Marine Panel PC Intel i5 1000nits with PCAP Touch/ITD**PPCT5HBMI5 | ||
| Marine Panel PC Intel i5 1000nits with Tempered Glass/ITD**PPCG1HBMI5 | ||
| Marine Panel PC Intel i7 1000nits with Resistive Touch/ITD**PPCT1HBMI7 | ||
| Marine Panel PC Intel i7 1000nits with PCAP Touch/ITD**PPCT5HBMI7 | ||
| Marine Panel PC Intel i7 1000nits with Tempered Glass/ITD**PPCG1HBMI7 | ||

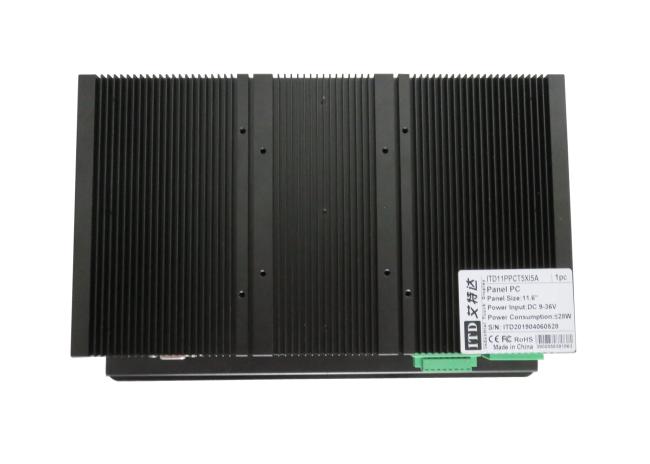

Product display
