Robust Steel Chassis Housing Digital Signage Displays Stretched Bar LCD 23" Inch
digital signage advertising player Shelf edge ultra wide screen display stretched bar LCD 23" Inch
ITD’s line of ultra-wide shelf-level digital media LCD displays provide a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.
FEATURES of Digital Signage Displays Stretched Bar LCD 23" Inch
•High contrast color TFT LCD displays
•Supports DDC 1/2B for Plug & Play compatibility
•Robust steel chassis housing for harsh environment
•Provides improved power efficiency and reduced consumption
•Ultra-wide Viewing Angle
•3rd party APK supported, CMS optional
•VESA mounting brackets included easily installed on store shelf
•LED backlight lifetime: 50000hours
•CE, FCC, RoHS Compliance
| LCD PANEL | |
| Cell Type/Glass Surface | TFT |
| Size | 23.1” |
| Active Area | 585.6(H) x 48.19(V) |
| Pixel Pitch | 0.10167x0.305mm |
| Native Resolution | 1920 x 158 |
| Colors | 1.07G |
| Brightness | 500nits |
| Contrast | 3000:1 |
| Response Time | 9.5ms |
| Field Frequency | 60Hz |
| Viewing Angle(Typical) | 89/89/89/89 |
| Light Source | LED backlight with 50000hours’lifetime |
| SYSTEM | |
| CPU | ARM Cortex-A53 Quad Core |
| DDR | 1GByte LPDDR3 Max. 2GByte |
| eMMC | 8GB/16GB EMMC Max. 32GByte |
| WIFI | 2.4G IEEE 802.11a/b/g/n |
| TF Card Slot | 1 x PUSH-PUSH TF Card Slot Max. 32GByte |
| USB | 1 x Micro USB |
| Voltage Input | DC 12V |
| Power Port | Type C |
| Operating System | Android 8.1 |
| Video Formats Supported |
AVI, MOV, MKV, MP4, M4V, FLV, 3GP, 3G2, 3GPP, MPG, H.265(HEVC) 4K2K@30fps, 1080P@30fps), H.264(BP/MP/HP level 4.1, 1080p@30fps), H.263(profile 3,1080p@30fps), MPEG-1 (MP, 1920X1080@30fps), MPEG-2 (MP, 1920X1080@30fps), MPEG-4 (ASP, 1920X1080@30fps), Xvid (Home theater 1920X1080@60fps), MJPEG (baseline, 1920X1080@60fps), Divx (3.11, 1280x720@60fp) |
| Image Format Supported | JPG/BMP/PNG/GIF/JPEG, etc. |
| ENVIRONMENTAL CONDITION | |
| Power Consumption | Operation/Power Saving | 20W | ||
| Operating Temperature | 0℃-50℃ | |||
| Storage Temperature | -10℃-60℃ | |||
| Relatively Humidity | 5~85% (Non-Condensing) | |||
| WEIGHT | ||||
| Gross Weight | 1.5KG |
| Net Weight | 1.4KG |

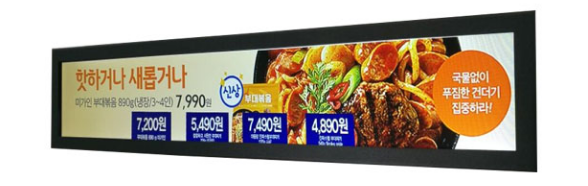

Product Display of Stretched Bar LCD
