Rack Mount 15W 400nits 15.6in Touch Screen Monitor
15.6 inch rack mount touch screen monitor for 19" rack
ITD 15.6” ITD156RMN101 Rack-mount LCD monitor provides industrial or commercial users with crystal clear picture quality. The all metal enclosures and brushed aluminum front bezel are rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.
FEATURES
•High contrast color TFT LCD display supports resolution up to 1920 x 1080
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Robust design with aluminum NEMA 4/ IP65 front panel
•All steel construction designed for harsh and industrial environments
•CE, FCC, RoHS Compliance
OPTIONALS
•Anti-Glare / Anti-Reflective tempered glass
•Touch sensor technologies: resistive,IR,PCAP
•Sunlight readable, light sensor
•AV, DVI,HMDI inputs
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 15.6” 16:9 | |
| Active Area/Pixel Pitch | 344.16mm(W)×193.59mm(H)/ 0.17925(H)×0.17925(V)mm | |
| Native Resolution/Colors | 1366 x 768(1920 x 1080 optional) /16.7M | |
| Brightness/Contrast | 400nits/800:1 | |
| Response Time | 30ms | |
| Viewing Angle(Typical) | 80/80/80/65 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input Signals | VGA | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving/Bellow 15W | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment (Right/Left) | |
| Order Information | 15.6”Rack Mount Monitor with 5 wires resistive touch/ITD156RMT101 | |
| 15.6”Rack Mount Monitor with PCAP touch/ITD156RMT501 | ||
| 15.6”Rack Mount Monitor with tempered glass/ITD156RMG101 | ||
| 15.6” FHD Rack Mount Monitor with 5 wires resistive touch/ITD156RMT1HR01 | ||
| 15.6” FHD Rack Mount Monitor with PCAP touch/ITD156RMT5HR01 | ||
| 15.6” FHD Rack Mount Monitor with tempered glass/ITD156RMG1HR01 | ||

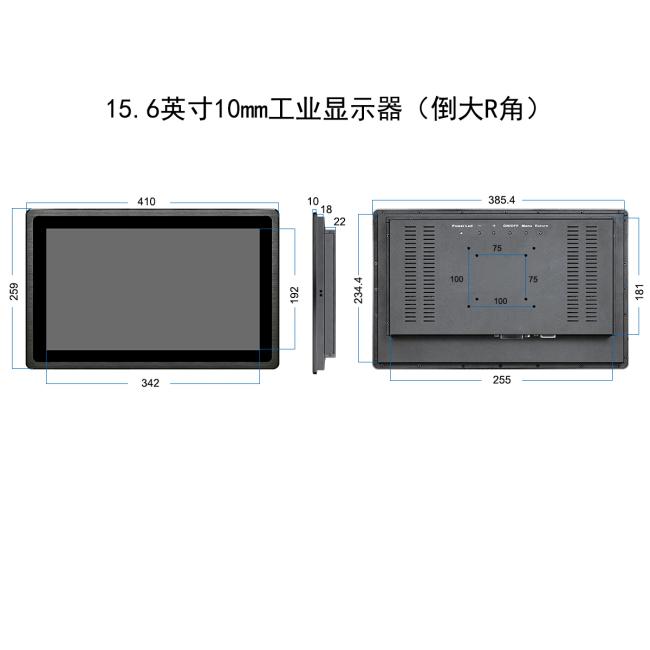

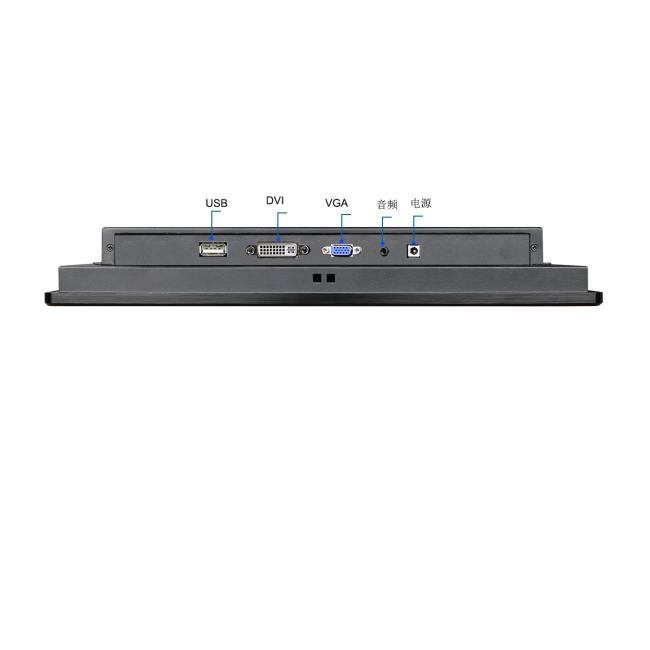

Product Image
