15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry
15 inch IP65 panel PC stainless steel 316 saltwater resistance for food industry
The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
FEATURES
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Intel J1900, Intel i3/i5/i7 up to 19th gen.
•316 stainless steel, saltwater resistance
•RFID/NFC/QR/Finger reader optional
•CE, FCC, RoHS Compliance
Specifications
OPTIONALS
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding, IP67 |
| • Resistive, IR, PCAP touch screen, AR/AG tempered glass | • WIFI, 3G, 4G, Bluetooth |
| • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc. | • Stainless Steel, Aluminum Alloy |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15”/4:3 | |
| Active Area/ Pixel Pitch | 304.13(W) x 228.10(H)mm/0.297 × 0.297mm | |
| Native Resolution/ Colors | 1024 x 768/16.2M | |
| Brightness/ Contrast | 250cd/㎡/700:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional
| Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |

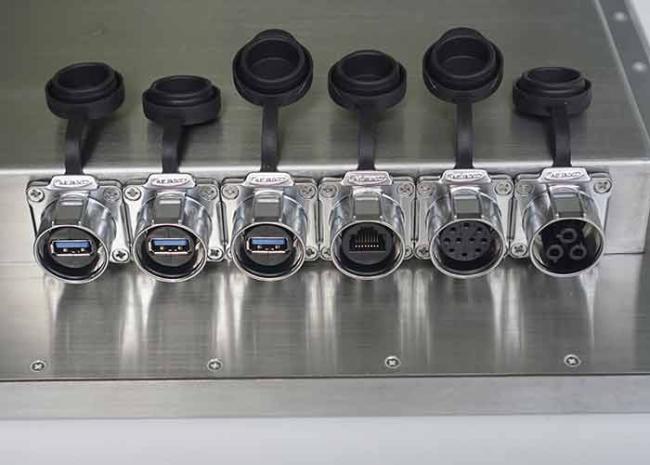

| Default Waterproof I/O | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 20-50W | |
| Environment Considerations | Operating Temperature | -10~60℃(-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD15PPCG1IP*E1 | |
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD15PPCT1IP*E1 | ||
| 15” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD15PPCT5IP*E1 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD15PPCG1IP*J1 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD15PPCT1IP*J1 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD15PPCT5IP*J1 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD15PPCG1IP*I3 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD15PPCT1IP*I3 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD15PPCT5IP*I3 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD15PPCG1IP*I5 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD15PPCT1IP*I5 | ||
| 15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD15PPCT5IP*I5 | ||

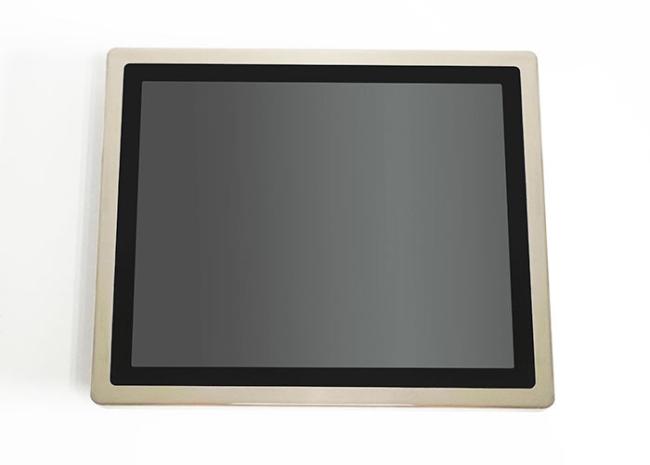

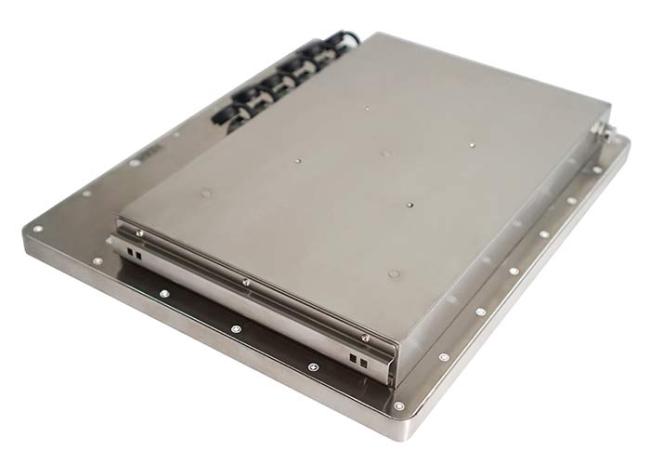

Product Display
