Weatherproof Dual Outdoor LCD Display Kiosk 1500 Nits Waterproof Advertising Screen
Dual Screen Kiosk High Brightness Lcd Digital Signage Waterproof Outdoor Advertising Display
ITD outdoor all weatherproof wall-mounted digital signage display boasts a range of unique features perfect for outdoor digital signage with high brightness, protective glass, IP65 verified, tamperproof, commercial grade, temperature control and choice of media players including single SD card and USB port plug and play media player, ARM based player and x86 based player integrated. The ITD outdoor digital signage displays are fitted with commercial grade panels providing them with a wide viewing angle, improved color, contrast and brightness as well as the ability to be used 24 hours a day. With an eco-friendly power timer you can be assured of their green credentials and low operating costs. The ITD outdoor display also has an ambient light sensor that will automatically alter the screens brightness based on the displays surrounding light levels leaving the screen with the best clarity whilst also conserving energy. Anti-reflective/ anti-glare tempered glass also comes as standard. ITD outdoor digital signage can display message in heat, cold, rain, snow and dust empowering to always present a dynamic and vibrant message.
Specifications:
|
Outdoor Wall-Mounted Digital Signage LCD Display
|
|||
| Model Name | ITD55CMAIPL**** | ||
| IP Rating | IP65 | ||
|
Single Media Player Option
|
|||
|
1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS |
|||
|
PC Systems Options
|
|||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
|
LCD Panel
|
|||
| Screen Diagonal (Inch/cm) | 55” | ||
| Display Active Screen Size (cm) | 1209.6(H)×680.4(V) | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920×1080 | ||
| Maximum Resolution Supported | 1920×1080 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 1500 cd/m² | ||
| Contrast Ratio | 3000:1 | ||
| View Angels | 89/89/89/89 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | ||
|
Touch Panel Available for Network Version
|
|||
| Touch Options | IR, PCAP, Touch Foil | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Operation
|
|||
| Operating Temperature Range | -20~55°C(Fan-Cooling); -40~55°C (Air Condition Built-in) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power /Speakers
|
|||
| Power Indicator | Green LED | ||
| Power Input | Internal Power Supply, AC 100V~240V | ||
|
Power Consumption Speakers |
290W 2×5W |
||
|
Order Information
|
|||
| 55”Outdoor Free Standing Single DS with Aircon, AG Glass | ITD55CMAIPLG3A1 | ||
| 55”Outdoor Free Standing Single DS with Fan-Cooling, AG Glass | ITD55CMFIPLG3A1 | ||
| 55”Outdoor Free Standing Android DS with Aircon, AG Glass | ITD55CMAIPLG3E1 | ||
| 55”Outdoor Free Standing Android DS with Fan-Cooling, AG Glass | ITD55CMFIPLG3E1 | ||
| 55”Outdoor Free Standing Windows J1900 DS with Aircon, AG Glass | ITD55CMAIPLG3J1 | ||
| 55”Outdoor Free Standing Windows J1900 DS with Fan-Cooling, AG Glass | ITD55CMFIPLG3J1 | ||
| 55”Outdoor Free Standing Windows i3 DS with Aircon, AG Glass | ITD55CMAIPLG3I3 | ||
| 55”Outdoor Free Standing Windows i3 DS with Fan-Cooling, AG Glass | ITD55CMFIPLG3I3 | ||
| 55”Outdoor Free Standing Android DS with Aircon, Touch Foil | ITD55CMAIPLT7E1 | ||
| 55”Outdoor Free Standing Android DS with Fan-Cooling, Touch Foil | ITD55CMFIPLT7E1 | ||
| 55”Outdoor Free Standing Windows J1900 DS with Aircon, Touch Foil | ITD55CMAIPLT7J1 | ||
| 55”Outdoor Free Standing Windows J1900 DS with Fan-Cooling, Touch Foil | ITD55CMFIPLT7J1 | ||
| 55”Outdoor Free Standing Windows i3 DS with Aircon, Touch Foil | ITD55CMAIPLT7I3 | ||
| 55”Outdoor Free Standing Windows i3 DS with Fan-Cooling, Touch Foil | ITD55CMFIPLT7I3 | ||
BENEFITES
- Exceptional quality and commercial-grade outdoor reliability and performance
- Eco-friendly, Energy-Efficient LED Backlight Technology
- Designed with robust, corrosion protected casing to protect against the elements and the public
- IP65 rated protecting from any wet weather conditions and waterproof over-molded connectors
- High brightness from 1500nits to 2500nits allowing effortless legibility in direct sunlight
- AR/AG Tempered glass fitted on front for vandal proof and optimum clarity
- Ultra wide operation temperature range -25℃~55℃ or -45℃~55℃ supported
- Equipped with internal air-conditioning or fan-cooling system ensuring a long and reliable lifespan
- Landscape and Portrait mode wall-mounted flexibility
- Pre-installed CMS management system for network version
- Long lasting product cycle for continuity thru all phases of project

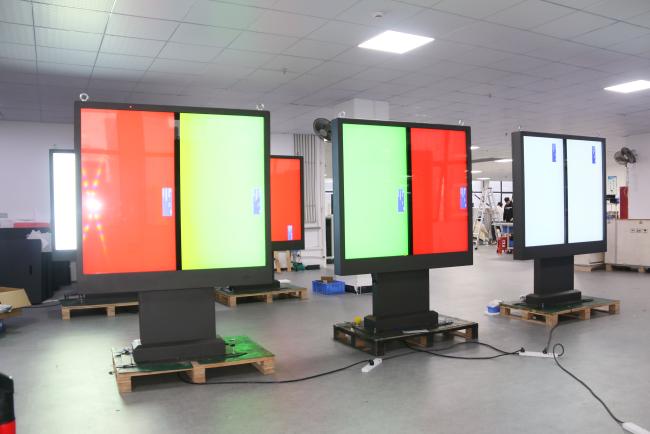

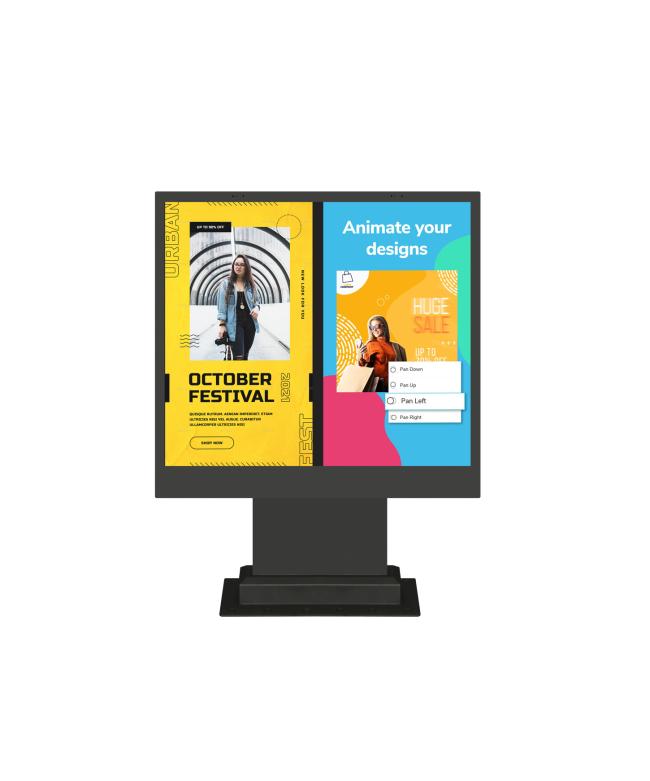

Product Display:
APPLICATION
