IP69K Waterproof Stainless Steel Panel PC Rugged HMI For Automation Food Industry
7 to 65 inch Rugged IP69K waterproof stainless steel panel PC HMI for automation food industry
Description of Stainless Steel Panel PC
The ITD Full IP65/IP66 panel PCs series is an Intel® Core™ i3/i5/i7 Processor based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This waterproof PCs series has a wide range of sizes option, with complete stainless steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
Specifications of Rugged PC:
| Model | ITD10PPCG1IPSI* | ITD12PPCG1IPSI* | ITD15PPCG1IPSI* | ITD17PPCG1IPSI* | ITD19PPCG1IPSI* | ITD21PPCG1IPSI* |
| Size | 10.4” (4:3) | 12.1”(4:3) | 15” (4:3) | 17” (4:3) | 19” (4:3) | 21.5” (16:9) |
| Active Area | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) | 211.2(W) x 158.4(H) | 337.92(H) x 270.33(V) | 376.32(H) x 301.06(V) | 476.64(H)x248.25(V) |
| Contrast Ratio | 500:1 | 500:1 | 700:1 | 1000:1 | 1000:1 | 1000:1 |
| Resolution | 800x600 or 1024x768 | 800x600 or 1024x768 | 1024 x 768 | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 |
| Brightness | 300nits | 300nits | 300nits | 250nits | 250nits | 250nits |
| Viewing Angles | 70/70/60/70 | 70/70/60/60 | 80/80/60/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Backlight | LED | LED | LED | LED | LED | LED |
SPECIFICATION
| System | CPU | Intel® Core i3/i5/i7 Processor |
| BIOS | UEFI | |
| Chipset | Intel® HD Graphics (By CPU); Shared Memory | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |
| I/O | Serial Ports | 1 x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable); DC9-36V input optional | |
| LAN | 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Interface | USB or COM, default to USB | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| General | Power Input | DC 12V, DC 9-36, AC100-240V input optional |
| Power Switch | Included | |
| Mounting Option |
75 x 75/100 x 100mm VESA Mount Panel Mounting optional |
|
| Operating Temperature | -10~60℃(-20~70℃ Optional) | |
| Storage Temperature | -20~70℃ | |
| Order Information | Stainless Steel Full IP65/IP66 Panel PC i3 with Tempered Glass: ITD**PPCG1IPSI3 | |
| Stainless Steel Full IP65/IP66 Panel PC i3 with Resistive Touch: ITD**PPCT1IPSI3 | ||
| Stainless Steel Full IP65/IP66 Panel PC i3 with PCAP Touch: ITD**PPCT5IPSI3 | ||
| Stainless Steel Full IP65/IP66 Panel PC i5 with Tempered Glass: ITD**PPCG1IPSI5 | ||
| Stainless Steel Full IP65/IP66 Panel PC i5 with Resistive Touch: ITD**PPCT1IPSI5 | ||
| Stainless Steel Full IP65/IP66 Panel PC i5 with PCAP Touch: ITD**PPCT5IPSI5 | ||
| Stainless Steel Full IP65/IP66 Panel PC i7 with Tempered Glass: ITD**PPCG1IPSI7 | ||
| Stainless Steel Full IP65/IP66 Panel PC i7 with Resistive Touch: ITD**PPCT1IPSI7 | ||
| Stainless Steel Full IP65/IP66 Panel PC i7 with PCAP Touch: ITD**PPCT5IPSI7 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC i3 with Tempered Glass: ITD**PPCG1IPAI3 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC i3 with Resistive Touch: ITD**PPCT1IPAI3 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC i3 with PCAP Touch: ITD**PPCT5IPAI3 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC i5 with Tempered Glass: ITD**PPCG1IPAI5 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC i5 with Resistive Touch: ITD**PPCT1IPAI5 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC i5 with Tempered Glass: ITD**PPCG1IPAI3 | ||
| Steel Full IP65/IP66 Panel PC i3 with Tempered Glass: ITD**PPCG1IPXI3 | ||
| Steel Full IP65/IP66 Panel PC i3 with Resistive Touch: ITD**PPCT1IPXI3 | ||
| Steel Full IP65/IP66 Panel PC i3 with PCAP Touch: ITD**PPCT5IPXI3 | ||
| Steel Full IP65/IP66 Panel PC i5 with Resistive Touch: ITD**PPCT1IPXI5 | ||
| Steel Full IP65/IP66 Panel PC i5 with PCAP Touch: ITD**PPCT5IPXI5 | ||

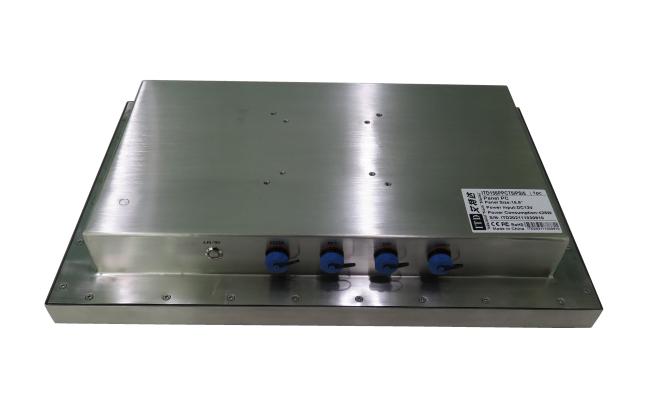

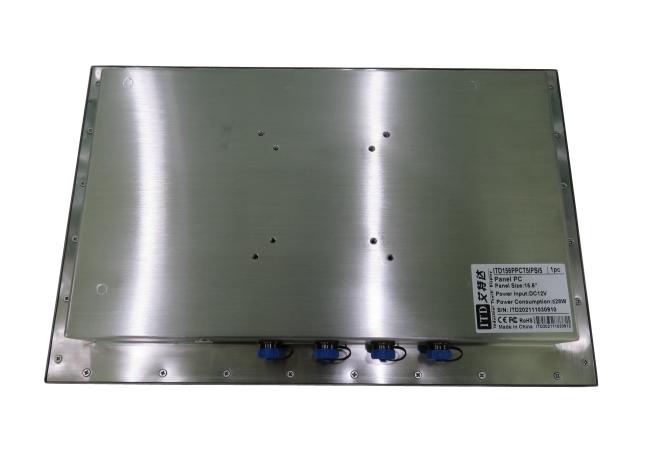

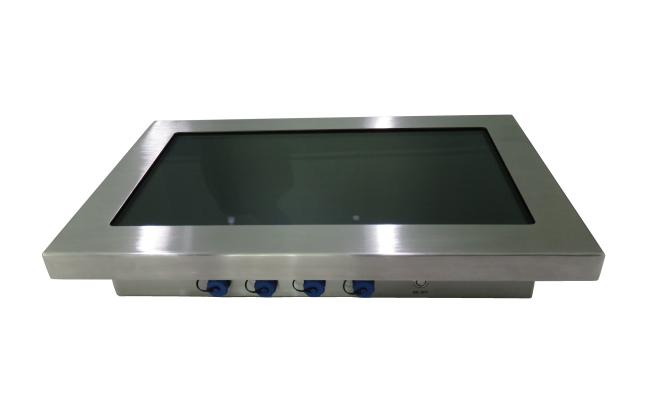

Product Image
