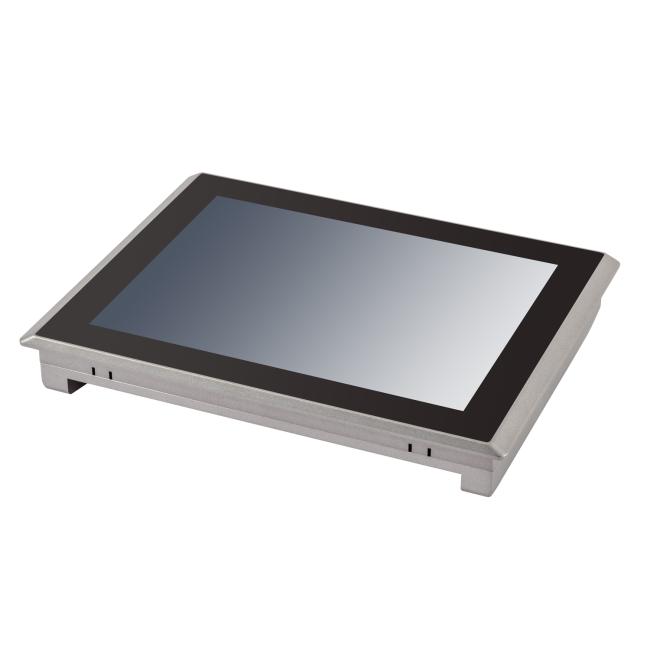

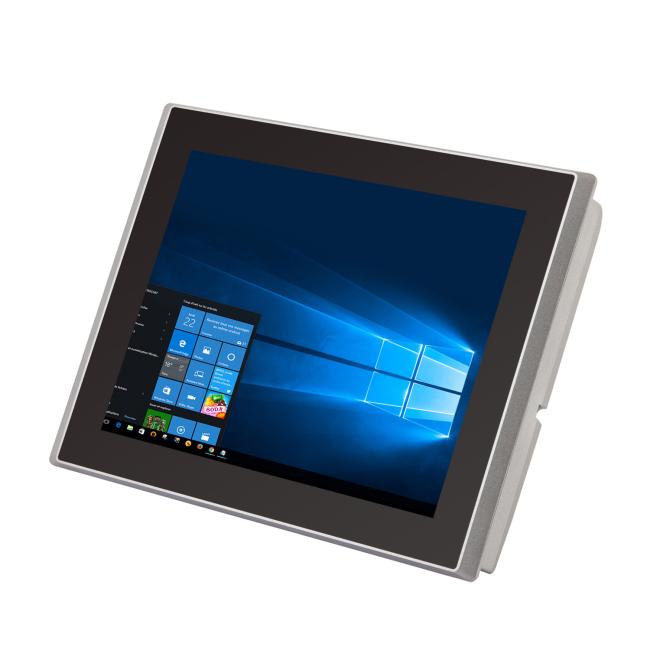

Windows 11 Fanless Industrial Panel PC Touch Screen 12.1" 500nits Front IP65
Price:
TBA
MOQ:
1PCS
Delivery Time:
5-10 Business Days
Brand:
ITD/OEM
Product Description
fanless industrial pc touch screen 12.1" 500nits Windows 11
Features of Windows 11 panel pc
- Onboard Intel® Celeron J4125/J6412 or 8th/10th intel Core i5/i7
- Flat surface with easy-to-clean
- Die-Casting Aluminum Housing with Fanless Operation
- IP65 Front Bezel
- Dual LAN support
- Wide DC Support 9 ~ 36V
Applications of fanless panel PC
- Automation
- Transportation&Logistics
- Robots
- IoT
- Marine
- Fitness clubs
| Processor | lntel Celeron J4125/J6412 CPU lntel Core 8/10/11代-U i5/i7 CPU |
| System Memory | J4125/J6412: DDR4 SODIMM x1 Core i5/i7: DDR4 SODIMM x2 |
| Ethernet | 2x 2.5 GbE R J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V) |

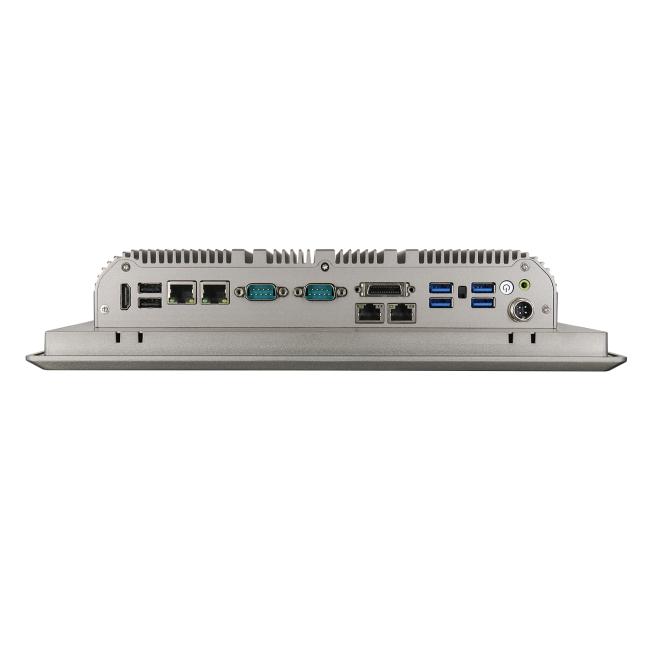

| I/O Port |
4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 1 x Audio Line-out 2 x 8Ω 1W Audio AM P out (Optional) 1 x AT/ATX switch 1 x HDMI 1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO, |
| Storage Disk Driver | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5'' SATA ) 1 x M.2 2280 NVME |
| Expansion Slot | M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth |
| Watchdog timer | 1~655 35S |
| OS support | Windows® 10/11, WES 10, LINUX |
| Construction | Aluminum |
| Mounting | VESA 75/ 100 Panel mount |
| Operating TMP | -20°C ~ 60 °C |
| Storage TMP | - 30°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| DC Input | DC 9 ~ 36V 4-pin M12 connector |
| Display Type | 12.1" TFT-LCD |
| Max.Resolution | 1024*768( Optional 800x 600 ) |
| Max.Colors | 16.2M |
| Luminance | 500 cd/m² |
| Viewing Angle(CR>=10) | -8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V ) |
| Back Light MTBF (hours | 50000H |
