19" Fanless Panel PC IP65 Rated Aluminum Housing RS232 RS422 RS485 5G Supported
Price:
TBA
MOQ:
1PCS
Delivery Time:
5-10 Business Days
Brand:
ITD/OEM
Product Description
fanless panel pc 19" IP65 rated with RS232/422/485 5G supported
Features of fanless panel PC
- Onboard powerful lntel Core 8/10/11 gen. -U i5/i7 CPU
- 4G, 5G, Bluetooth and WIFI optional
- Die-Casting Aluminum Housing with Fanless Operation
- IP65 Front Bezel
- 2 x DB-9 COM1&COM2,RS-232/422/485
- Wide DC Support 9 ~ 36V
- High brightnesss optional
- Multi touch capacitive or resistive touch
Applications of IP65 panel PC
- Automation
- Transportation&Logistics
- Robots
- IoT
- Marine
- Fitness clubs
- Warehouse&Logistics
- Healthcare
- Government
- Smart charging station
- Gas Station
- Amusement Park
- Outdoor Kiosks
| Processor | lntel Celeron J4125/J6412 CPU lntel Core 8/10/11代-U i5/i7 CPU |
| System Memory | J4125/J6412: DDR4 SODIMM x1 Core i5/i7: DDR4 SODIMM x2 |
| Ethernet | 2x 2.5 GbE R J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V) |
| I/O Port |
4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 1 x Audio Line-out 2 x 8Ω 1W Audio AM P out (Optional) 1 x AT/ATX switch 1 x HDMI 1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO, |
| Storage Disk Driver | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5'' SATA ) 1 x M.2 2280 NVME |
| Expansion Slot | M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth |
| Watchdog timer | 1~655 35S |
| OS support | Windows® 10/11, WES 10, LINUX |
| Construction | Aluminum |
| Mounting | VESA 75/ 100 Panel mount |
| Operating TMP | -20°C ~ 60 °C |
| Storage TMP | - 30°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| DC Input | DC 9 ~ 36V 4-pin M12 connector |
| Display Type | 19" TFT-LCD |
| Max.Resolution | 1280*1024 |
| Max.Colors | 16.7M |
| Luminance | 350 cd/m² |
| Viewing Angle(CR>=10) | -8 5 ~ 8 5 ° ( H) , - 8 0 ~ 8 0 ° ( V ) |
| Back Light MTBF (hours | 50000H |

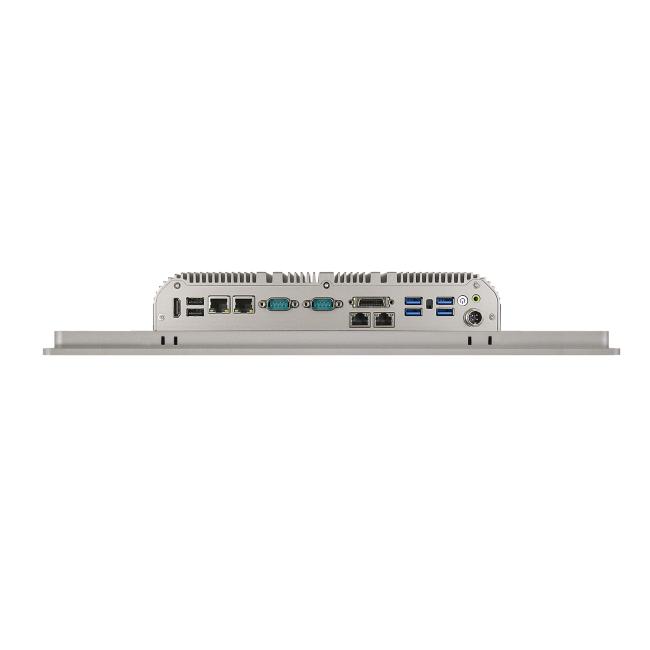

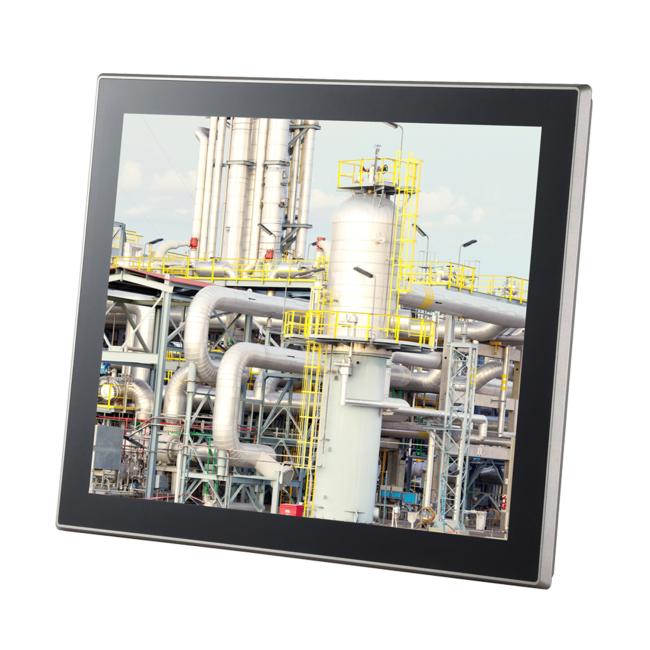

Photos of 19inch IP65 fanless panel PC
