RoHS Dia. 1-50mm Optical Glass Laser Line Powell Prism
Price:
negotiable
MOQ:
100pcs
Delivery Time:
7 days
Brand:
UNIFORM
Product Description
Dia. 1~50mm Optical Glass Laser Line Powell Prism
These Laser Line Generator Lenses, also known as Powell lenses, generate a straight, uniform laser line by fanning out a collimated beam in one dimension, as shown in the diagram above. The apex of each lens features an aspheric curve that evenly distributes the optical power, resulting in an intensity variation of less than 25% over the center portion of the line. You will get more even energy distribution along the laser line than using the rod lenses and lenses.
Specifications
Material (Substrate) H-K9L ( N-BK7 ), H-ZF7LA ( N-SF6 )
Diameter φ6,φ9 +0/-0.05 mm (or customized)
Height 6.5~8.5mm+/-0.05 mm (or customized)
Fan Angle 8°~110° +/-3% deg
Energy Uniformity <20% (central 80% of line.)
Straightness of line <0.1%
Apex Offset <0.02mm
Wavelength Range 400nm-1100nm
Clear Aperture ≥90%
Input Beam Size Dia. 0.5-5mm
Scratch and Dig (S/D) 60/40 40/20
Coating Uncoated, AR, BBAR, Reflective
RoHS Compliant

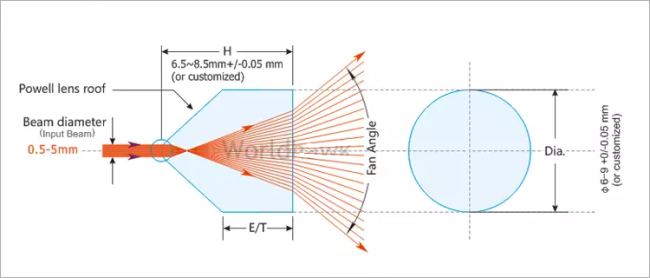

Technical Drawings

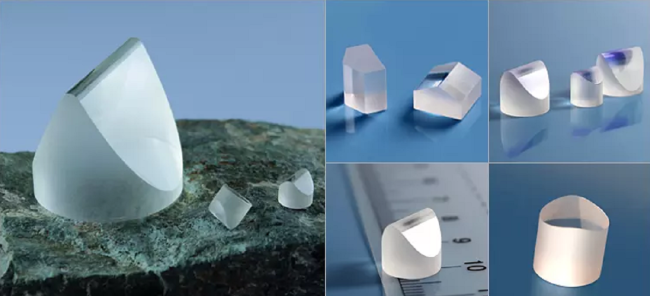

Different Powell Lenses
